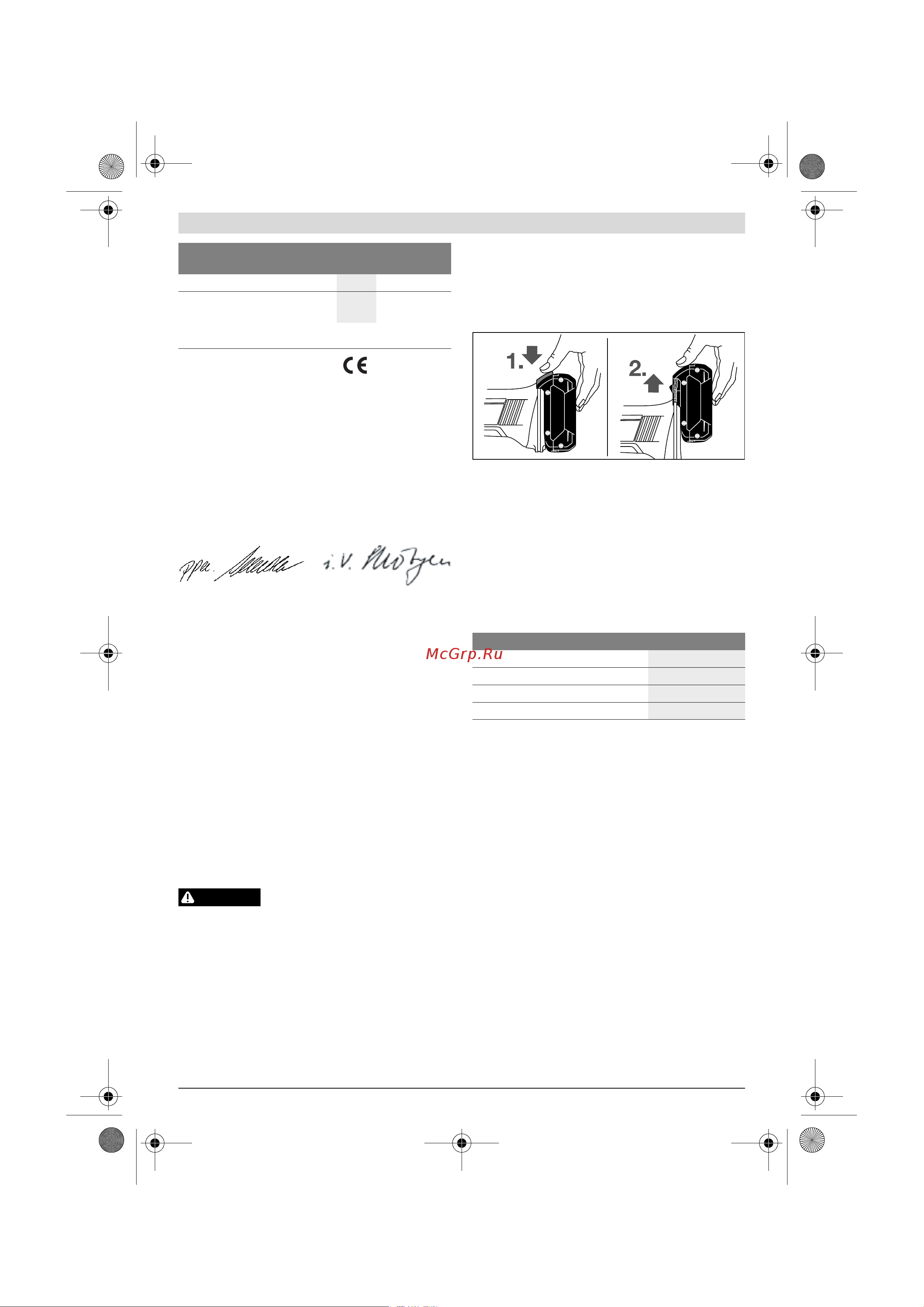

14 | English

3 609 929 C07 | (19.5.11) Bosch Power Tools

Declaration of Conformity

We declare under our sole responsibility that the product de-

scribed under “Technical Data” is in conformity with the fol-

lowing standards or standardization documents: EN 60745

according to the provisions of the directives 2004/108/EC,

2006/42/EC.

Technical file at:

Robert Bosch GmbH, Postfach 10 01 56,

D-70745 Leinfelden-Echterdingen

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

04.04.2011

Assembly

Battery Charging

f Use only the battery chargers listed on the accessories

page. Only these battery chargers are matched to the lith-

ium ion battery of your power tool.

Note: The battery is supplied partially charged. To ensure full

capacity of the battery, completely charge the battery in the

battery charger before using your power tool for the first time.

The lithium-ion battery can be charged at any time without re-

ducing its service life. Interrupting the charging procedure

does not damage the battery.

The lithium-ion battery is protected against deep discharging

by the “Electronic Cell Protection (ECP)”. When the battery is

empty, the machine is switched off by means of a protective

circuit: The inserted tool no longer rotates.

Do not continue to press the On/Off

switch after the machine has been au-

tomatically switched off. The battery can be damaged.

The battery is equipped with a NTC temperature control

which allows charging only within a temperature range of be-

tween 0 °C and 45 °C. A long battery service life is achieved

in this manner.

Observe the notes for disposal.

Removing the Battery

The battery 7 is equipped with two locking levels that should

prevent the battery from falling out when pushing the battery

unlocking button 6 unintentionally. As long as the battery is

inserted in the power tool, it is held in position by means of a

spring.

To remove the battery 7, press the battery unlocking button 6

and pull the battery upward out of the power tool. Do not ex-

ert any force.

Battery Charge-control Indication (only for 3,0 Ah bat-

tery) (see figure A)

The three green LEDs of the battery charge-control indicator

10 indicate the charge condition of the battery 7. For safety

reasons, it is only possible to check the status of the charge

condition when the machine is at a standstill.

Press button 9 to indicate the charge condition. This is also

possible when the battery 7 is removed.

When no LED lights up after pushing button 9, then the bat-

tery is defective and must be replaced.

Mounting the Grinding Tools (see figure B)

f Before any work on the machine itself (e. g. mainte-

nance, tool change, etc.) as well as during transport

and storage, remove the battery from the power tool.

There is danger of injury when unintentionally actuating

the On/Off switch.

f Only use properly fitting and undamaged open-end

spanners (see “Technical Data”).

– Clean the grinder spindle 3 and all parts to be mounted.

– Hold the grinder spindle 3 with open-end spanner 11 by

the spanner flats.

Loosen the clamping nut 2 with open-end spanner 12 by

applying it to the spanner flats and turning in anticlockwise

direction.

– Insert the clamping shaft of the grinding tool to the stop in-

to the collet chuck 1.

– Hold the grinder spindle 3 firmly with open-end spanner

11 and clamp the tool bit with open-end spanner 12 by the

spanner flats, turning in clockwise direction.

Grinding tool diameter, max.

mm 50

Weight according to

EPTA-Procedure 01/2003 kg 1.8

Dr. Egbert Schneider

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

Straight grinder GGS 18 V-LI

Professional

Please observe the article number on the type plate of your machine.

The trade names of the individual machines may vary.

WARNING

LED Capacity

Continuous lighting 3 x green

≥ 2/3

Continuous lighting 2 x green

≥ 1/3

Continuous lighting 1 x green

<1/3

Flashing light 1 x green

Reserve

OBJ_BUCH-1461-001.book Page 14 Thursday, May 19, 2011 4:57 PM
