Sven MS-311 Glamour [17/20] Multimedia speaker system

Power

cord

Right speaker

INPUT

LEFT

RIGHT

OUTPUT

~220V/50Hz

Audio cable

Left speaker

DVD

Player

RCA to mini-jack

adapter

Mini-jack to mini-jack

signal cable

Mini-jack to mini-jack

signal cable

Notes:

• Sound quality is directly affected by correctness and reliability of the connection of

cables. We recommend that you use the cables included in the package contents of the

MSS. Usually, the right channel is marked in red, and the left channel is marked in white.

• To connect the MSS to a CD/DVD player or TV, use the mini-jack to mini-jack signal cable

with the RCA to mini-jack adapter (included).

• Adjust the VOLUME knob d on the subwoofer to its minimum, then connect the subwoofer to

a mains outlet via the built-in power cord i.

• Switch on the subwoofer with the POWER switch a. Then turn on your audio source and adjust

the subwoofer volume level with the VOLUME knob d, the bass and treble levels with BASS b and

TREBLE c knobs respectively.

• After using the MSS, mind to shift the POWER switch a into the OFF position, and unplug the power

cord.

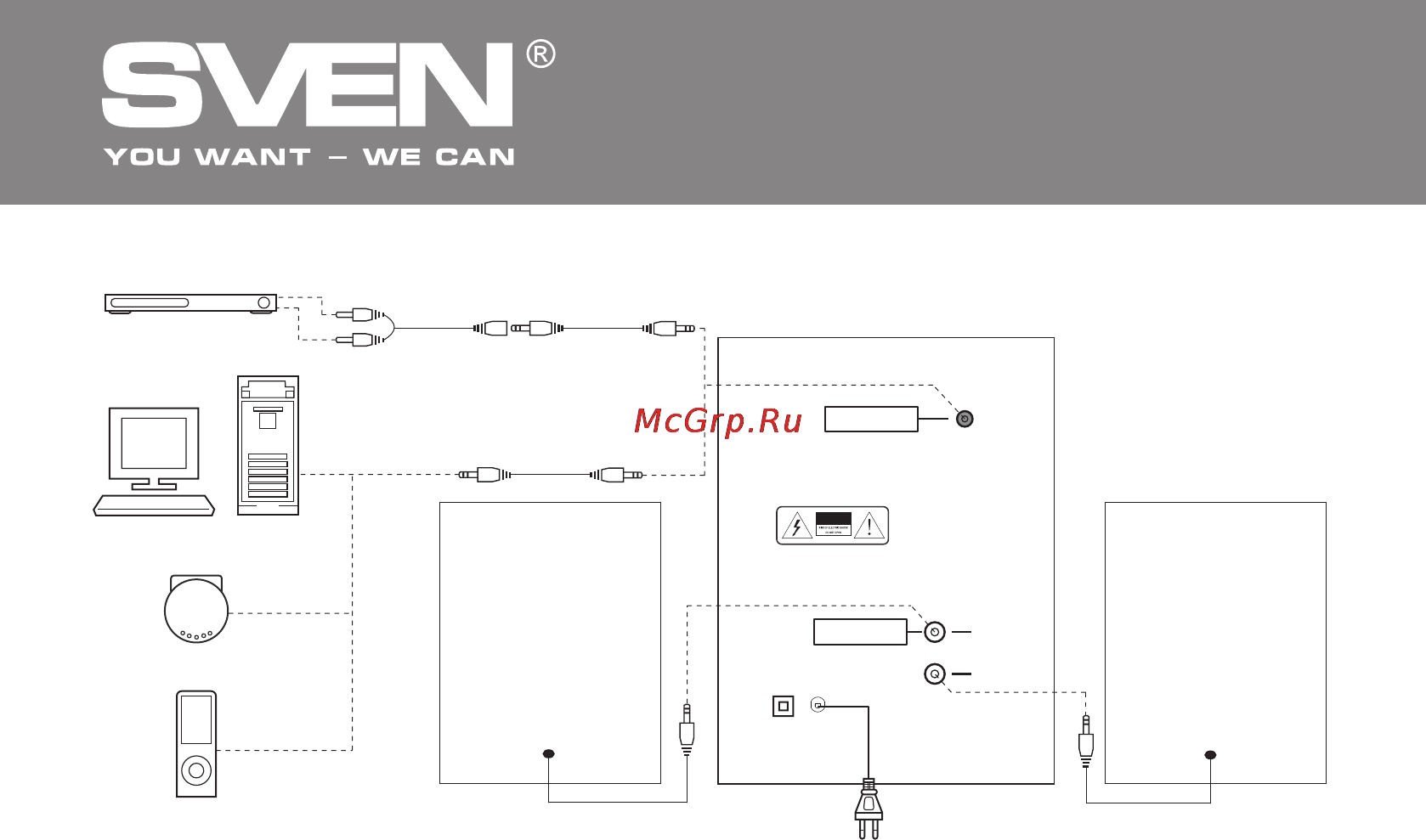

Fig. 3. Connection diagram
