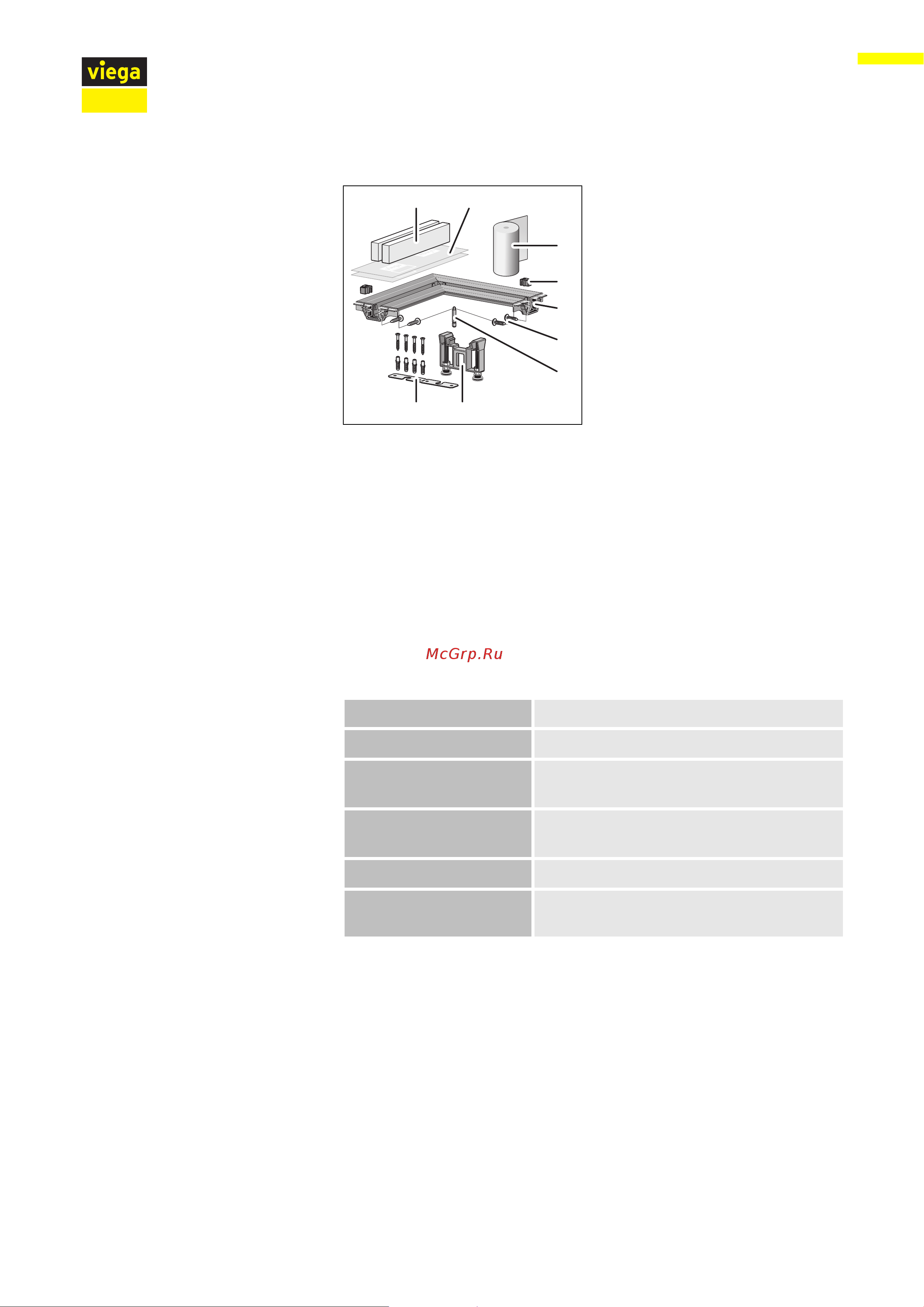

Fig. 9: connection piece 90°, scope of delivery

1 protective insert made of hard foam

2 protective foil

3 sealing tape

4 spacer

5 connection piece 90°

6 screws

7 Allen key size 4

8 foot, height-adjustable

9 fixing material

2.3.3 Technical data

Nominal width [DN] 40 / 50

Material Base unit made of plastic

Drainage capacity

Chapter 2.2.3 „Drainage capacity“

on page 9

Dimensions and installa‐

tion height

Chapter 3.1.3 „Installation dimen‐

sions“ on page 20

Water seal level 50 mm

Load max. 120 kg load per standing grate

bracket

2.3.4 Sound protection

The measured sound level during water drainage is 19 dB(A). For infor‐

mation on sound protection requirements met, see

„Regulations from

section: Sound protection“ on page 8.

Product information

Advantix Vario base unit, for Advantix Vario shower channel, can be cut to length continuously 15 from 50
