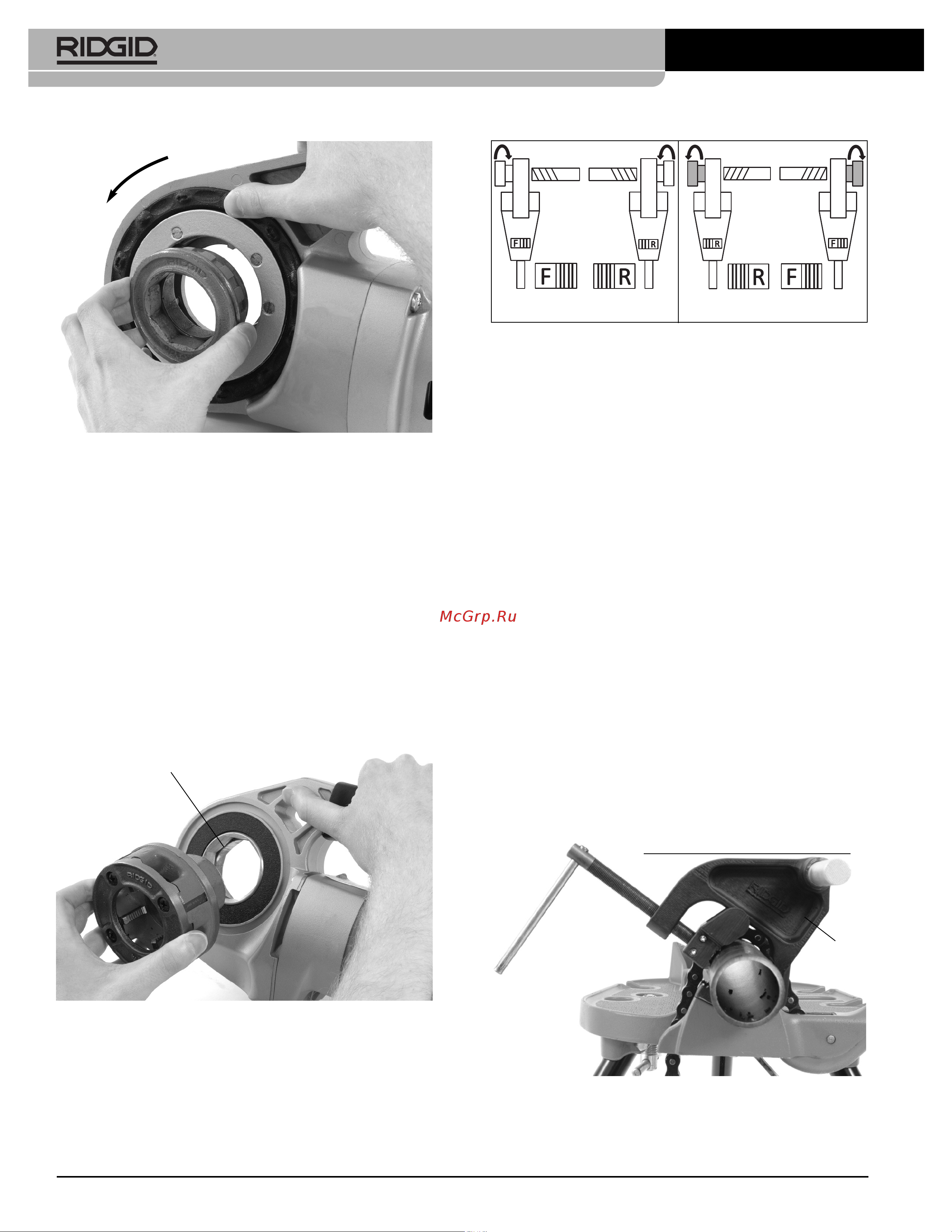

Figure 10 – Slide Switch/Die Head Orientation

8. Make sure that pipe to be threaded is stable and

secured to prevent tipping during use. Use appropri-

ate pipe stands to support pipe length.

9. Check the level of RIDGID Thread Cutting Oil in the

RIDGID 418 oiler. Remove the chip tray and confirm

that the filter screen is clean and fully submerged in

oil. Replace or add oil if necessary. Place the 418

Oiler bucket under the pipe end to be threaded.

Resisting Threading Forces

Using the supplied support arm:

a. Always use the supplied support arm (601 or 602

support arm for 600-I, 691 or 692 support arm for

690-I) unless it can’t be used because of space or

other constraints. The support arm clamps to the

pipe and helps to resist the threading forces.

b. Position the support arm on pipe, so end of support

arm aligns with end of pipe and top of support

arm is horizontal (Figure 11). This properly places

the support arm for threading and prevents thread-

ing oil from entering the motor (Figure 12).

c. Make sure that the support arm jaws are squarely

aligned with the pipe and securely tighten the sup-

port arm.

Figure 11A – Positioning the Support Arm

Figure 8 – Installing Adapter Into 690-I

6. Installing 1

" and smaller Die Heads:

a. Make sure the ON/OFF switch is released and

power drive unplugged from the outlet.

b. If needed install the adapter in the 690-I (Figure 8).

c. Squarely insert the octagonal end of the 11-R Die

Head into the power drive until secured by the

spring ring. On the 600-I, the die head can be

inserted into either side of the power drive. With the

690-I, die heads can only be inserted from the

adapter side.

d. To remove, pull die head from power drive. If

needed, use a soft face hammer or a block of

wood to tap the die head out. Do not pound on the

die head, this can damage the tool.

Figure 9 – Installing Die Heads into 600-I Power Drive

7. Position the power drive F/R Slide Switch for the

desired right or left hand thread. See Figure 10.

999-999-476.09_REV. F

600-I/690-I Power Drives

Right Hand Thread

Left Hand Thread

600-I

Only

600-I

Only

Horizontal

Support

Arm

RH RH LH LH

OPEN

Spring Ring
