999-999-476.09_REV. F

• Clear, level, stable, dry location for all equipment

nd operator.

• Good ventilation. Do not use extensively in small,

nclosed areas.

• Properly wired electrical outlet of the correct voltage.

If in doubt, have outlet inspected by a licensed elec-

trician.

• Clear path to electrical outlet that does not contain

any potential sources of damage for the power cord.

2. Inspect the pipe to be threaded and associated fittings

and confirm that the selected power drive is a correct

tool for the job. See Specifications. Do not use to

thread anything other than straight stock.

Equipment for other applications can be found in the

Ridge Tool catalog, online at RIDGID.com or by call-

ing Ridge Tool Technical Service in the U.S. and

Canada at (800) 519-3456.

3. Make sure equipment to be used has been properly

inspected.

4. Properly prepare the pipe as needed. Make sure the

pipe is squarely cut and deburred. Pipe cut at an

angle can damage the dies while threading or cause

difficulty engaging the die head.

Installing Die Heads

5. Installing 1

" or 2" Die Head or Adapter in 690-I:

a. Make sure ON/OFF switch is released and power

drive is unplugged.

b. Rotate the drive ring counter-clockwise to open

the retaining mechanism. Fully insert the die head

or adapter (if required) spline end into the power

drive (Figure 7).

c. Release the drive ring and confirm that the die

head/adapter is secure.

d. Reverse process to remove.

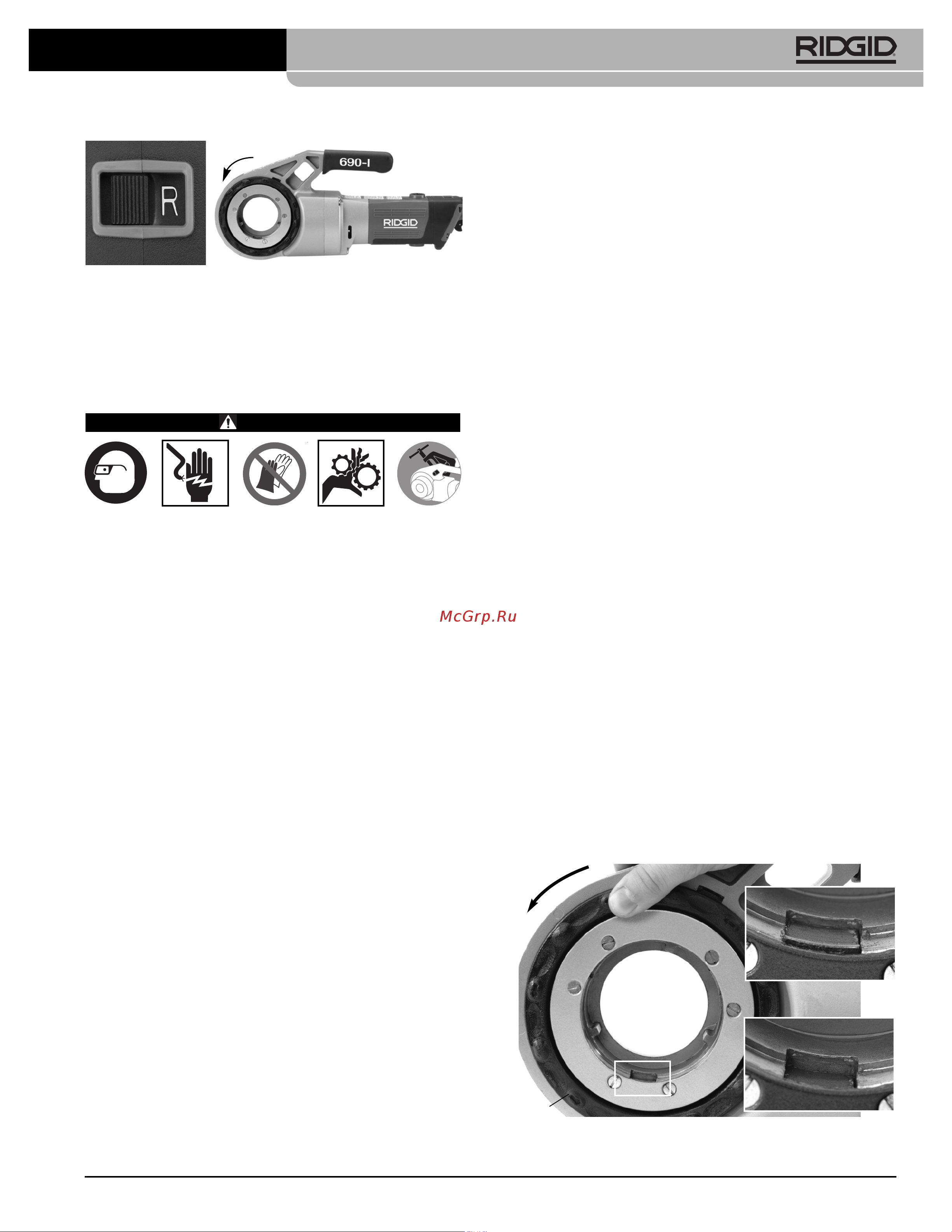

Figure 7 – Retaining Mechanism, Drive Ring in the

Open/Closed Position

igure 6B – R (REVERSE) (Counter-Clockwise) Switch

osition

7. Release the ON/OFF switch and with dry hands

unplug the machine.

Set-Up and Operation

WARNING

Set up and operate the power drive according to

these procedures to reduce the risk of injury from

electric shock, entanglement, striking, crushing and

other causes, and to help prevent power drive dam-

age.

Use an appropriate support device per these instruc-

tions. Sup port devices im prove control and reduce

the risk of striking, crushing, and/or other injuries.

When using a support device other than the supplied

support arm, the support device must react against

the gear housing or fan housing. Support devices

contacting the motor housing or handle may damage

these parts or increase the risk of injury.

Always firmly hold the power drive when threading

or backing die head off the pipe to resist use forces,

regardless of support device use. This will reduce

the risk of striking, crushing and other injuries.

Do not wear gloves or loose clothing. Keep sleeves

and jackets buttoned. Loose clothing can become

entangled in rotating parts and cause crushing and

striking injuries.

Properly support pipe. This will reduce the risk of

falling pipe, tipping and serious injury.

Do not use a power drive without a properly oper-

ating ON/OFF switch and F/R slide switch.

One person must control both the work process

and the ON/OFF switch. Do not operate with more

than one person. In case of entanglement, the oper-

ator must be in control of the ON/OFF switch.

1. Check work area for:

• Adequate lighting.

• Flammable liquids, vapors or dust that may ignite.

If present, do not work in area until sources have

been identified and corrected. The power drives are

not explosion proof and can cause sparks.

00-I/690-I Power Drives

Open

Closed

OPEN

Drive

Ring
