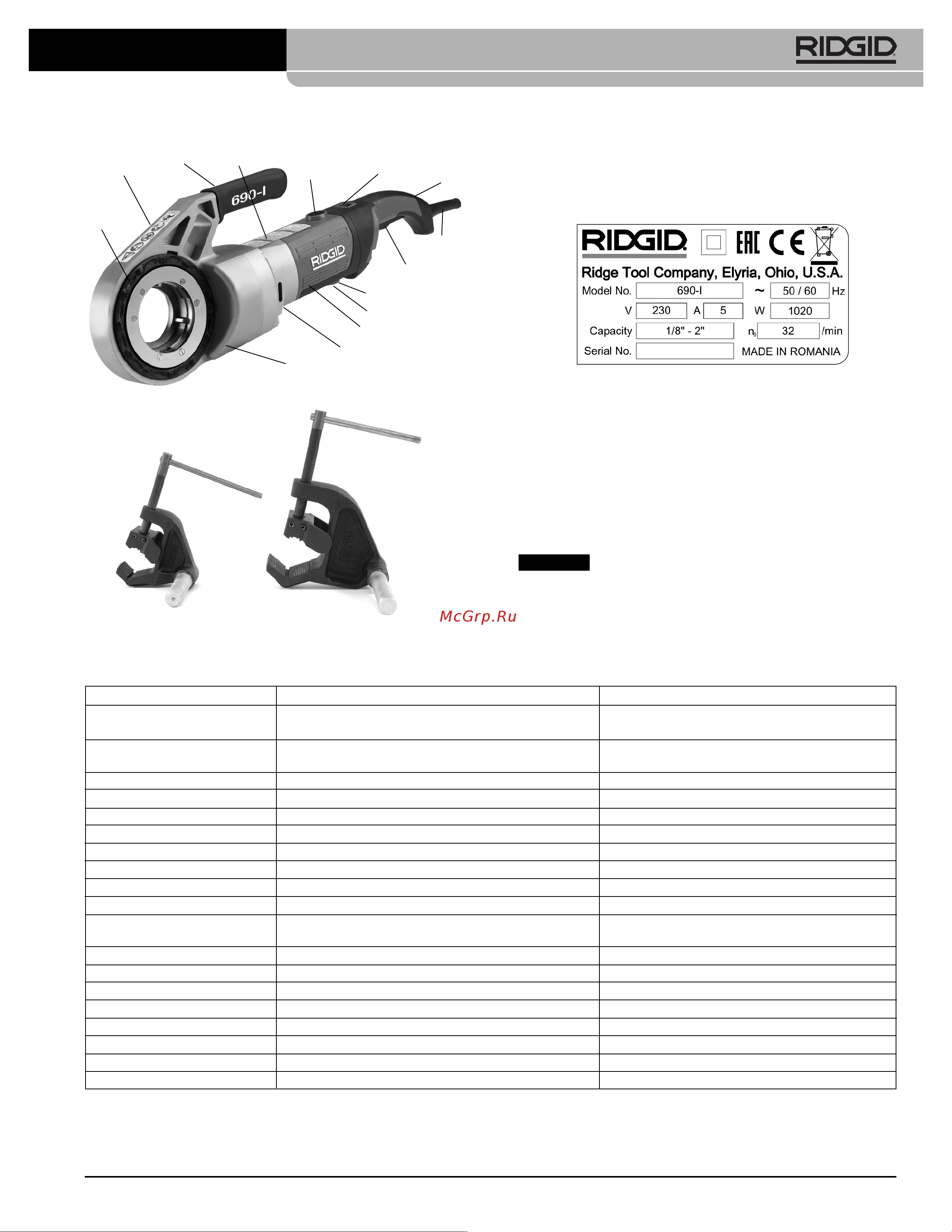

600-I Power Drive and 690-I Power Drive machine serial
number plate is located on the bottom of motor housing.
T
he last 4 digits of the serial number indicate the month
and year of the manufacture (MMYY).
Figure 4 – Machine Serial Number
Standard Equipment
The Model 600-I/690-I Power Drives come with the fol-
lowing items:
• Power Drive
• 690-I Adapter (690-I only)
• Operator’s Manual
Selection of appropriate materials and instal-
lation, joining and forming methods is the responsibility of
the system designer and/or installer. Selection of improp-
er materials and methods could cause system failure.
Stainless steel and other corrosion resistant materials
can be contaminated during installation, joining and form-
Figure 2 – Model 690-I Power Drive
Figure 3 – 602/692 Support Arms
999-999-476.09_REV. F
5
6
00-I/690-I Power Drives
NOTICE
Parameter 600-I Power Drive 690-I Power Drive
Pipe Threading Capacity
1
/
8
to 1
1
/
4
inch
1
/
8
to 2 inch
(3 to 32 mm) (3 to 50 mm)
Die Head Holding Ring Spring Retaining Mechanism (1
1
/
2
– 2 inch)
Ring Spring (
1
/
8
– 1
1
/
4
inch)
LH Threads Yes Yes
Support Arm No. 602, No. 601 No. 692, No. 691
Adapter Not Required. Used with
1
/
8
" through 1
1
/
4
" Die Heads.
Motor Type Universal Motor, Single Phase Universal Motor, Single Phase
Watts 1270 (120V), 1020 (220-240V) 1270 (120V), 1020 (220-240V)
Voltage/Phase Available 120V/1PH, 220-240V/1PH 120V/1PH, 220-240V/1PH
Amps 12A (120V), 5A (220-240V) 12A (120V), 5A (220-240V)
Operating Speed (RPM) 36 (120V), 32 (220-240V) 36 (120V), 32 (220-240V)
Controls Forward/Reverse Slide Switch Forward/Reverse Slide Switch
ON/OFF two-step momentary contact switch ON/OFF two-step momentary contact switch
Gear Head Die Cast Aluminum Permanently Greased Die Cast Aluminum Permanently Greased
Length 20 inch (508 mm) 24.13 inch (613 mm)
Width 3.75 inch (95 mm) 4.75 inch (121 mm)
Height 7.5 inch (191 mm) 8 inch (203 mm)
Weight 12.65 lbs (5.7 kg) 21.15 lbs (9.6 kg)
Sound Pressure (L
PA
)* 83 dB(A), K=3 83 dB(A), K=3
Sound Power (L
WA
)* 94 dB(A), K=3 94 dB(A), K=3
Vibration* < 2.5 m/s
2
, K=1.5 < 2.5 m/s
2
, K=1.5
Specifications
C
ord
H
andle
F/R
Switch
Warning
Label (120V)
B
rush
C
ap
D
rive
R
ing
H
andle
W
arning
L
abel (All)
Motor
S
erial Plate
Fan Housing
G
ear Housing
B
rush Cap
O
N/OFF
S
witch
* Sound and Vibration measurements are measured in accordance with a standardized test per Standard IEC62841-1.
- Vibration levels may be used for comparison with other tools and for preliminary assessment of exposure.
- Sound and vibration emissions may vary due to your location and specific use of these tools.
- Daily exposure levels for sound and vibration need to be evaluated for each application and appropriate safety measures taken when needed. Evaluation of exposure
levels should consider the time a tool is switched off and not in use. This may significantly reduce the exposure level over the total working period.
