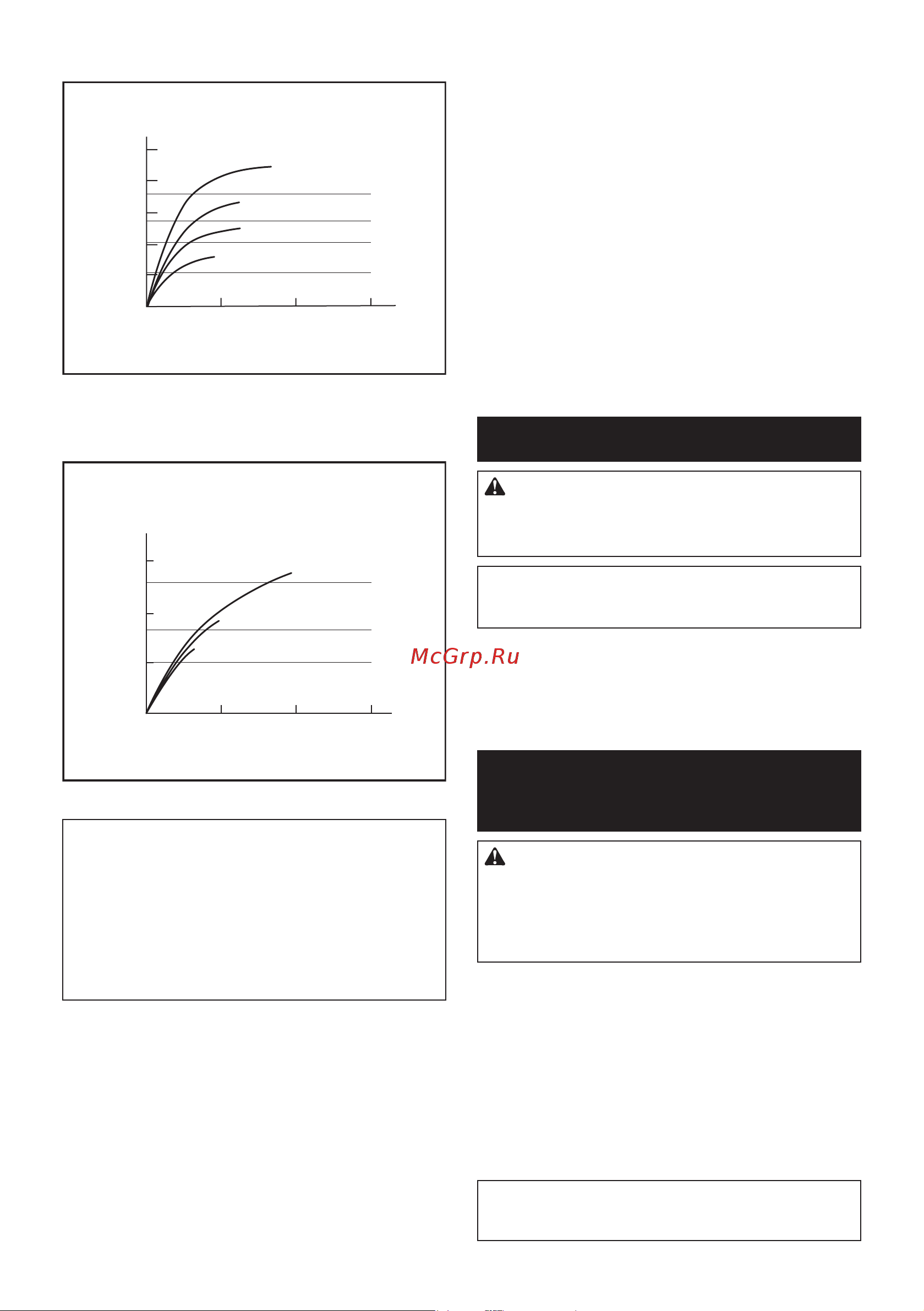

14 ENGLISH

Proper fastening torque for standard bolt with max

impact mode (4)

(5100)

(4080)

(3060)

(2040)

(1020)

500

400

300

200

100

(kgf•cm)

N•m

M20

M16

M20

M24

M16

M22

M24

1. Fastening time (second) 2. Fastening torque

Proper fastening torque for high tensile bolt with

max impact mode (4)

(kgf•cm)

N•m

231

M12

M14

M16

M12

M14

M16

(3060)

(2040)

(1020)

300

200

100

1. Fastening time (second) 2. Fastening torque

NOTE: Hold the tool pointed straight at the bolt or nut.

NOTE: Excessive fastening torque may damage the

bolt/nutorimpactsocket.Beforestartingyourjob,

always perform a test operation to determine the

proper fastening time for your bolt or nut.

NOTE: If the tool is operated continuously until the

battery cartridge has discharged, allow the tool to rest

for 15 minutes before proceeding with a fresh battery

cartridge.

Thefasteningtorqueisa󰀨ectedbyawidevarietyof

factors including the following. After fastening, always

check the torque with a torque wrench.

1. When the battery cartridge is discharged almost

completely, voltage will drop and the fastening

torque will be reduced.

2. Impact socket

• Failure to use the correct size impact socket

will cause a reduction in the fastening torque.

• A worn impact socket (wear on the hex end

or square end) will cause a reduction in the

fastening torque.

3. Bolt

• Eventhoughthetorquecoe󰀩cientandthe

class of bolt are the same, the proper fasten-

ingtorquewilldi󰀨eraccordingtothediame-

ter of bolt.

• Even though the diameters of bolts are the

same,theproperfasteningtorquewilldi󰀨er

accordingtothetorquecoe󰀩cient,theclass

of bolt and the bolt length.

4. Theuseoftheuniversaljointortheextension

bar somewhat reduces the fastening force of the

impact wrench. Compensate by fastening for a

longer period of time.

5. The manner of holding the tool or the material

ofdrivingpositiontobefastenedwilla󰀨ectthe

torque.

6. Operating the tool at low speed will cause a reduc-

tion in the fastening torque.

MAINTENANCE

CAUTION: Always be sure that the tool is

switched o󰀨 and the battery cartridge is removed

before attempting to perform inspection or

maintenance.

NOTICE: Never use gasoline, benzine, thinner,

alcohol or the like. Discoloration, deformation or

cracks may result.

To maintain product SAFETY and RELIABILITY,

repairs,anyothermaintenanceoradjustmentshould

be performed by Makita Authorized or Factory Service

Centers, always using Makita replacement parts.

OPTIONAL

ACCESSORIES

CAUTION: These accessories or attachments

are recommended for use with your Makita tool

specied in this manual. The use of any other

accessories or attachments might present a risk of

injurytopersons.Onlyuseaccessoryorattachment

for its stated purpose.

If you need any assistance for more details regard-

ing these accessories, ask your local Makita Service

Center.

• Impact socket

• Extension bar

• Universaljoint

• Pin 4 Set (For TW008G only)

• Socket extension

• Extension handle

• Makita genuine battery and charger

NOTE: Some items in the list may be included in the

tool package as standard accessories. They may

di󰀨erfromcountrytocountry.
