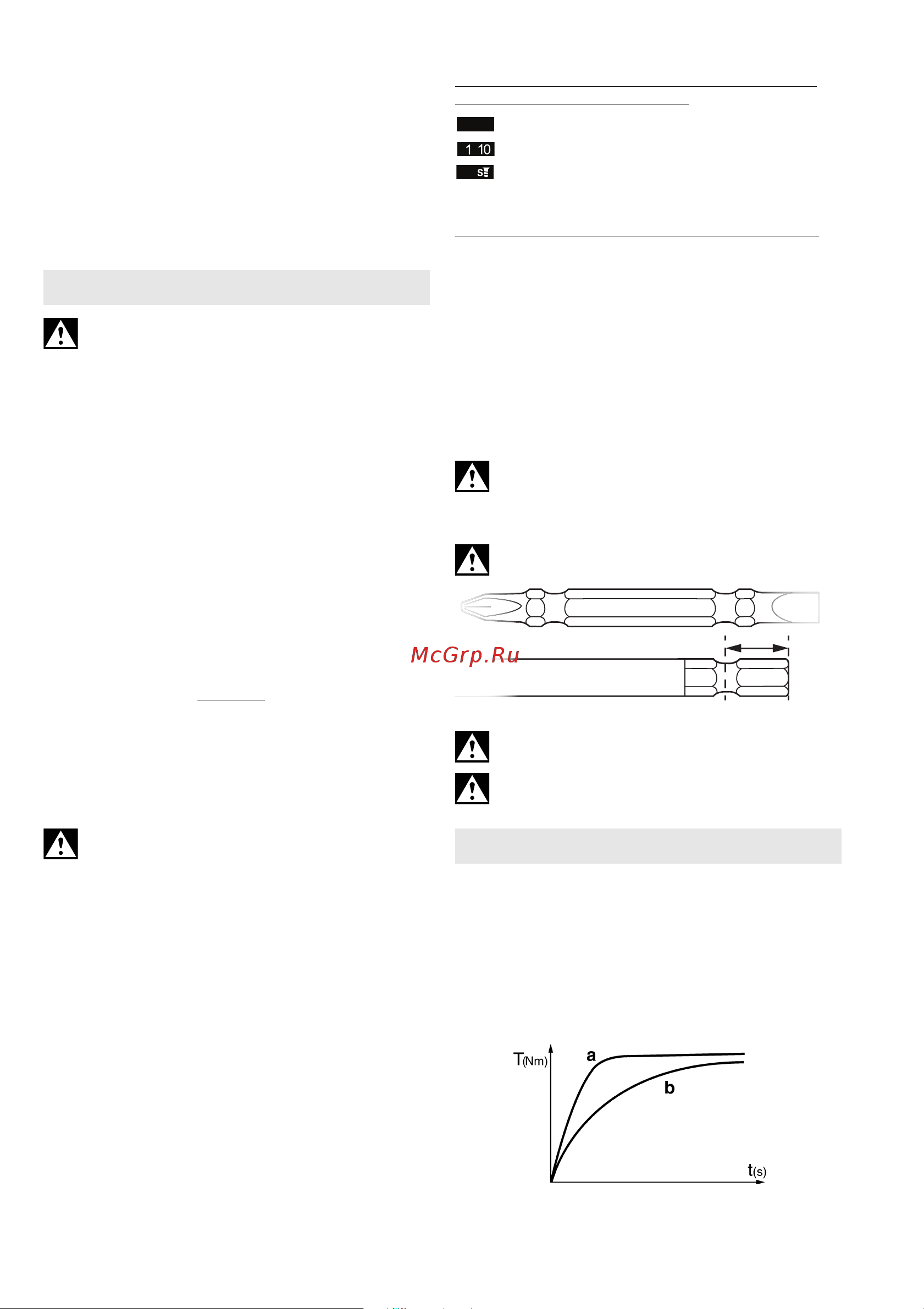

ENGLISH en

7 Setting wheel for preselecting rotational speed

and tightening torque

8 Battery pack *

9 Battery pack release button

10 Capacity indicator button *

11 Capacity and signal indicator *

12 Belt hook (attach as shown) *

* depending on the features / model

Remove the battery pack from the machine

before any adjustment or maintenance is

carried out. Before fitting the battery pack, make

sure that the machine is switched off.

6.1 Battery pack

Charge the battery pack before use (8).

If performance diminishes, recharge the battery

pack.

The ideal storage temperature is between 10°C and

30°C.

"Li-Power, LiHD" li-ion battery packs have a

capacity and signal indicator: (11)

- Press the button (10), the LEDs indicate the

charge level.

- If one LED is flashing, the battery pack is almost

flat and must be recharged.

Removal:

Press the battery pack release (9) button and pull

the battery pack (8) forwards

Inserting:

Slide in the battery pack (8) until it engages.

6.2 Setting the direction of rotation, engag-

ing the transporting safety device

(switch-on lock)

Do not actuate the rotation selector switch or

engage the transportation lock (3) unless the

motor has stopped completely!

Actuate the rotation selector switch / Engage the

transportation lock (3)

R = Right rotation set

(insert screws)

L = Left rotation set

(remove screws)

0 = Central position: transportation lock setting

(switch-on lock)

6.3 Switching on and off

Switching on: press the trigger switch (4).

Switching off: release the trigger switch (4).

6.4 Speed / tightening torque

The speed and tightening torque are connected

directly. The lower the speed, the lower the

tightening torque.

The tightening torque is influenced in two ways:

1) Preselect operating mode/desired

tightening

torque at the setting wheel (7):

= max. tightening torque (power mode)

= adjustable tightening torque

= especially for self-cutting screws: at the

beginning high speed (for drilling) and later low

speed (for tightening the screw).

2) Stepless adjustment of the tightening torque:

The speed and tightening torque can be adjusted

steplessly in any position of the setting wheel by

pressing the trigger (4) firmly or lightly, thus

adapting to working conditions.

Recommendation: determine the correct setting

by carrying out trial screwdriving.

6.5

Changing screwdriving bit

for

SSD...

Inserting screwdriving bit: Slide locking sleeve

(2) forward and insert screwdriving bit as far as the

stop. Release locking sleeve (2).

Pull on the screwdriver bit to check that it is

correctly seated.

Removing screwdriving bit: Slide locking sleeve

(2) forward and remove screwdriving bit.

Only use screwdriving bits with such plug-in

ends:

The screwdriving bit used must match the

screw.

Damaged screwdriving bits must not be used.

Mount the machine on the screw, ensuring it is

aligned straight.

The screwdriving process has two elements:

inserting the screw and

tightening the screw with the percussion mech-

anism.

The tightening torque depends on the impact dura-

tion.

With an impact duration of approx. 5 seconds, the

maximum tightening torque has been reached.

6. Initial Operation/Setting

7. Use

9,5 mm (3/8“)
