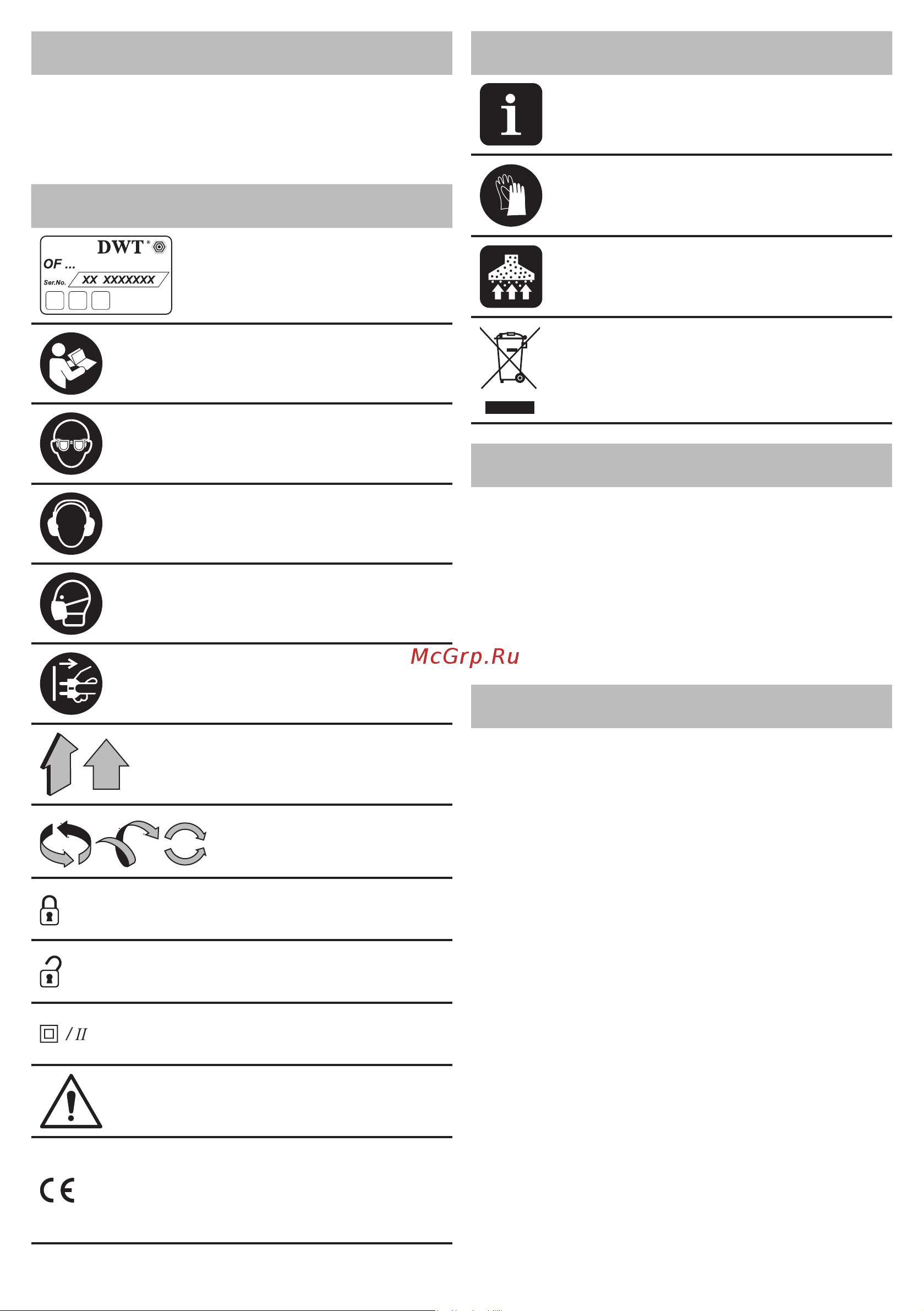

English
Symbols used in
the manual
Following symbols are used in the operation manual,
please remember their meanings� Correct interpretation
of the symbols will allow correct and safe use of the
power tool�
Symbol Meaning
Serial number sticker:
OF ��� - model;
XX - date of manufacture;
XXXXXXX - serial number�
Read all safety regulations
and instructions�
Wear safety goggles�
Wear ear protectors�
Wear a dust mask�
Disconnect the power tool
from the mains before instal-
lation or adjustment�
Movement direction�
Rotation direction�
Locked�
Unlocked�
Double insulation / protec-
tion class�
Attention� Important�
A sign certifying that the
product complies with es-
sential requirements of the
EU directives and harmo-
nized EU standards�
Symbol Meaning
Useful information�
Wear protective gloves�
During operation, remove
the accumulated dust�
Do not dispose of the power
tool in a domestic waste
container�
DWT
power tool designation
Power tools are designed for slot and hole milling as
well as for treating the edges of workpieces made from
wood-based materials, plastic, etc�
The use of special accessories also makes it possible
to perform the copy milling, to machine edges of
workpieces with a curved prole, to mill along the
workpiece edge as well as to mill circular slots (certain
accessories that enable the above listed works to be
performed are not included in the delivery set)�
1
Power tool
components
Lock-off button
2 On / off switch
3 Handle
4 Base plate
5 Wing screw
6 Ventilation slots
7 Controller for the ne adjustment of the milling
depth
8 Locking lever
9 Dust removal cover *
10 Dust removal pipe
11 Spindle lock
12 Collet clamp nut
13 Speed selector thumbwheel
14 Milling depth gauge
15 Indicator
16 Flywheel
17 Locking screw
18 Locknut
19 Adjusting screw
20 Stepped stop
21 Bush *
22 Dust extractor connecting adaptor *
23 Copy ring xing screws *
24 Guide bushing *
25 Wrench *
26 Parallel guide (assembly) *
27 Scale
