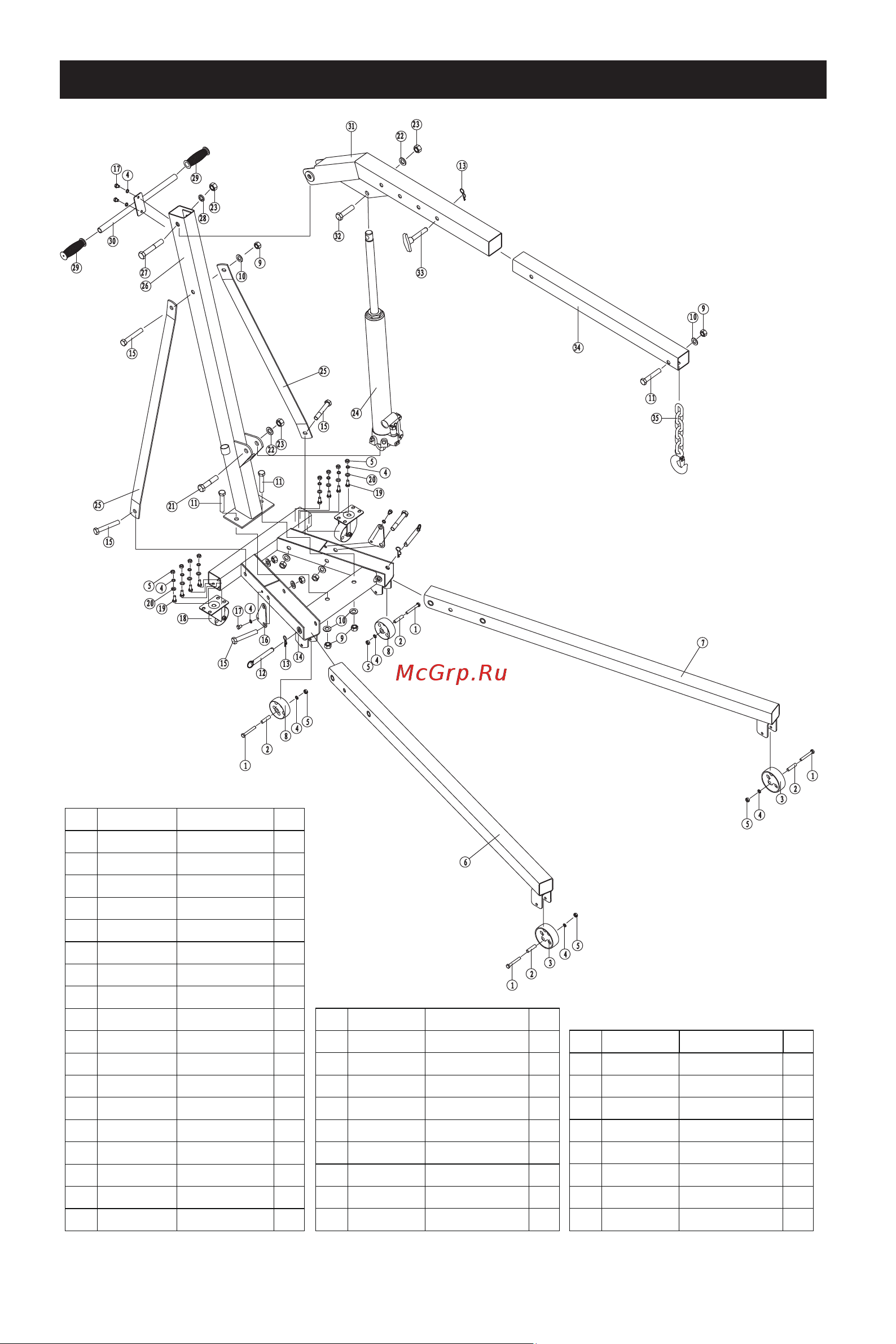

ASSEMBLY DIAGRAM

4

Ref.

Qty

Description

1 GB5782 Bolt M8x60

4

2 T31002X -4 Bushing 4

3 T31002X -5 Front wheel 2

4 GB93 Spring washer 8

16

5 GB41 N ut M8 12

6 T31002X.2 Front leg(right)

1

7 T31002X.1 Front leg(left) 1

8 T31002X -6 W heel 2

9 GB6170 N ut M14 8

10 GB95 W asher 14 8

11 GB5780 Bolt M14x80 3

12 T31002X.3 Frame pin 2

13 T32002 -1 R-pin 3

14 T31002X.4 Base assembly

1

15 GB5780 Bolt M14x90 5

16 T31002X -1 Connect plate 2

17 GB5781 Bolt M8x10 4

18 T32002.7 3”Swivel caster

2

Ref.

Qty

Description

28 GB93 Spring washer 16 1

29 T32002C -2 H andle sleeve 2

30 T31002X.6 Handle 1

31 T31002X.7 Boom 1

32 GB5780 Bolt M16x65 1

33 T31002CE.4

Pin 1

34 T31002X -3 Boom extension

1

35 T32002.5 H ook chain 1

Ref.

Qty

Description

19 GB5781 Bolt M8x20 8

20 GB95 W asher 8 8

21 GB5780 Bolt M16x75 1

22 GB95 W asher 16 2

23 GB6170 N ut M16 3

24 T30306B Ram unit 3ton 1

25 T31002X -2 Supports 2

26 T31002X.5 M ain support post

1

27 GB5780 Bolt M16x100 1
