General informations

Pressure loss in air hoses

Tool

Consumption

l/mn m

Conventional gun 160 at 500 10 at 30

AIRMIX

gun 67 at 134 4 at 8

Pumps 160 at 1 350 10 at 80

Blower 200 at 400 12 at 24

Screwdriver 200 at 400 12 at 24

List showing the compressed air consumption of normal air

tools

We generally multiply the instant consumption

by a coefficient of 0,5 to 0,9 to allow for the

time the tool is not in use.

The average air volume delivered by a

compressor of 1 CV is of 8 m

/h.

Calculate exactly the maximum air consumption of pump in l/mn : Q

The formula is :

Q = 1.2 x fluid output x pressure ratio x (air motor feeding pressure in bar + 1 bar for atmosphere)

Example for a pump 16.120 : Q = 1.2 x 4,8 x 16 x (6 + 1) = 645.12 l/mn or (645.12 x 60) : 1000 = 38.7 m

Tool

Consumption

l/mn m

Projection equipment 800 at 1 800 48 at 108

Riveter 450 at 1 500 27 at 90

Pneumatic drill 600 at 1 200 36 at 72

Linisher Ø 230 1 200 at 4 000 72 at 240

Drill 13 mm 600 36

Rotating sander 200 at 400 12 at 24

Electrostatic spraying : suitability of the equipment

depending on the resistivity of the paints

• The wrap-around affect is optimized with

paints of resistivity range of 5 - 50 MΩ.cm.

• Specific hoses allows for wrap-around effects

for resistivity range higher than 2MΩcm.

• For water-based materials (0 MΩ.cm), a

special Isocube enclosure allows to benefit

from all the advantages of electrostatic

spraying in complete safety.

Praticals pages

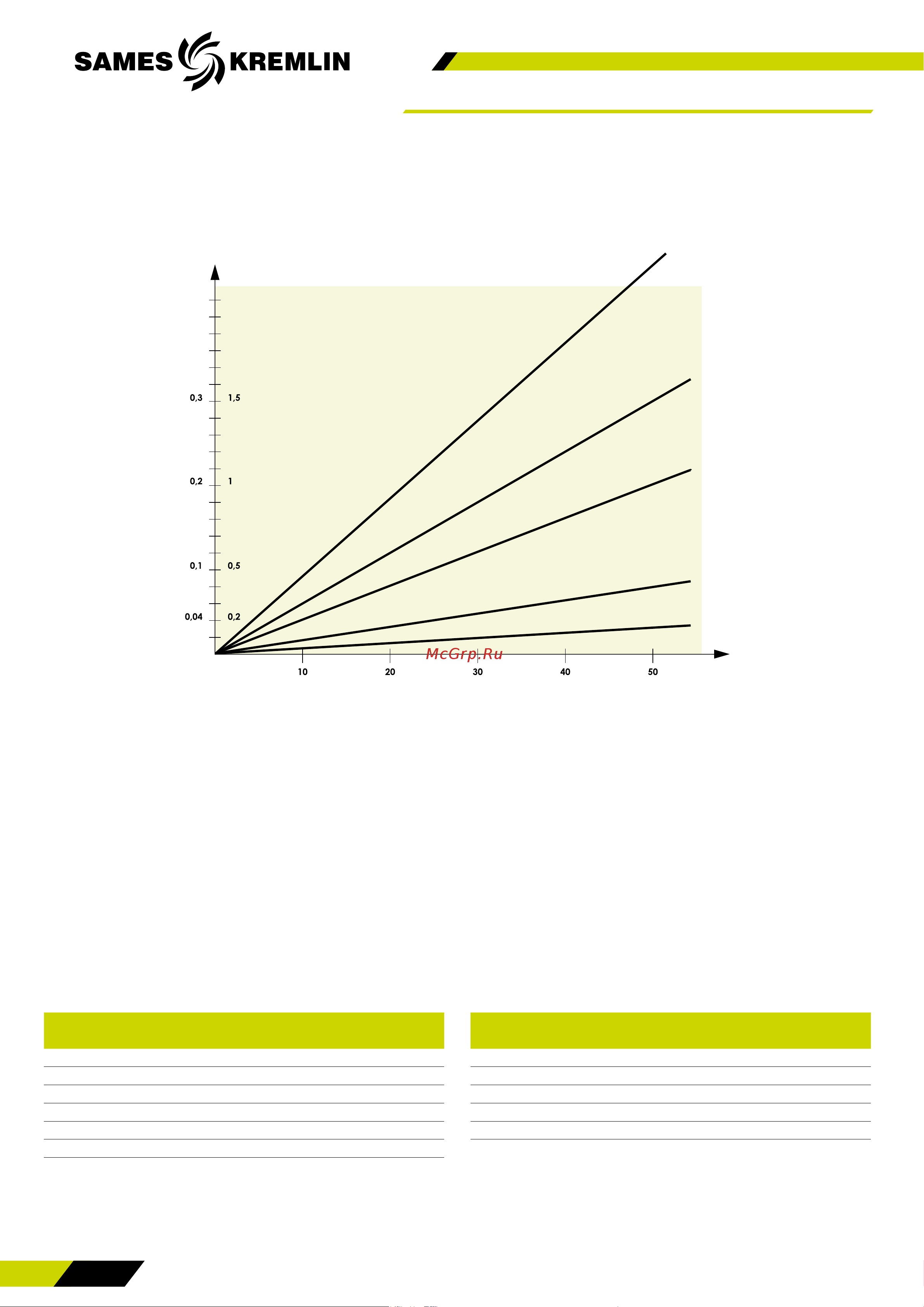

Loss of pressure

Air output (m3/h)

hose Ø5

hose Ø7

hose Ø8

hose Ø10

hose Ø16

per meter

(bar/m)

for 5 m hose (bar/5m)
