8.
Electric air conditioner. Split system
EN
6. DEVICE CONTROL

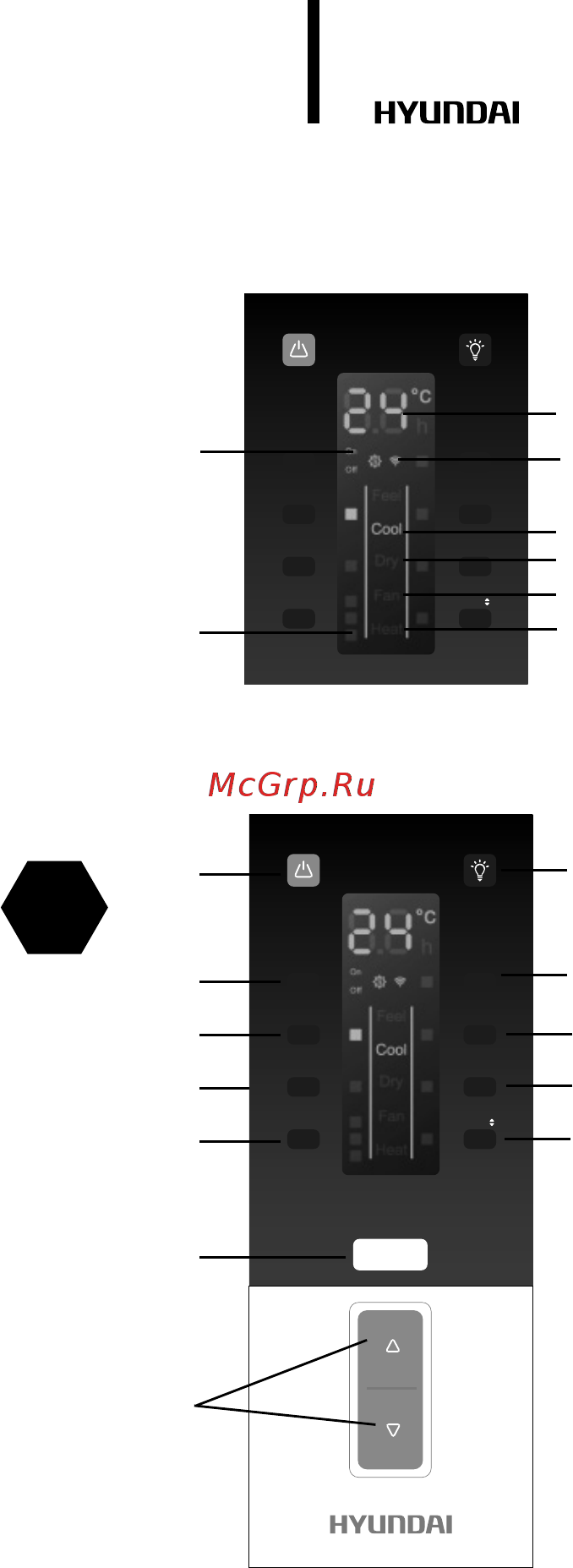

Fig. 3
а) Temperature indicator
b) Indicators timer
с) Indicator operation indicator functions
d) Indicators Cooling
e) Indicators dry
f) Indicators fan
j) Indicators heat
h) Indicators speed
* use of particular indicators depends on
model and series.
** design of indicator symbols may dier
depending on model and series.
a
d
h
e
f
j
b
c
FAN SWING
HEALTH OPTION
SUPER SLEEP
TIMER ECO
MODE
REMOTE CONTROL
Fig. 4
Indication of the control board display shall
correspond to selected modes.
1. Button “ON/OFF” (Power). Using this button,
you may turn the conditioner on or o.
2. Button for selection of operating mode -
“MODE”. Using this button, you may select a
needed operating mode: AUTO, COOL, DRY,
HEAT, FAN.
3. Button “SLEEP”. Using this button, you may
turn the sleep mode on and o. In this mode
the fan speed will be low.
4. Button “SWING”.Using this button, you may
regulate position of air-outlet blinds and for-
ward treated air up and down, le and right.
5. Button “Health. Using this button, you may
turn on or o the ion funtion. (In this model
the function is not available).
6. Button “SUPER”. With this button you can
enable or disable the intensive mode. When
swithing modes, or when you increase /
decrease the fan speed, the function is
automatically disabled.
7. Button “TIMER”. This button sets the
automatic swich-on (set the desired time by
pressing button “SET”, “MODE”, “SPEED” or
button “TIMER”). The device automatically
turns on aer a selected period of time.
8. Button “INDICATORS LIGHT”. Using this
button you may disable the backlight of the
display of the indoor unit. By re-pressing
the button, you can turn on the display
backlight.
9. Кнопка «INCREASE THE TEMPERATURE».
With this button, you can control the
temperature.
10. Button «ECO».
11. Button «OPTION». This option is not
available for conditioner H-AC-H1.
1
7
2
9
6
5
8
3
11
10
4
4
FAN SWING
HEALTH OPTION
SUPER SLEEP
TIMER ECO
MODE
