KVM-450

ENGLISH

The KVM-450 supports hot-plugging. You don't need to turn your computers off before installing

the device.

Installing the KVM-450

Package Contents

If any of these items are missing from your packaging, please contact your reseller.

A. Attach your USB keyboard connector to the console USB port of the KVM-450.

B. Attach your USB mouse connector to the console USB port of the KVM-450.

C. Attach your monitor' s HDB 15 VGA connector to the console port of the KVM-450.

D. Attach the KVM cable (VGA connector) to the VGA port located on the KVM-450.

The following steps below apply to each computer that you are using with your KVM-450.

E. Attach the KVM cable (USB connector) to the USB port located on the back of

your computer case.

F. Attach the KVM cable (VGA connector) to the VGA port located on the back of your computer

case.

Installation of the KVM-450 is now complete.

16-PORT USB KVM SWITCH

KVM-450

KVM CABLE WITH VGA AND USB (x4)

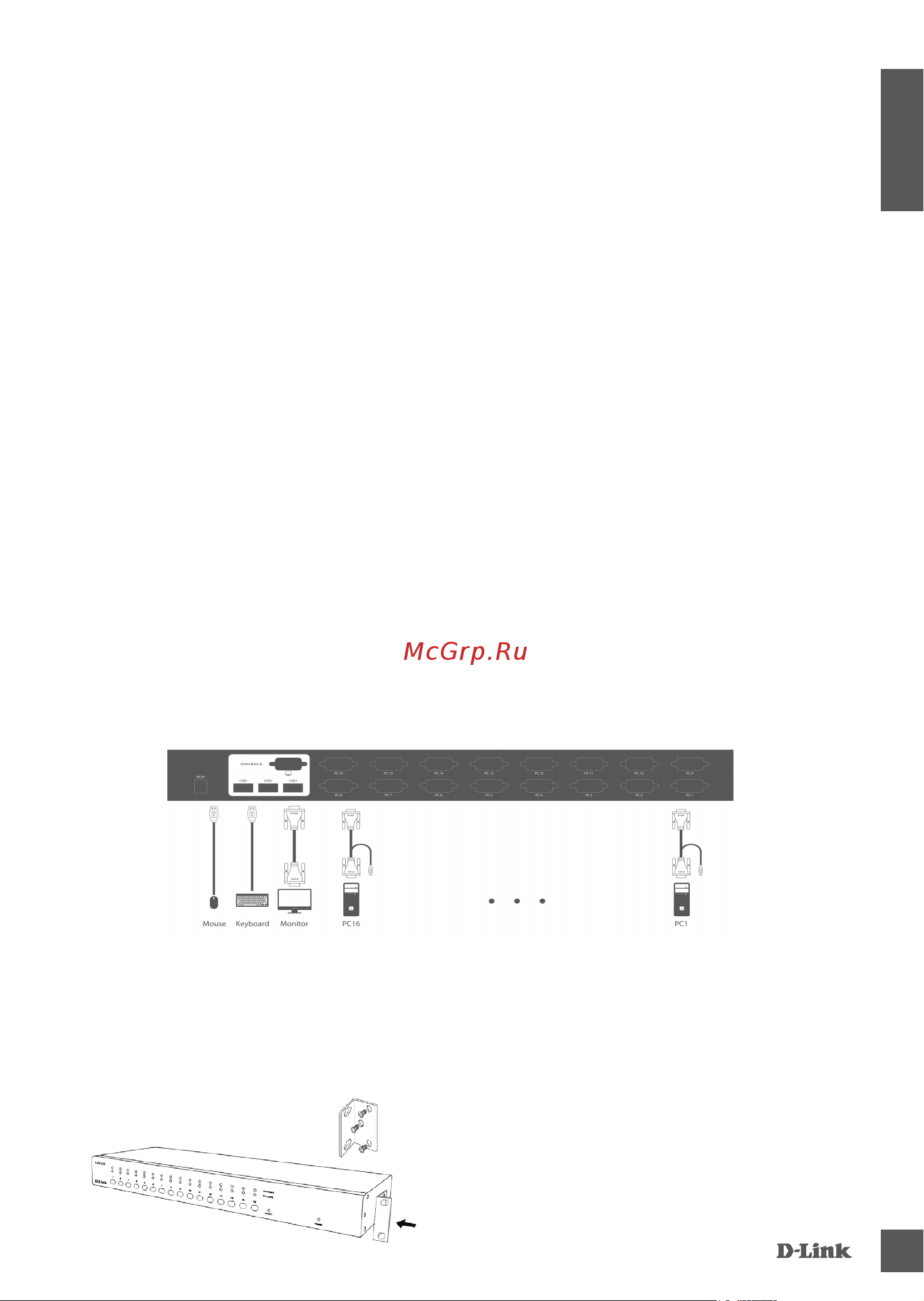

CONNECT THE KVM-450 TO YOUR COMPUTERS

QUICK INSTALLATION GUIDE

IR REMOTE CONTROLLER

POWER ADAPTER

MOUNTING KIT

Mounting the KVM-450 in a Rack

The KVM-450 can be mounted into a standard 19" rack.

A. Attach the included mounting brackets to the sides of the KVM-450 and secure them using the

provided screws.

B. Install the KVM-450 into the rack.

C. Use the screws that were provided with the rack to secure the KVM-450 to the rack.

The model you have purchased may appear

slightly different from the one shown in the guide.
