Zalman VF3000F [5/9] Installation

.COM

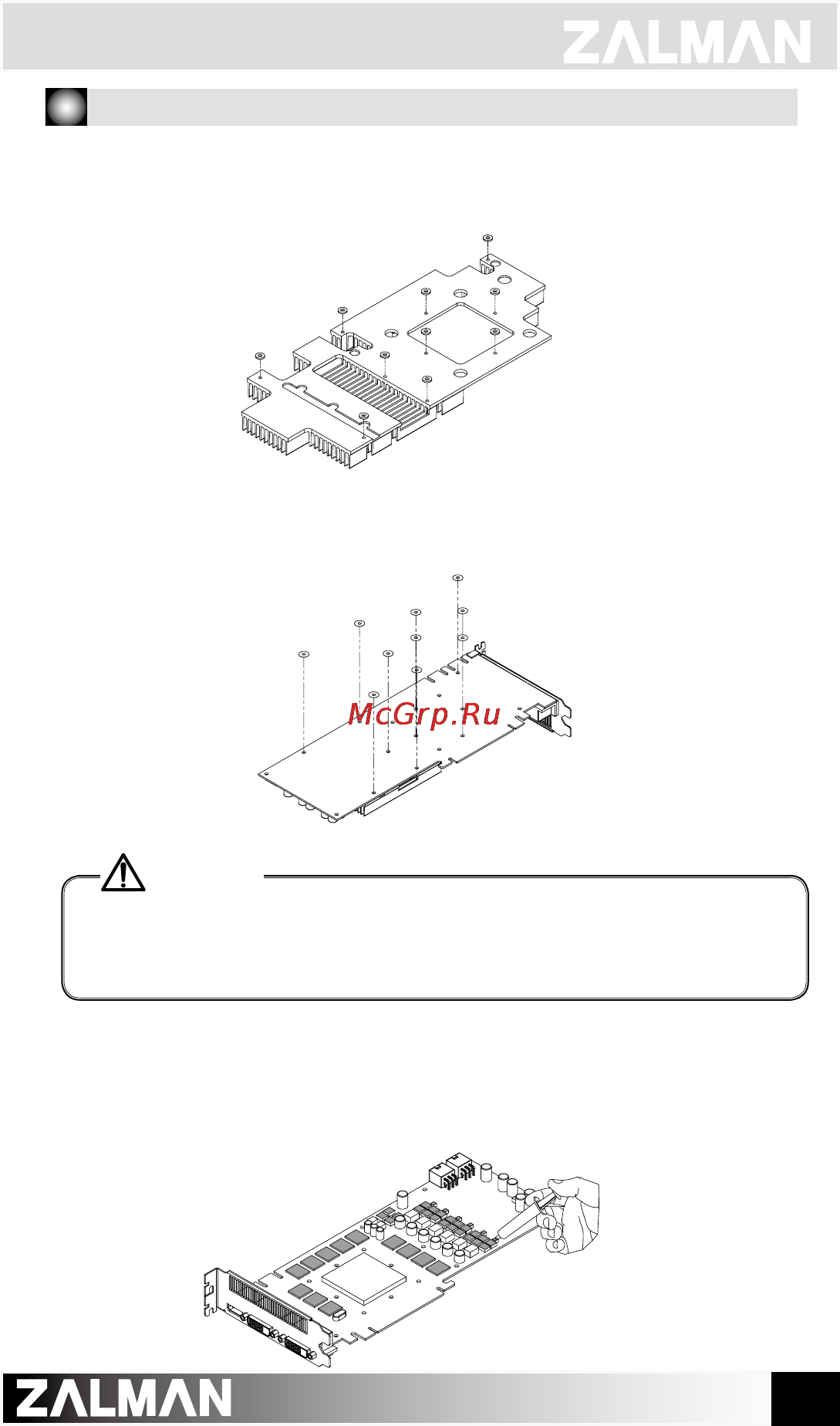

1) VGA RAM Heatsink Rubber Washer Attachment

2) VGA Card PET Washer Attachment

Attach the Rubber Washers to the VGA RAM Heatsink’s holes.

Attach the PET Washers to the VGA Card’s holes on the rear.

5. Installation

3) VGA RAM, FET Chipset Thermal Grease Application

Clean the contact surface of the VGA RAM and FET Chipset completely.

Apply a thin and thorough layer of Thermal Grease on the contact surface

of the VGA Chipset that touches the base of the VGA cooler.

Caution

▶ The VGA RAM Heatsinks are specifically optimized and designed for reference

VGA cards.

▶ Please check VGA card model prior to installation and refer to diagrams.

▶ Prior to PET Washer installation, check the location of holes in the diagram above.
