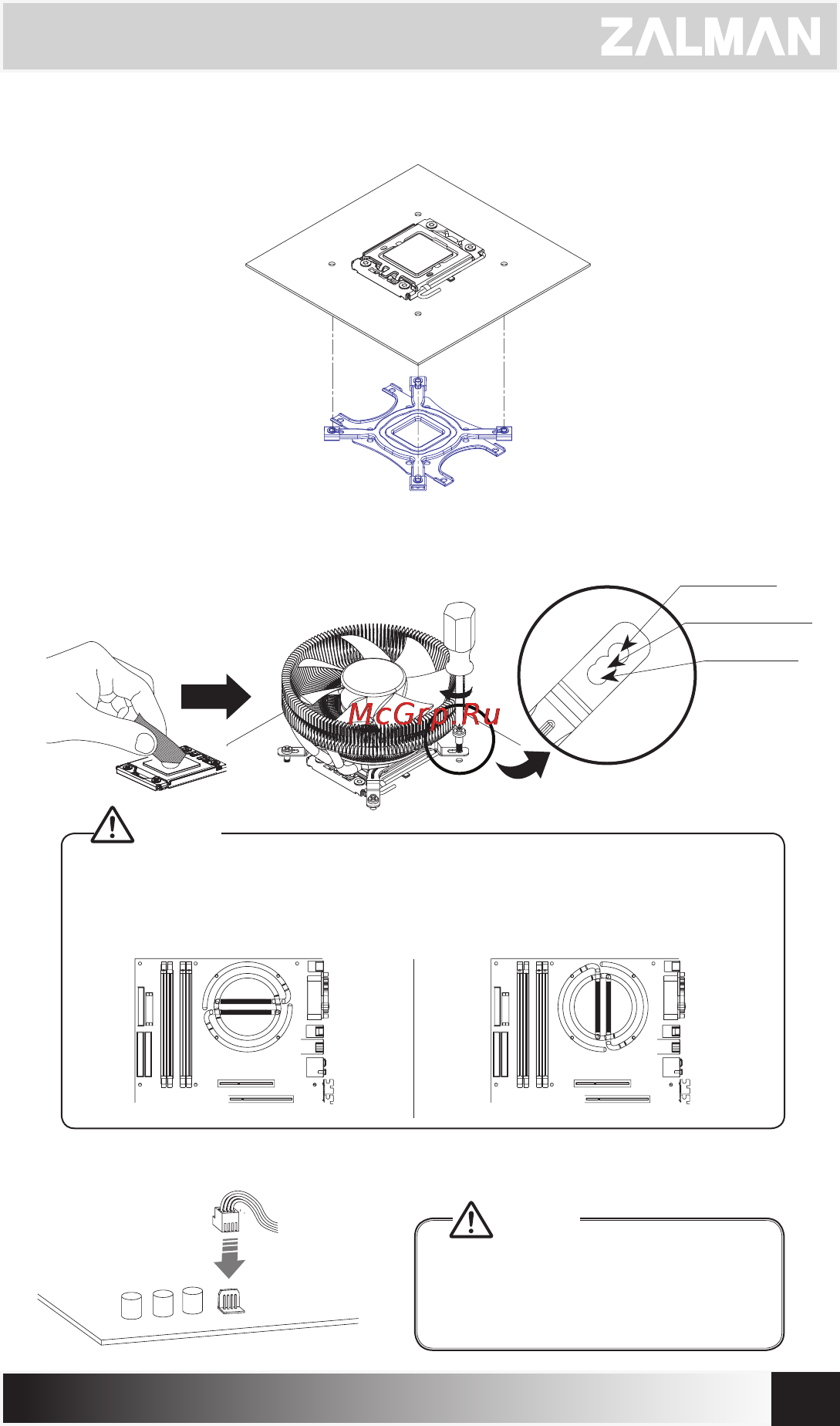

In the case of Tower Enclosure, the direction of heatpipe to be

horizontally as shown in the image. The vertical installation can affect

the performance of heat dissipation.

Spread the Thermal Grease on the CPU’s surface and put the Cooler

on the center of CPU and then fasten the Bolts (Cooler) to install the Cooler.

Align the Backplate’s holes with motherboard’s clip support holes, attach it

to the back side of the motherboard.

Please make sure that PWM

Control Mode is activated

in the motherboard’s BIOS settings.

Connect the cooler’s 4-pin connector to the motherboard’s CPU Fan
