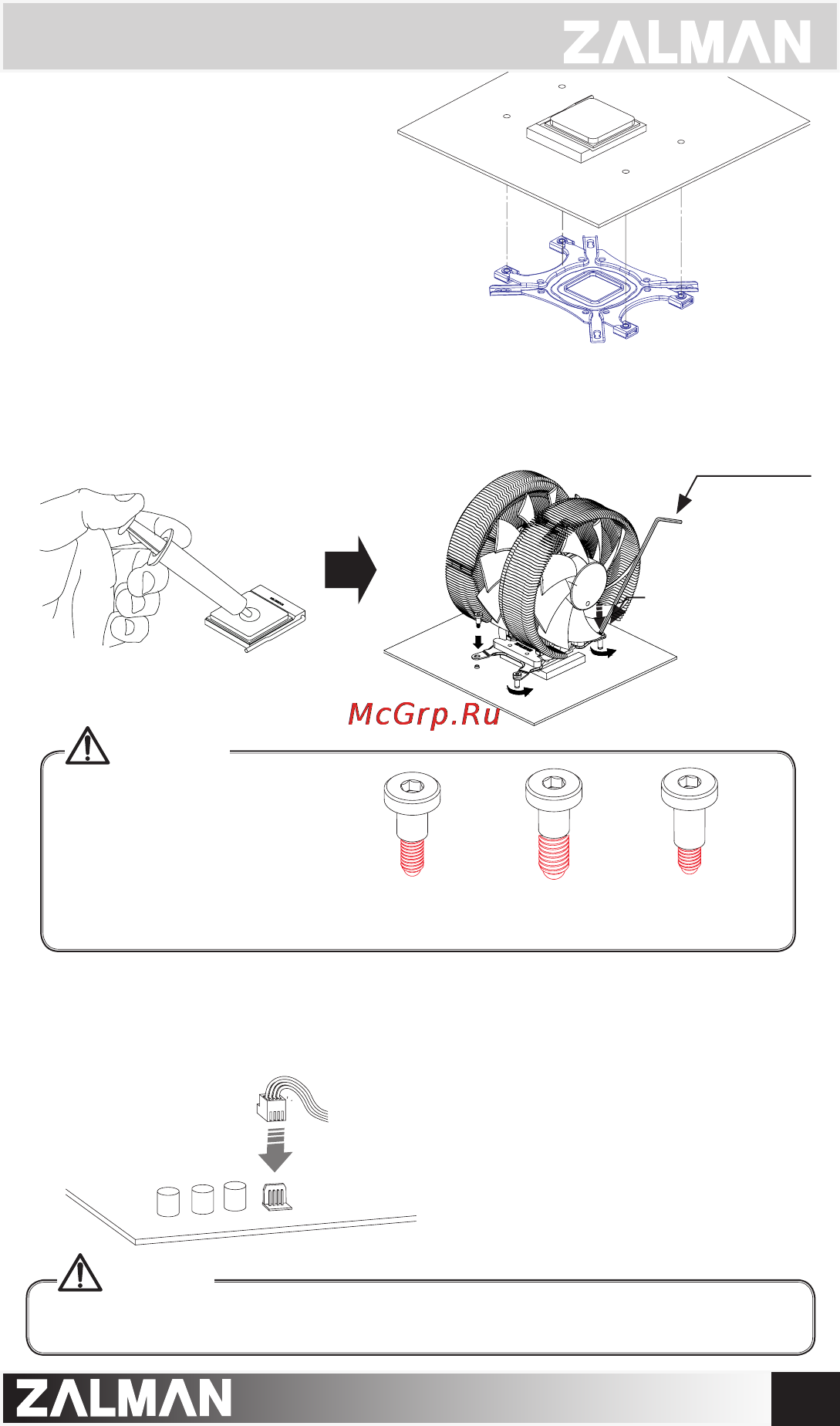

Attach the Backplate assembly to

the back side of the motherboard by

aligning the Nuts to the motherboard

mounting holes.

If you were unsuccessful at rst attempt,

you may continue with the installation

without the Double-sided Tape as it is

not a necessary component.

M/B

Silver Bolt B

(3mm)

⑥

Apply thermal grease just enough to thinly cover the CPU surface. Then,

insert four Silver Bolts B through the AMD Clip holes, and using the 3/23"

Allen Wrench, fasten the Bolts incrementally while alternating between them.

Please make sure to use the

Bolts with correct color and

thread length as they can

appear quite similar.

Gold Bolts

(Socket LGA 1366)

Sliver Bolts A (4mm)

(Socket LGA 2011)

Sliver Bolts B (3mm)

(Socket AMD/LGA

1156/1155/775)

Caution

Allen Wrench

M/B

Please make sure that PWM Control Mode is activated in the motherboard’s BIOS settings.

Beware of fan wire interuption

Caution

⑥

Connect the Y-Connector Cable to the 4Pin(140mm Center FAN), 3pin (120mm

Front FAN) .

⑦

Connect the Y-Connector Cable to the mother board.
