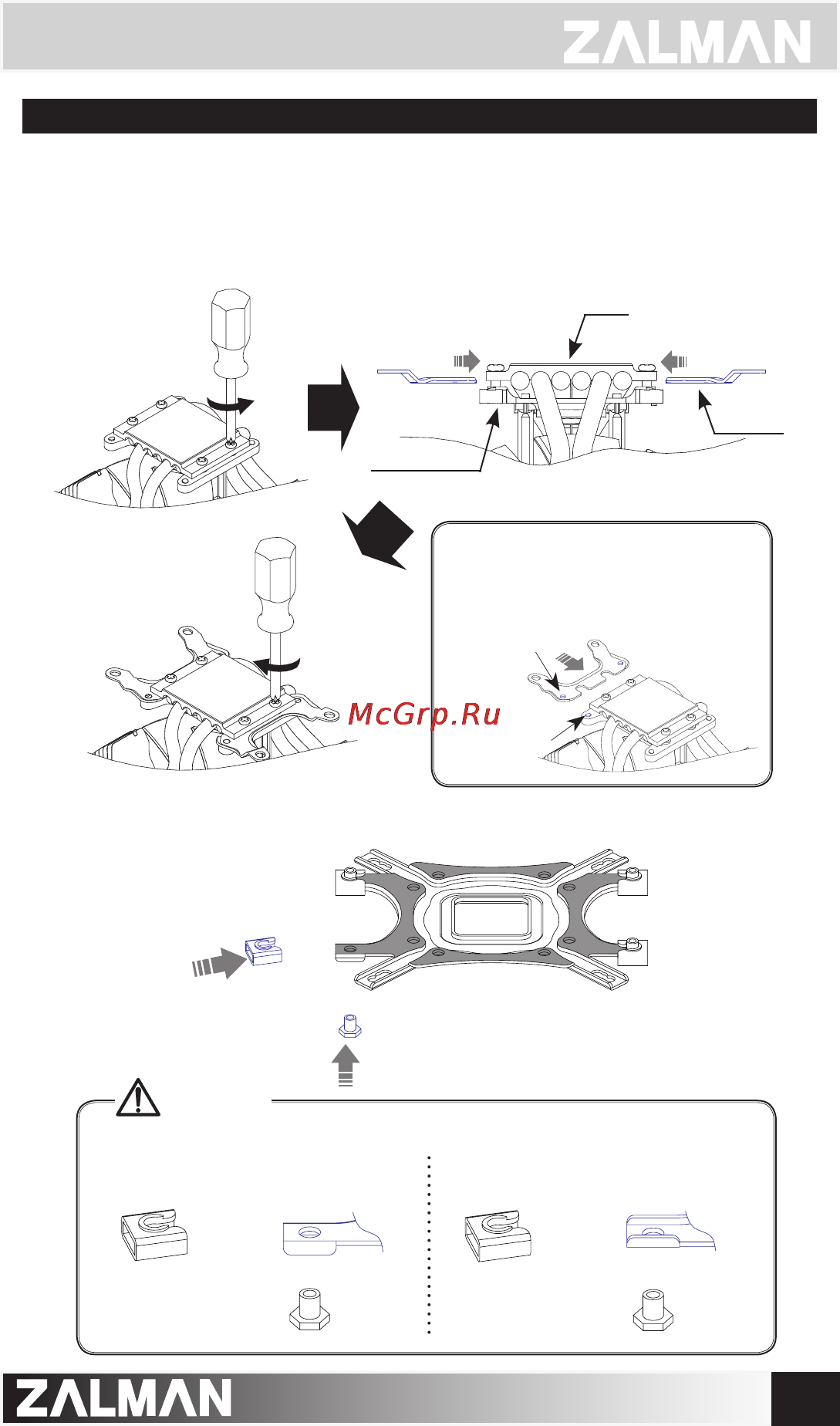

1) AMD Socket FM2/FM1/AM3+/AM3/AM2+/AM2 Installation

Partially unscrew the four bolts located on the base of the CPU cooler.

Then, insert the AMD Clips between the base and the heatpipe cover, with

the clips bent away from the heatsink.

The holes in the Clip (as shown

below) are matched to the “keys” on

the heatpipe cover for secure Clip

installation.

B. AMD Socket Installation

Insert the Nuts to the Backplate according to the socket type and secure

them with Side Caps.

Take note of the orientation of the Nuts and the Side Caps.

Heatpipe cover
