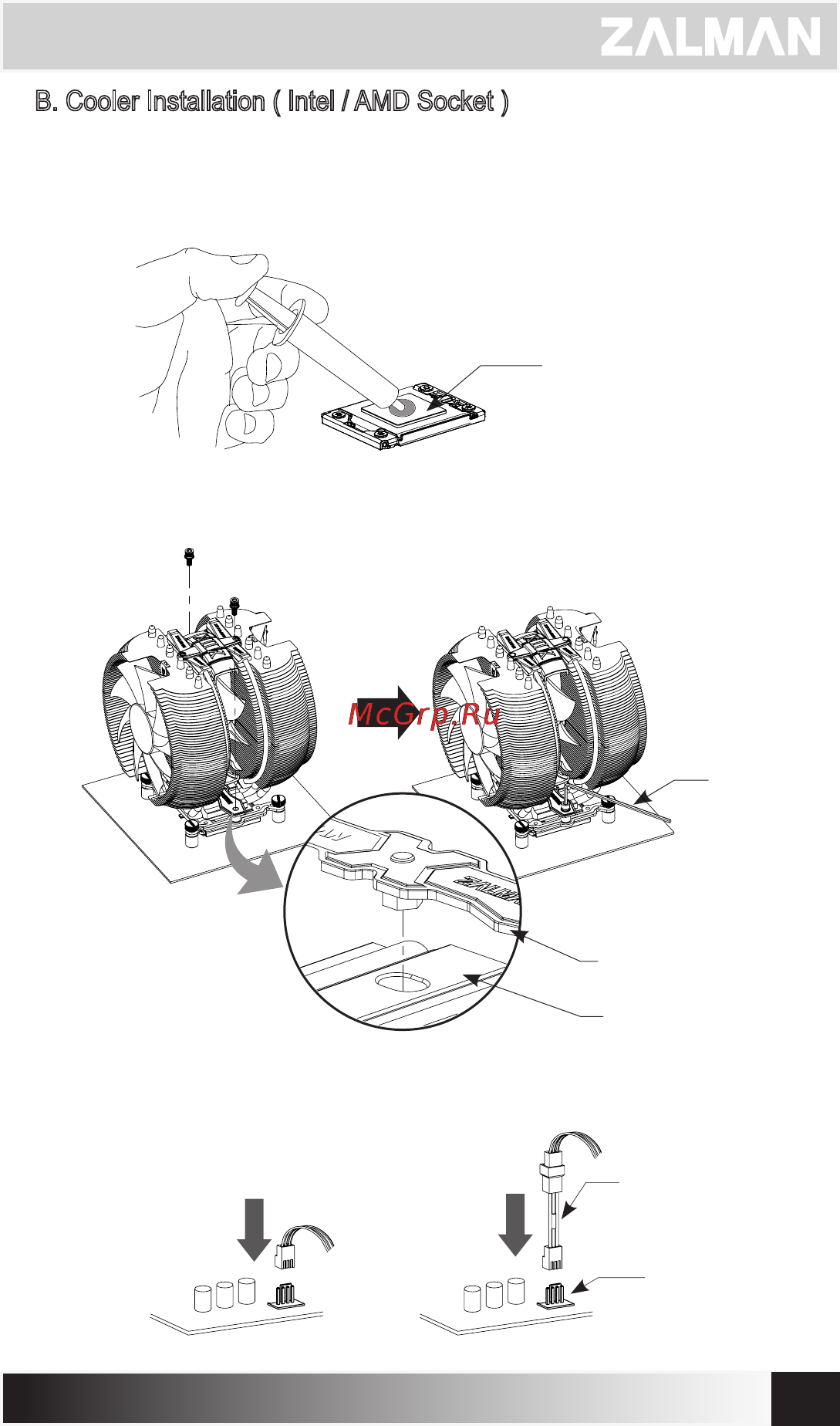

B. Cooler Installation ( Intel / AMD Socket )
※
After installation of the Clip Support depending on a user’s socket type,
install Cooler according to the direction below.
①
Apply a suitable amount of the included Thermal Grease on
the CPU’s surface.
②
Insert clip into the hole of heatsink’s base and fasten bolts by wrench.
③
Connect the cooler’s 3-pin connector to the motherboard’s CPU Fan header.
wrench
<Normal Mode> <Quiet Mode>
Intel or AMD
CPU
Clip
RC5
(Fan RPM Resistor)
Motherboard
Connector
Heatsink Base
