3 Description

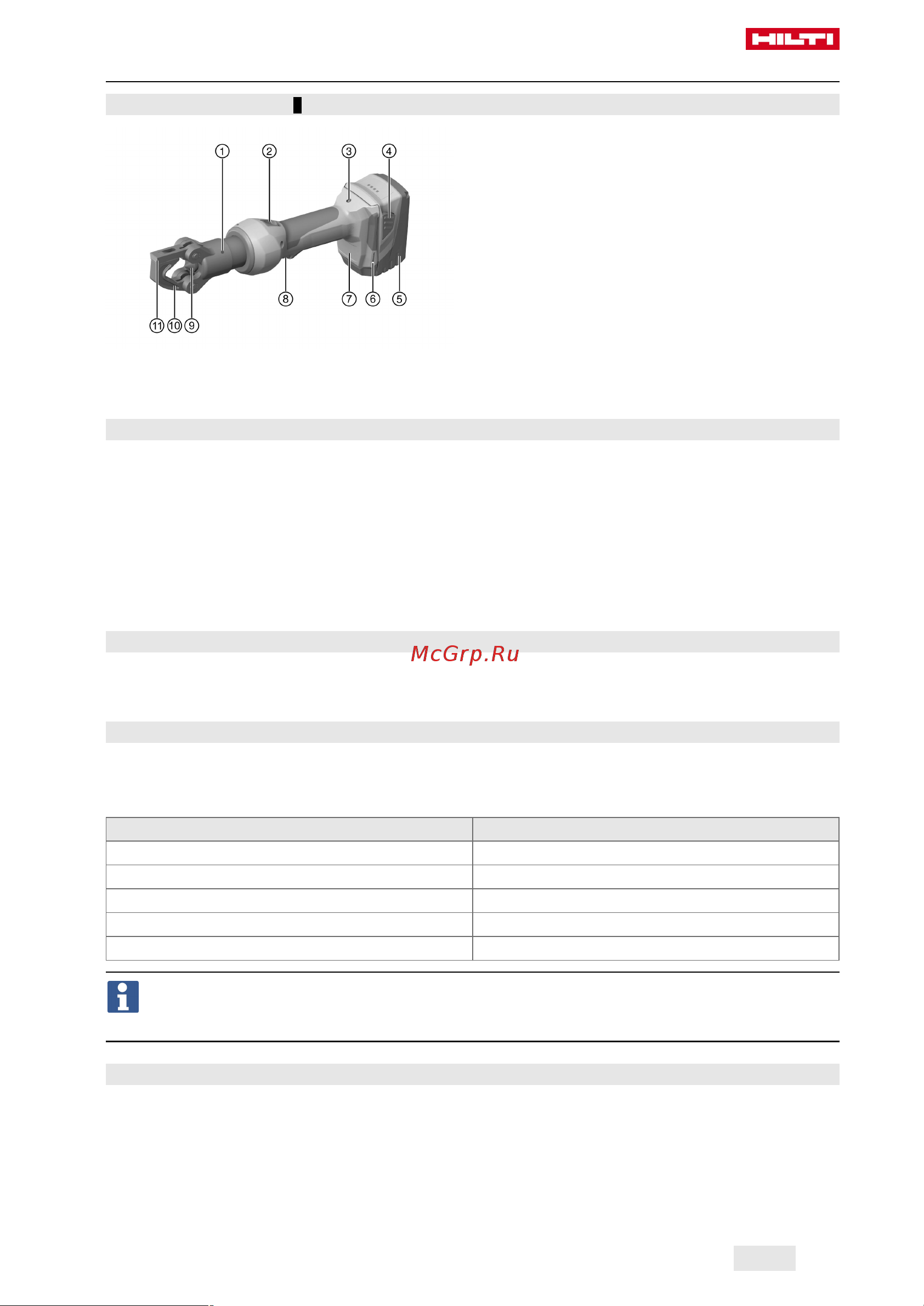

3.1 Product overview 1

Crimping / pressing head

;

Piston reset slider for use in case of fault or

emergency

Servicing and fault indicator (red LED)

Battery release button

Battery

(

Slot on both sides to fasten the Hilti retaining

leash

)

White LED to illuminate the working area

Control switch

Crimping / pressing ram (stepped)

Pivoting bar to open the tool head

Lever to lock/unlock the tool head

3.2 Intended use

The product described is a cordless electro-hydraulic crimping tool.

It is designed for crimping connectors made of copper (Cu) or aluminum (Al).

Before use of the power tool, all live cables or other items carrying electric voltage within the area in which

the user is working must be switched off. If this is not possible, the corresponding safety precautions for

working in the proximity of live cables or equipment must be implemented and observed.

• Use only Hilti lithiumion batteries of the B 22 series with this product.

• Use only Hilti-approved battery chargers to charge these batteries. More information is available from

your Hilti Store or from www.hilti.group

3.3 Possible misuse

• Do not use this hand-held product clamped in a fixed position or as a stationary device.

• Do not use the product in heavy rain or under water.

3.4 Lithiumion battery status display

The charge state of the Li-ion battery and malfunctions of the product are indicated by the indicator of the

Liion battery. The charge status of the Liion battery is indicated after one of the two battery release buttons

is short-pressed.

Status Meaning

4 LEDs light. State of charge: 75 % to 100 %

3 LEDs light. State of charge: 50 % to 75 %

2 LEDs light. State of charge: 25 % to 50 %

1 LED lights. State of charge: 10 % to 25 %

1 LED flashes. State of charge: < 10 %

Battery state of charge cannot be displayed while the control switch is pressed and for up to 5 seconds

after releasing the control switch. If the LEDs of the charge state indicator flash, follow the instructions

in the 'Troubleshooting' section.

3.5 Items supplied

Crimping / pressing tool, operating instructions.

Other system products approved for use with this product can be found at your local HILTI STORE or online

at: www.hilti.group
