8. Fan Power Cable Connection

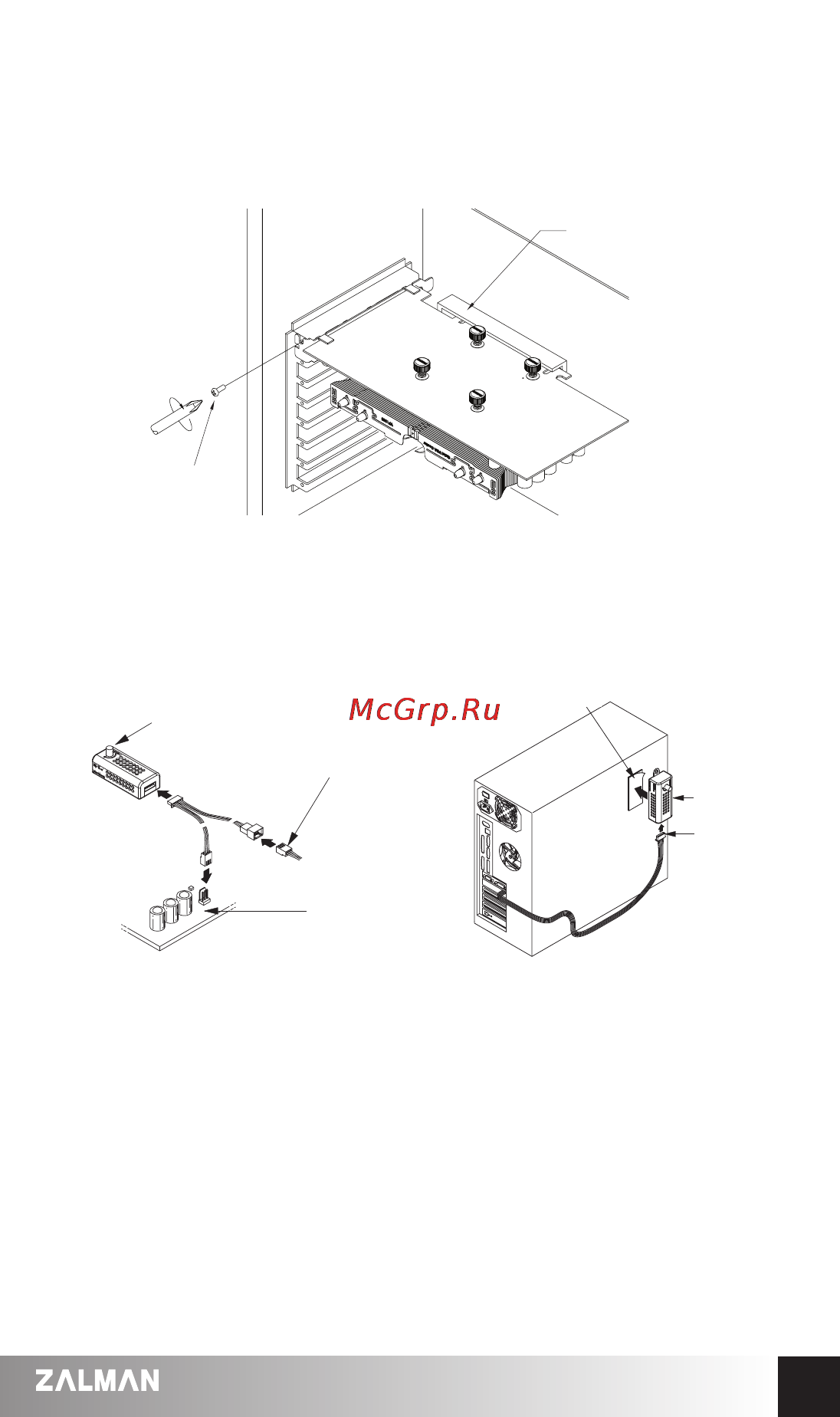

7. VGA Card Installation

Insert the assembled VGA card into the motherboard’s PCIe (or AGP) slot. Use the Fixing Bolt to secure the

VGA card onto the computer case. If the VGA card has a power connector on it, then remember to plug in the

power cable.

PCIe Slot

Fixing Bolt

※

The specifications of any product may change without prior notice to improve performance.

①①

Installing FAN MATE 2 on the Inside of the System

②②

Installing FAN MATE 2 on the Outside of the System

Connect the appropriate 3-pin connector on the

cable to the motherboard fan header and the

Z-Machine GV1000 fan connector.

Pull the 6-pin connector out of the system through

the back and connect it to FAN MATE 2, which

should be installed on the case using the included

Double-Sided tape (⑫).

◆ When the RPM Control Knob on FAN MATE 2 is turned fully counter-clockwise, the fan operates in Quite

Mode. Turned fully clockwise, it operates in Performance Mode. You can select the desired fan RPM by

turning the knob.

※ Performance can be increased by adjusting the RPM control knob of the FAN MATE 2.

Note) FAN MATE 2 has been specifically designed for the fan of this product.

Zalman Tech Co., Ltd. is not responsible for any damage to systems or VGA Chipsets caused by

using it with other types of fans.

RPM Control Knob

Fan Connector

(Z-Machine GV1000)

Motherboard

Double - Sided Tape

FAN MATE 2

6-Pin

Connector
