4. Installation Requirements

1) Space Requirements

2) Air Guide Removal

3) Cooler Orientation

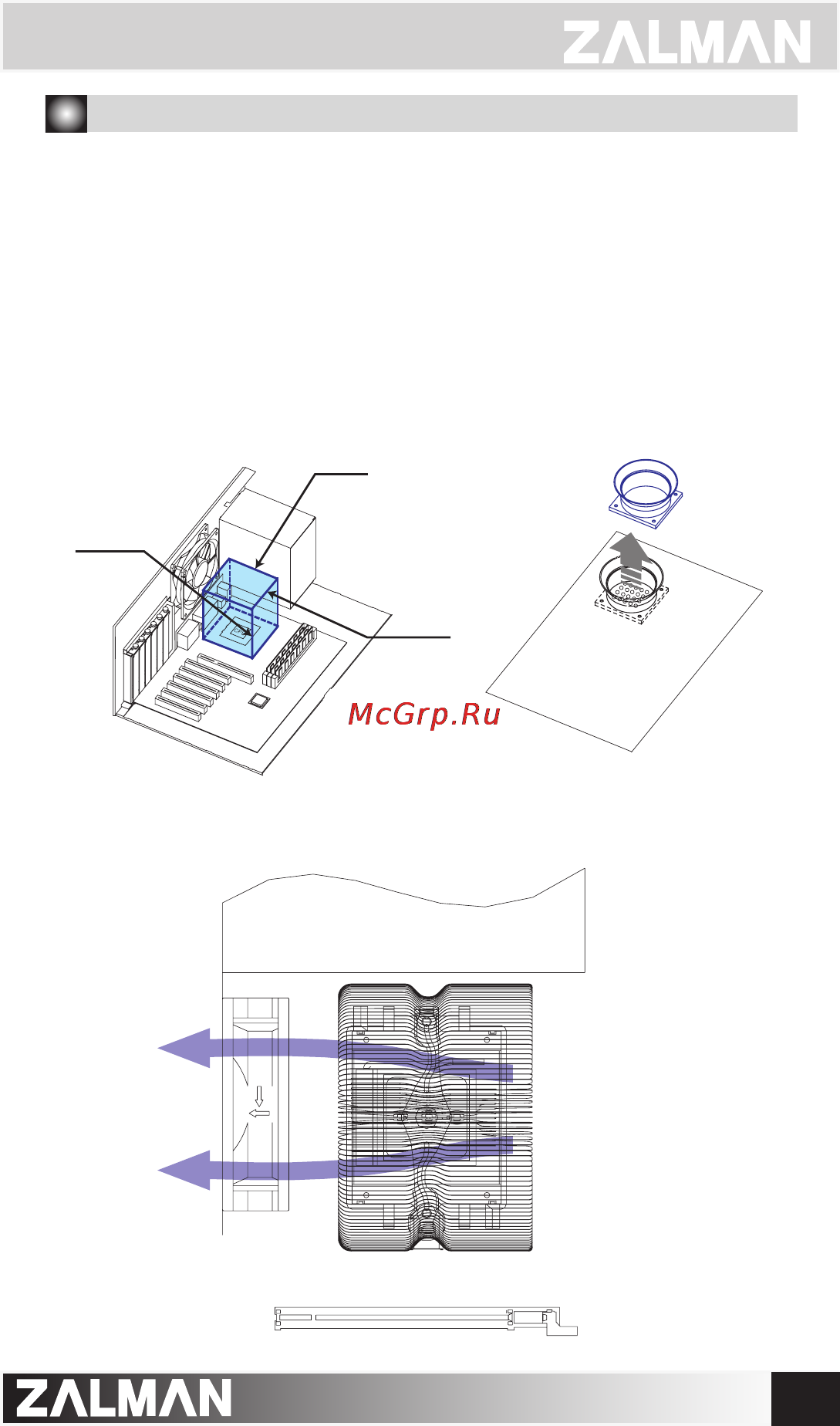

The cooler’s installation requires unobstructed space with dimensions of

CNPS9700 LED : 127mm(width), 93mm(length), 145mm(height)

CNPS9500A LED : 115mm(width), 88mm(length), 128mm(height)

, and the CPU as a central reference point. Please check if components such as

ODDs and PSU protrude into the required space.

Air guides on enclosures must be removed, before the cooler’s installation, for

they protrude into the cooler’s required space.

It is recommended that the cooler be installed so that air ows from the cooler toward

the enclosure’s rear exhaust fan.

Length

Height

Width

PSU
