5. DESCRIPTION

a : Mains operation indicator (green). Lights when the UPS

is turned on and the mains voltage is within the normal limits

b : Battery status indicator (yellow). Intermittent illumina-

tion – when the battery is charging, continuous light – the

battery is charged

c : Inverter indicator (red). Lights when the UPS switches

to inverter mode (battery operation)

d : UPS switch-on button

e Network operation mode

f Battery operation mode

g Output voltage

h Load indicator

i LCD display

j Battery capacity indicator

k Graphic input voltage level indicator:

HIGH, NORMAL, LOW

l Output plug

m Power cable

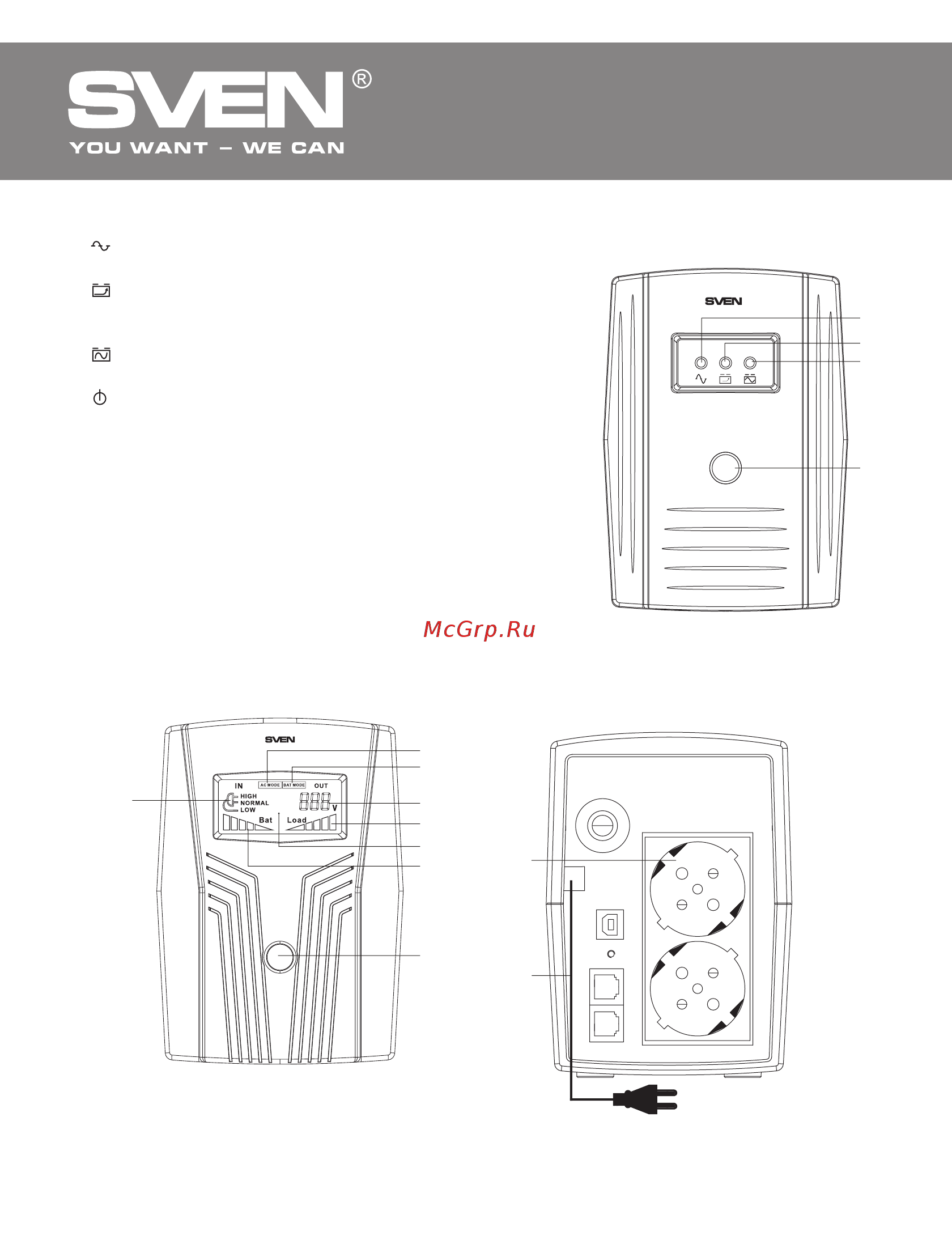

Pro 400/ 600/ 800

UPS Front Panel

Pro 650 (LCD, USB) UPS Front Panel

with LCD display

Pro 400/ 600/ 800/

650 (LCD, USB)

UPS Rear Panel

Uninterruptible

Power Supply
