Powered device (PD) test

This function is used to test the voltage, current, and power consumed by DC appliances. Connect the power adapter to the DC input (7).

Then, plug one end of the DC cable (included) into the powered device and the other end into the DC output (8). Select POWER (PD test) in

the main menu, and then press the OK button (12) to test.

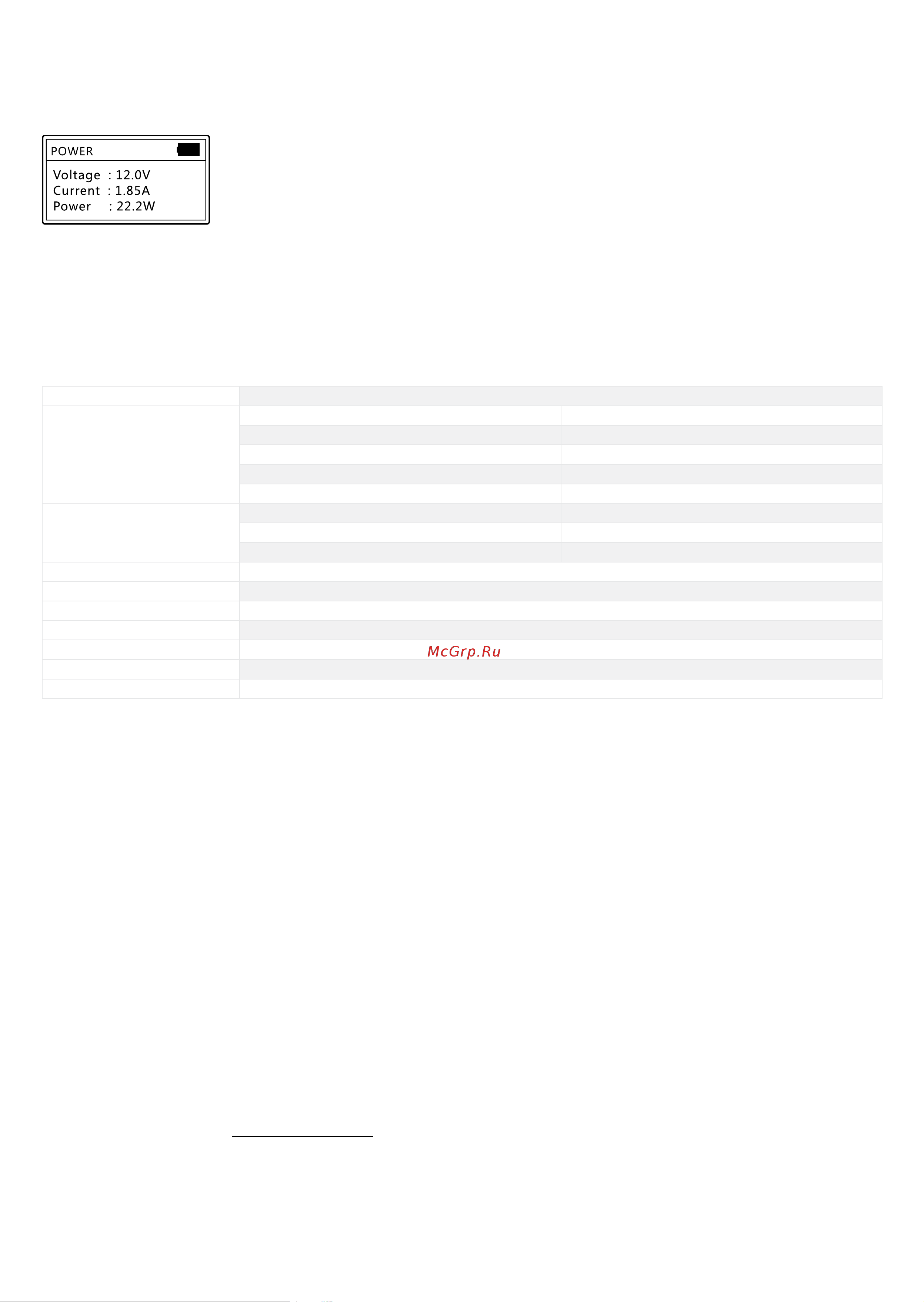

Possible outcome is shown below:

Loop-back test

This function is used to check if the signal transmission between the network switch and the powered device is working properly.

Plug one end of the cable or the RJ45 patch cord (included) into the loop-back test port (3) on the transmitter and the other end into

the network switch. Select LOOP (Loop-back test) in the main menu. The device will send a signal to the network switch and wait

for the response signal. If the LED on the network switch lights up and "Loop testing…" is continuously displayed on the screen, it

means that the signal transmission is good. If the LED on the network switch does not light up, it means that there are problems in the

communication channel.

Specications

Testing cable types STP/UTP (CAT5, CAT6)

PoE test

Power source equipment (PSE) type test standard (IEEE 802.3at/af) / non-standard

Midspan/endspan identication +

DC voltage measurement range 5–60V

Voltage polarity detection +

Power measurement range 0–18W

Powered device (PD) test

DC voltage measurement range 0–60V

DC current measurement range 0–3A

Power measurement range 0–180W

Wire mapping +

Loop-back test function +

Max. electric current 80mA

Backlight 15s, 30s, 1min, continuous, o

Auto-o 15min, 30min, 1h, OFF

Operating temperature range –10… +60°C / +14… 140°F

Power supply 3pcs AAA alkaline batteries

The manufacturer reserves the right to make changes to the product range and specications without prior notice.

Care and maintenance

Do not use the device in a high voltage environment (e.g. 220V AC electric power supply). Do not use the device if it is not working

properly. Protect the device from sudden impact and excessive mechanical force. Store the device in a dry cool place. Please note that

the parameters of the power supply must comply with the technical characteristics of the device. Do not touch any bare conductor with

your hand or skin. Do not try to disassemble the device on your own for any reason. For repairs and cleaning of any kind, please contact

your local specialized service center. Only use accessories and spare parts for this device that comply with the technical specications.

Never attempt to operate a damaged device or a device with damaged electrical parts! If a part of the device or battery is swallowed,

seek medical attention immediately.

Battery safety instructions

Always purchase the correct size and grade of battery most suitable for the intended use. Always replace the whole set of batteries

at one time; taking care not to mix old and new ones, or batteries of dierent types. Clean the battery contacts and also those of the

device prior to battery installation. Make sure the batteries are installed correctly with regard to polarity (+ and –). Remove batteries

from equipment that is not to be used for an extended period of time. Remove used batteries promptly. Never short-circuit batteries as

this may lead to high temperatures, leakage, or explosion. Never heat batteries in order to revive them. Do not disassemble batteries.

Remember to switch o devices aer use. Keep batteries out of the reach of children, to avoid risk of ingestion, suocation, or poisoning.

Utilize used batteries as prescribed by your country’s laws.
