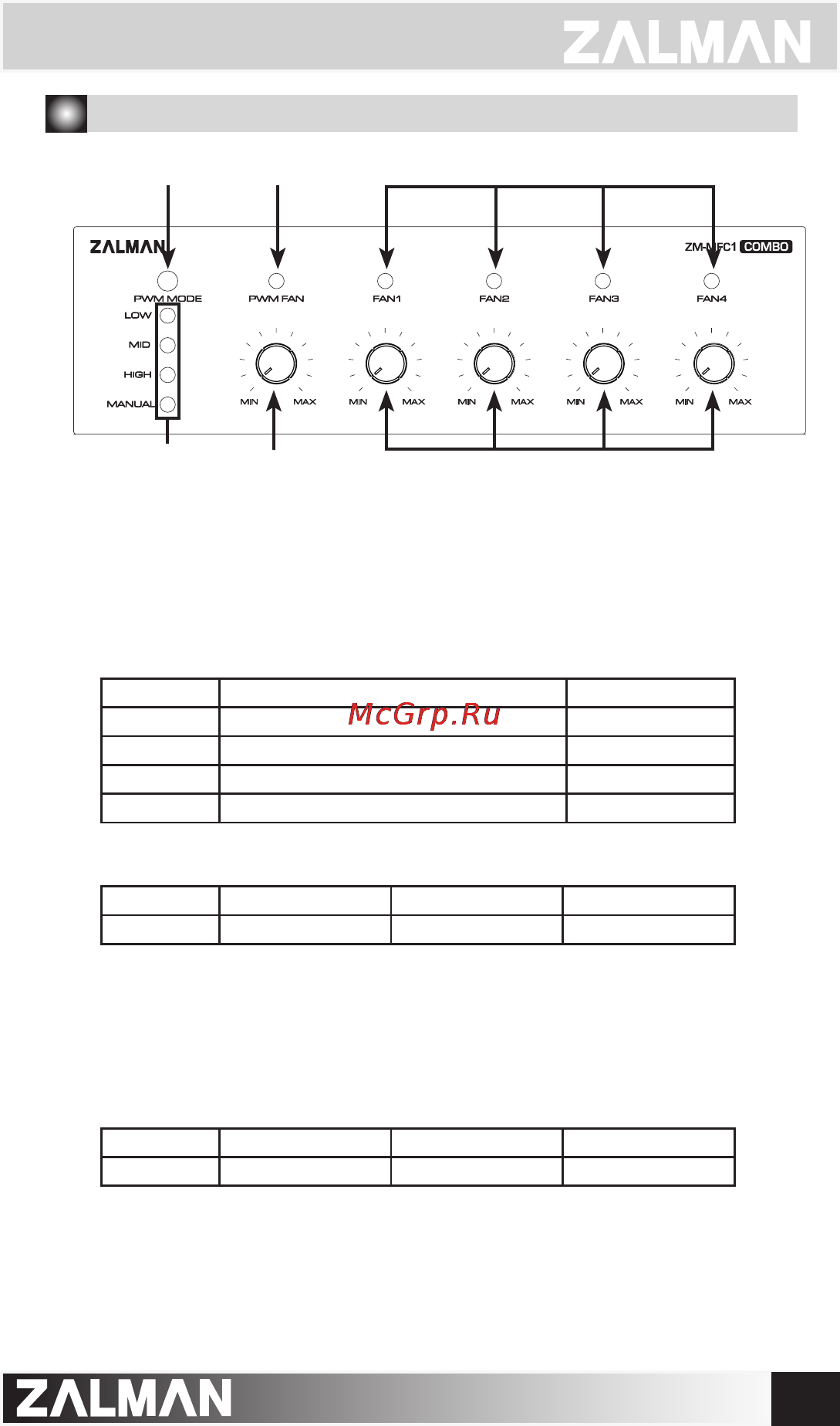

7. Functions and Usage

① Mode Toggle Button: This Button controls the PWM Fan Mode. Each

consecutive press changes the Fan mode from

LOW → MID → HIGH → MANUAL.

② PWM Mode Display LED

Mode Output Duty LED Color

LOW 50% BLUE

MID 75% PURPLE

HIGH 100% RED

MANUAL adjustable from 25 to 100% GREEN

③ PWM Fan RPM Display LED

FAN RPM 200~1000rpm 1000~1500rpm 1500rpm +

LED Color BLUE PURPLE RED

※ Under 200rpm or fan not connected → LED Off

④ PWM Fan RPM Controller

When the PWM Fan Mode is set to MANUAL, the PWM Fan Duty can be

adjusted from 25 to 100%.

⑤ FAN1 ~ FAN4 Voltage Status LED

Voltage 5~7V 7~9V 9~11V

LED Color BLUE PURPLE RED

※ Fan not connected → LED Off

⑥ FAN RPM Controller: FAN1 ~ FAN4’s voltage is adjusted from 5 to 11V.
