Zalman ZM-MFC3 [6/8] C3 cable connection
![Zalman ZM-MFC3 [6/8] C3 cable connection](/views2/1111139/page6/bg6.png)
5

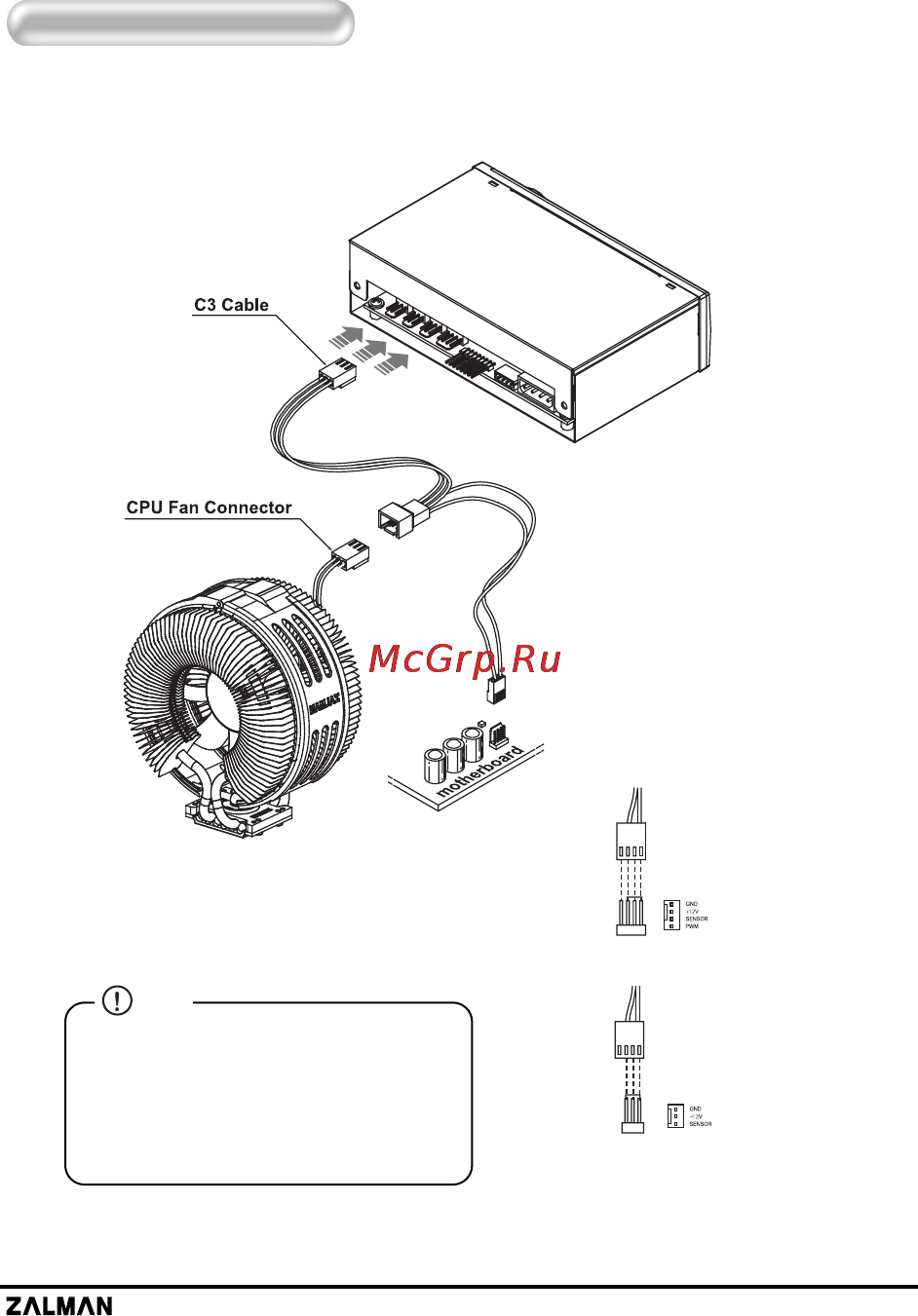

The C3 Cable sends the CPU fan's RPM signal to the motherboard to prevent malfunction during booting.
C3 Cable Connection
TTiipp
※ An error can occur if the fan RPM is set
too low. In this case, deactivate the
monitoring feature for the CPU fan in the
BIOS. For BIOS settings information,
contact the motherboard’s manufacturer.
4-Pin CPU Fan Connector
Connection to a 4-Pin
CPU Fan Header
Connection to a 3-Pin
CPU Fan Header
