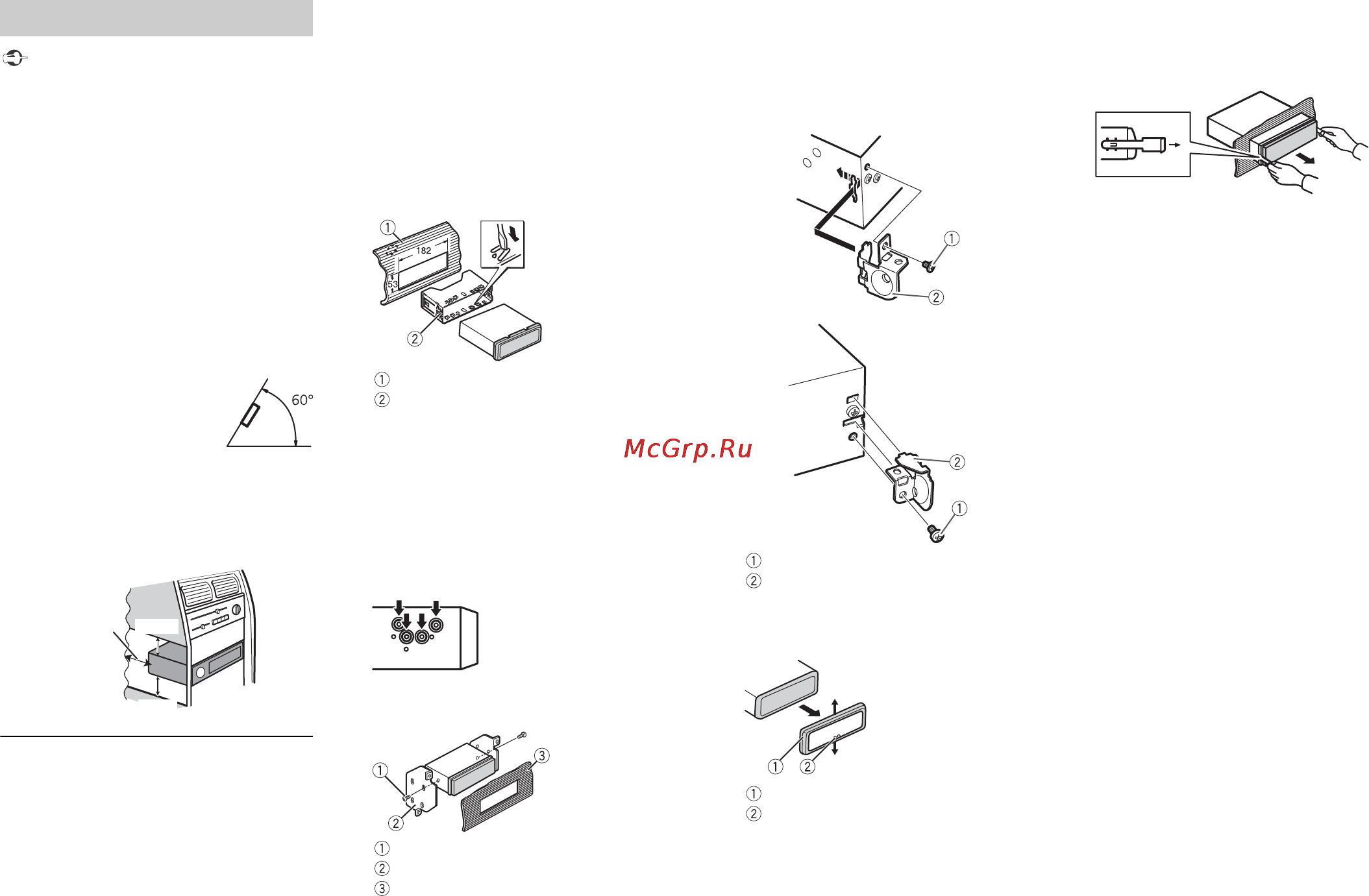

10En
Important
• C
heck all connections and systems before
final installation.
• D
o not use unauthorized parts as this
may cause malfunctions.
• C
onsult your dealer if installation requires
drilling of holes or other modifications to
the vehicle.
• D
o not install this unit where:
–it may interfere with operation of the
ve
hicle.
–it may cause injury to a passenger as a
resu
lt of a sudden stop.
• T
he semiconductor laser will be damaged
if it overheats. Install this unit away from
hot places such as near the heater outlet.
• Opti
mum performance is
obtained when the unit is
installed at an angle of less
than 60°.
• W
hen installing, to ensure proper heat
dispersal when using this unit, make sure
you leave ample space behind the rear
panel and wrap any loose cables so they
are not blocking the vents.
DIN front/rear mount
This unit can be properly installed using
either front-mount or rear-mount
installation.
Use commercially available parts when
ins
talling.
DIN Front-mount
1 Insert the mounting sleeve into the
dashboard.
For installation in shallow spaces, use
th
e supplied mounting sleeve. If there is
enough space, use the mounting sleeve
that came with the vehicle.
2 Secure the mounting sleeve by using a
screwdriver to bend the metal tabs
(90°) into place.
Dashboard
Mounting sleeve
Make sure that the unit is installed
s
ecurely in place. An unstable
installation may cause skipping or other
malfunctions.
DIN Rear-mount
1 Line up the holes on the mounting
bracket with the holes on the sides of
the unit to attach the bracket.
2 Screw in one screw on each side to
hold the unit in place.
Tapping screw (5 mm × 8 mm)
Mounting bracket
Dashboard or console
Installation
Leave ample
space
5 cm
5 cm
Using the included bracket
You can also use the included bracket to
mount the unit. Check to make sure that
the included bracket matches your
particular model of vehicle and then attach
it to the unit as shown below.
Screw
Bracket
Removing the unit
1 Remove the trim ring.
Trim ring
Notched tab
• R
eleasing the front panel allows easier
access to the trim ring.
• W
hen reattaching the trim ring, point
the side with the notched tab down.
2 Insert the supplied extraction keys
into both sides of the unit until they
click into place.
3 Pull the unit out of the dashboard.
