385

4-3. Do-it-yourself maintenance

Maintenance and care

TMC corolla_EE

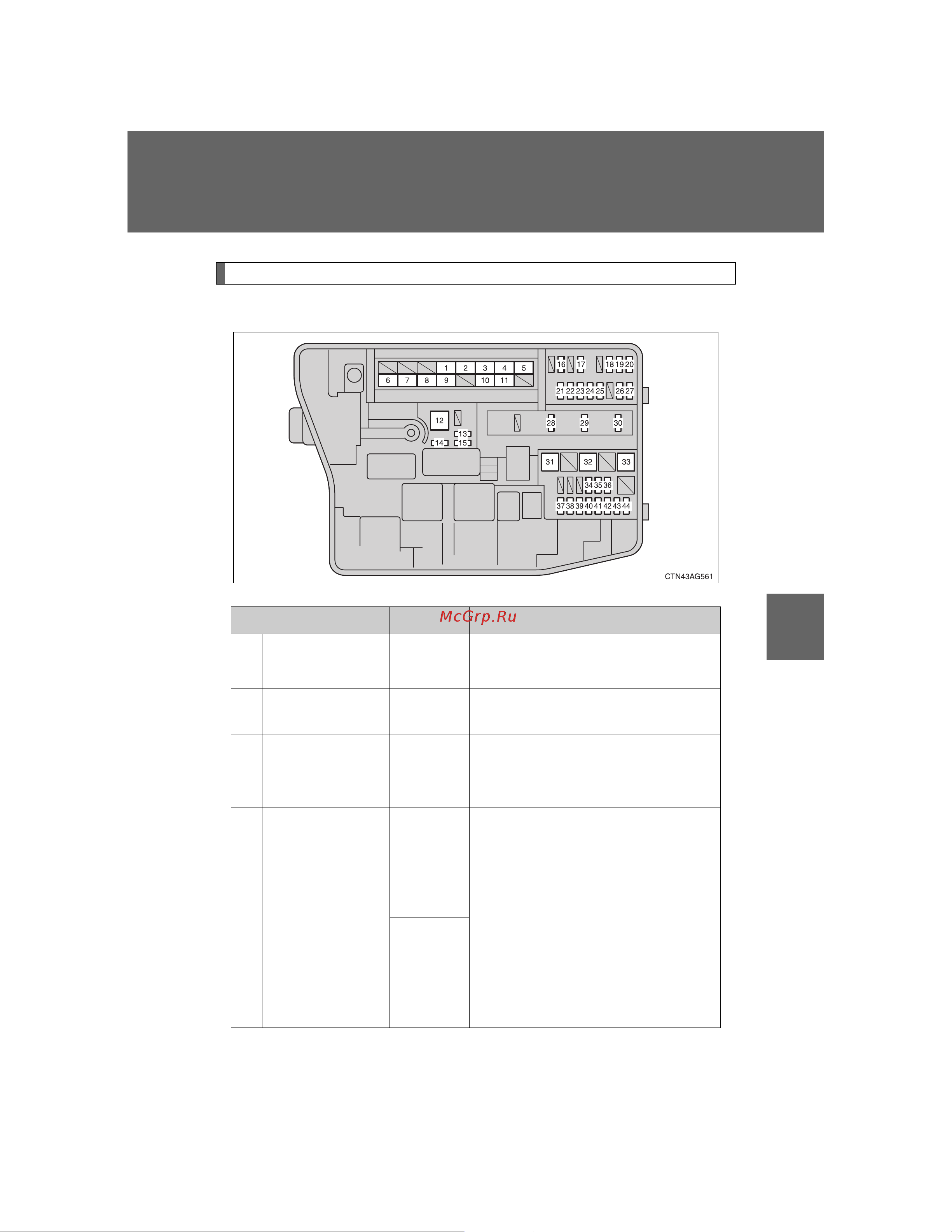

Fuse layout and amperage ratings

 Engine compartment

Fuse Ampere Circuit

1 H-LP CLN 30 A Headlight cleaner

2 RDI FAN 40 A Electric cooling fan

3 ABS NO. 3

30 A

Anti-lock brake system, vehicle sta-

bility control system

4 ABS NO. 1 50 A

Anti-lock brake system, vehicle sta-

bility control system

5 HTR 50 A Air conditioning system

6ALT

120 A

RDI FAN, H-LP CLN, ABS NO. 1,

ABS NO. 3, ABS NO. 2, HTR, HTR

SUB NO. 1, HTR SUB NO. 2, HTR

SUB NO. 3, STV HTR, ACC, CIG,

METER, IGN, ECU-IG NO. 2, HTR-

IG, WIPER, WASHER, ECU-IG

NO. 1, SEAT HTR, AM1, DOOR,

STOP, FR DOOR, POWER, RR

DOOR, RL DOOR, OBD, ACC-B,

RR FOG, FR FOG, DEF, MIR HTR,

TAIL, PANEL

140 A
