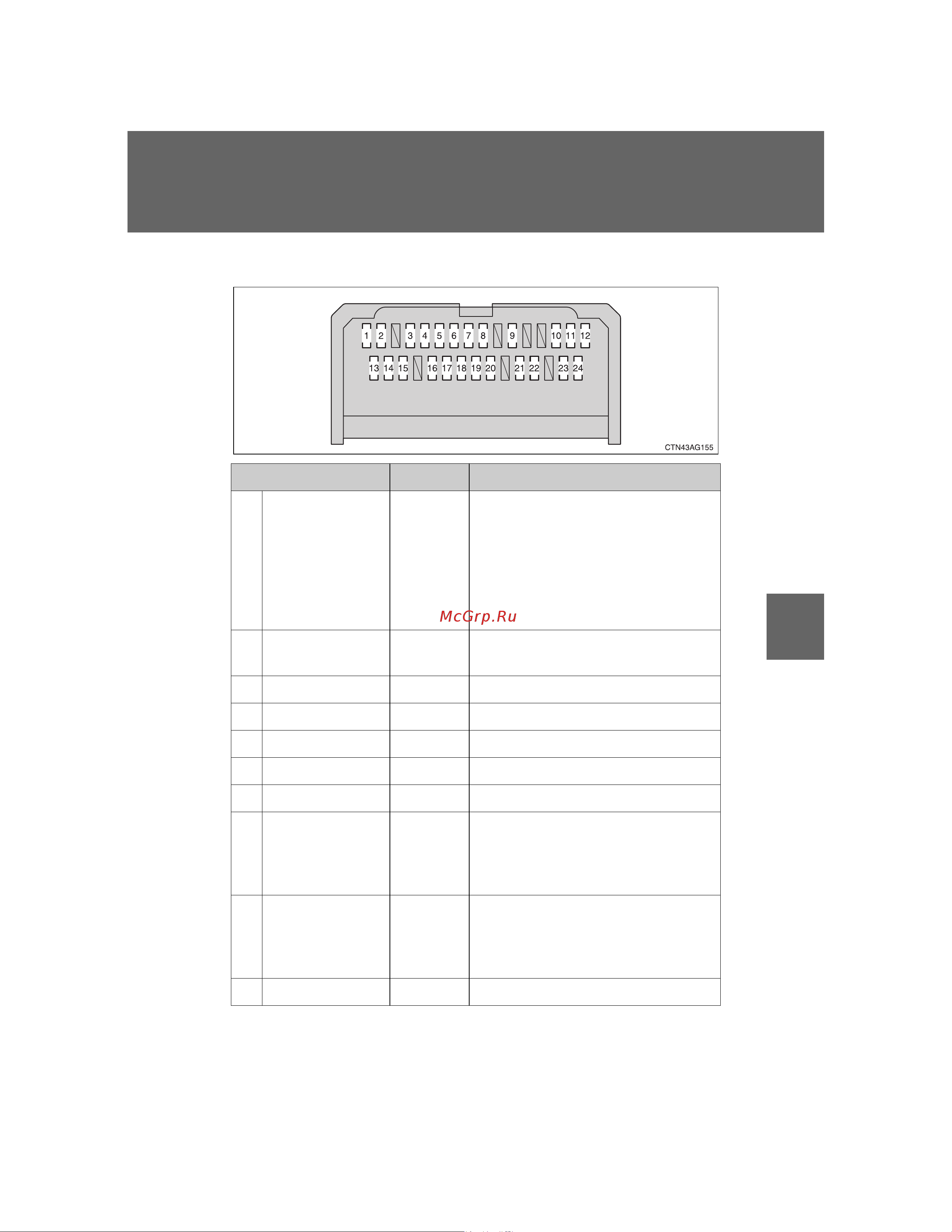

 Instrument panel (type A)

Fuse Ampere Circuit

1TAIL 10 A

Front position lights, tail lights,

license plate lights, rear fog light,

front fog lights, manual headlight

leveling dial, multiport fuel injection

system/sequential multiport fuel

injection system, instrument cluster

lights

2 PANEL 7.5 A

Switch illumination, instrument

cluster lights, main body ECU

3 FR DOOR 20 A Power windows

4 RL DOOR 20 A Power windows

5 RR DOOR 20 A Power windows

6 SUNROOF 20 A No circuit

7 CIG 15 A Cigarette lighter

8ACC 7.5 A

Outside rear view mirrors, audio

system, main body ECU, smart

entry & start system, rear view

monitor system

9MIR HTR 10 A

Outside rear view mirror defoggers,

multiport fuel injection system/

sequential multiport fuel injection

system

10 RR FOG 7.5 A Rear fog light
