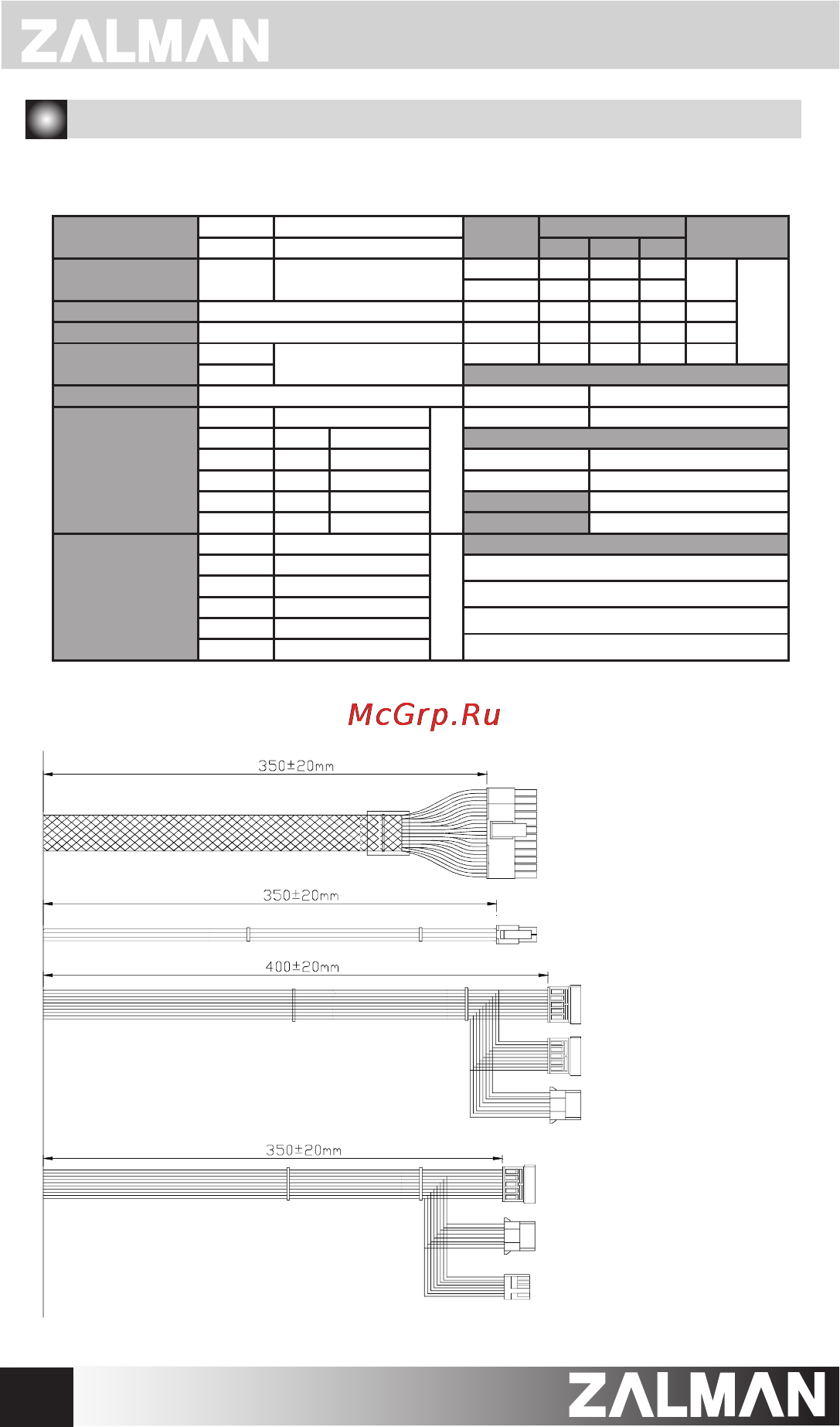

4. Specications
1) ZM350-FX Electrical & Physical Specications
2) ZM350-FX Cable Specications
AC Input Range
Voltage 100~240VAC
Vout
Output Load Rating
Combined
Power
Frequency 50Hz ~ 60Hz I
min
I
max
I
peak
AC Input Current
100 ~
240VAC
5.5A
+3.3V 0.1A 16A
105W
350W
+5V 0.2A 15A
PFC Type Active PFC
+12V 0.1A 27A 324W
Power Factor Correction Max 99%
-12V 0.0A 0.3A 3.6W
Inrush Current Limit
(@ Cold Start at 25℃)
115VAC
Max 100A
+5VSB 0.0A 3.0A 3.5A 15W
230VAC Ambient Temperature
Eciency Max 88% @230VAC, Typical load Operation 0 ~ +40℃
DC Output Voltage
Regulation
Vout Regulation Range
At
Full
Load
Storage -20 ~ +70℃
+3.3VDC ±5% +3.14 ~ +3.47V Ambient Humidity
+5VDC ±5% +4.75 ~ +5.25V Operation 5% ~ 95% RH
+12VDC ±5% +11.4 ~ +12.6V Storage 5% ~ 95% RH
-12VDC ±10% -10.8 ~ -13.0V Dimensions 100(L)*125(W)*80(H)mm
+5VSB ±5% +4.75 ~ +5.25V Weight 1.3kg
DC Output Ripple
& Noise
Vout Standard Range
At
Full
Load
Protection Funtions
+3.3VDC 50mV
Over-Voltage Protection (OVP)
+5VDC 50mV
Under Voltage Protection (UVP)
+12VDC 120mV
Short- Cicuit Protection (SCP)
-12VDC 120mV
Over-Power Protection (OPP)
+5VSB 50mV
Mainboard Power Connector
CPU Power Connector
S-ATA Power Connector
S-ATA Power Connector
ODD/HDD Power Connector
S-ATA Power Connector
ODD/HDD Power Connector
FDD Power Connector
