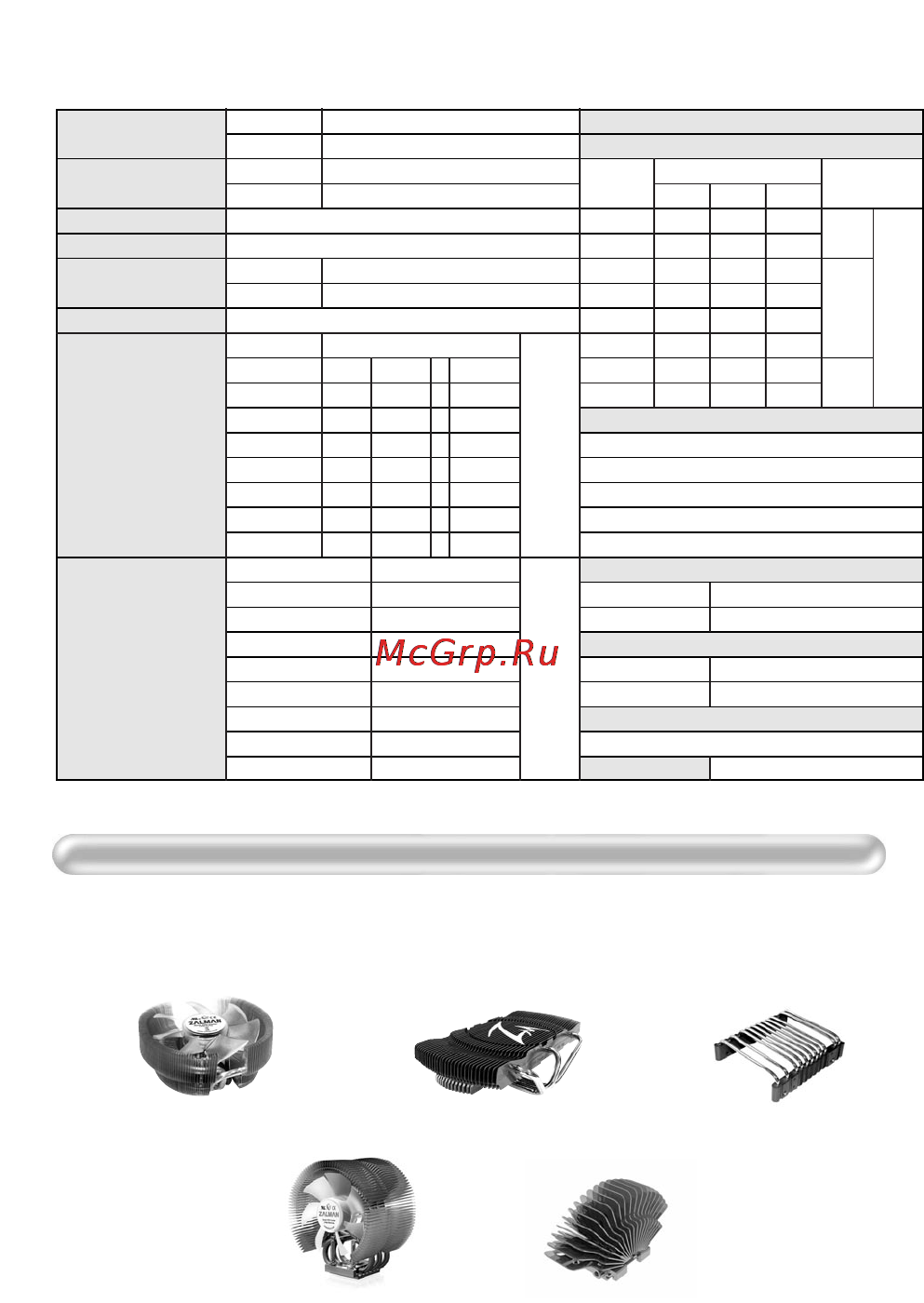

Electrical & Physical Specifications
6.
Zalman’s CNPS (Computer Noise Prevention System) Products
For a stable and noiseless system of the highest quality, use Zalman’s Ultra Quiet CPU
Coolers, Ultra Quiet VGA Coolers, Heatpipe HDD Coolers, Fanless Northbridge Coolers, and
Noiseless Case Fans.
UUllttrraa QQuuiieett CCPPUU CCoooolleerr FFaannlleessss NNoorrtthhbbrriiddggee CCoooolleerr
UUllttrraa QQuuiieett CCPPUU CCoooolleerr HHeeaattppiippee HHDDDD CCoooolleerrFFaannlleessss VVGGAA CCoooolleerr
AC Input Range
AC Input Range
(Rated)
PFC Type
Power Factor
Efficiency
Inrush Current Limit
(@ Cold start at 25℃)
DC Output Voltage
Regulations
At Full
Load
At Full
Load
DC Output Ripple &
Noise
Voltage 100VAC ~ 240VAC ±10%
Frequency 47Hz ~ 63Hz
115VAC 12A
230VAC 5.5A
Active PFC
99% Maximum
115VAC 60A
230VAC 100A
86% Max, @230VAC, Typical load
Vout Regulation Range
+3.3VDC ±5% +3.14V ~ +3.47V
+5VDC ±5% +4.75V ~ +5.25V
+12V1DC ±5% +11.4V ~ +12.6V
+12V2DC ±5% +11.4V ~ +12.6V
+12V3DC ±5% +11.4V ~ +12.6V
+12V4DC ±5% +11.4V ~ +12.6V
-12VDC ±10% -10.8V ~ -13.0V
+5VSB ±5% +4.75V ~ +5.25V
DC Output
ZM750-HP
Vout
Output Load Rating
Combined
I
min
I
max
I
peak
Power
+3.3V 0.8A 30A
160W
+5V 0.5A 30A
+12V1 0.5A 20A
+12V2 0.5A 20A
+12V3 0.5A 20A
720W 750W
+12V4 0.5A 20A
-12V 0.0A 0.8A
22.1W
+5VSB 0.0A 2.5A 3.5A
Ambient Temperature
Operation 10℃ ~ +50℃
Stored -20℃ ~ +80℃
Ambient Humidity
Operation 5%RH ~ 95%RH
Stored 5%RH ~ 95%RH
Dimensions
165mm(L) * 150mm(W) * 86mm(H)
MTBF(25℃) 100,000
hours
Protection
Over-Voltage Protection (OVP)
Over-Current Protection (OCP)
Under-Voltage Protection (UVP)
Short Circuit Protection (SCP)
Over - Temperature Protection (OTP)
Vout Specification
+3.3VDC 80mV
+5VDC 80mV
+12V1DC 150mV
+12V2DC 150mV
+12V3DC 150mV
+12V4DC 150mV
-12VDC 150mV
+5VSB 80mV
