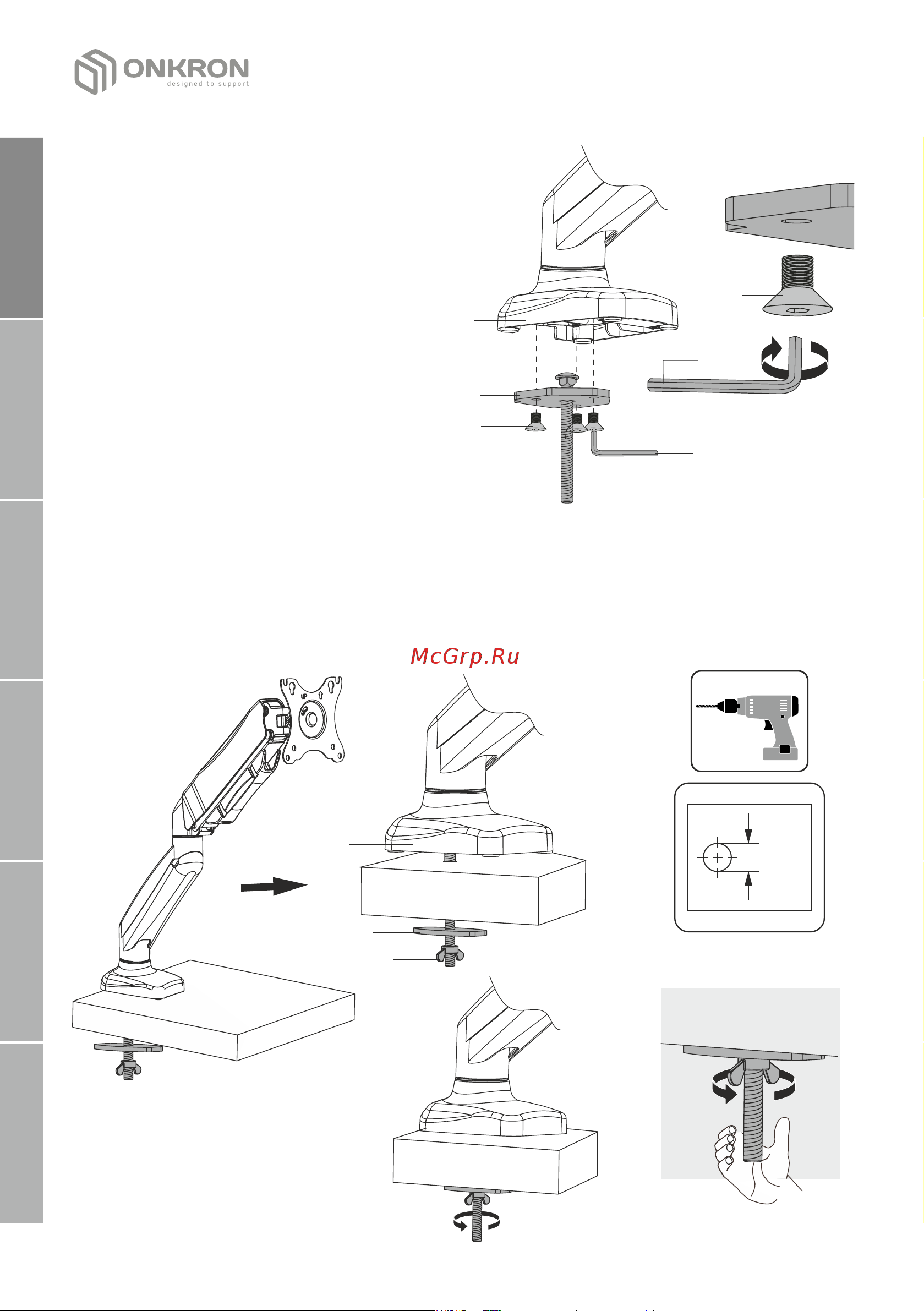

џ I n s t a l l t h e b o l t G i n t o t h e

triangular plate (E)

џ Fix the plate (E) to the base of the

bracket (A) with three screws (D)

using the key (I).

џ Drill a hole in the desk.

џ Install the bracket through the hole in the desktop and secure it to

the underside of the desktop with washer (H) and nut (F).

desk

Ø10-20 mm

Ø0.4"-0.78"

b) Through hole installation onto the desk:

desk

ATTENTION:

min hole diameter = 10 mm (0.4")in the desk

max hole diameter = 20 mm (0.78")in the desk

desk
