VESA 100

VESA 75

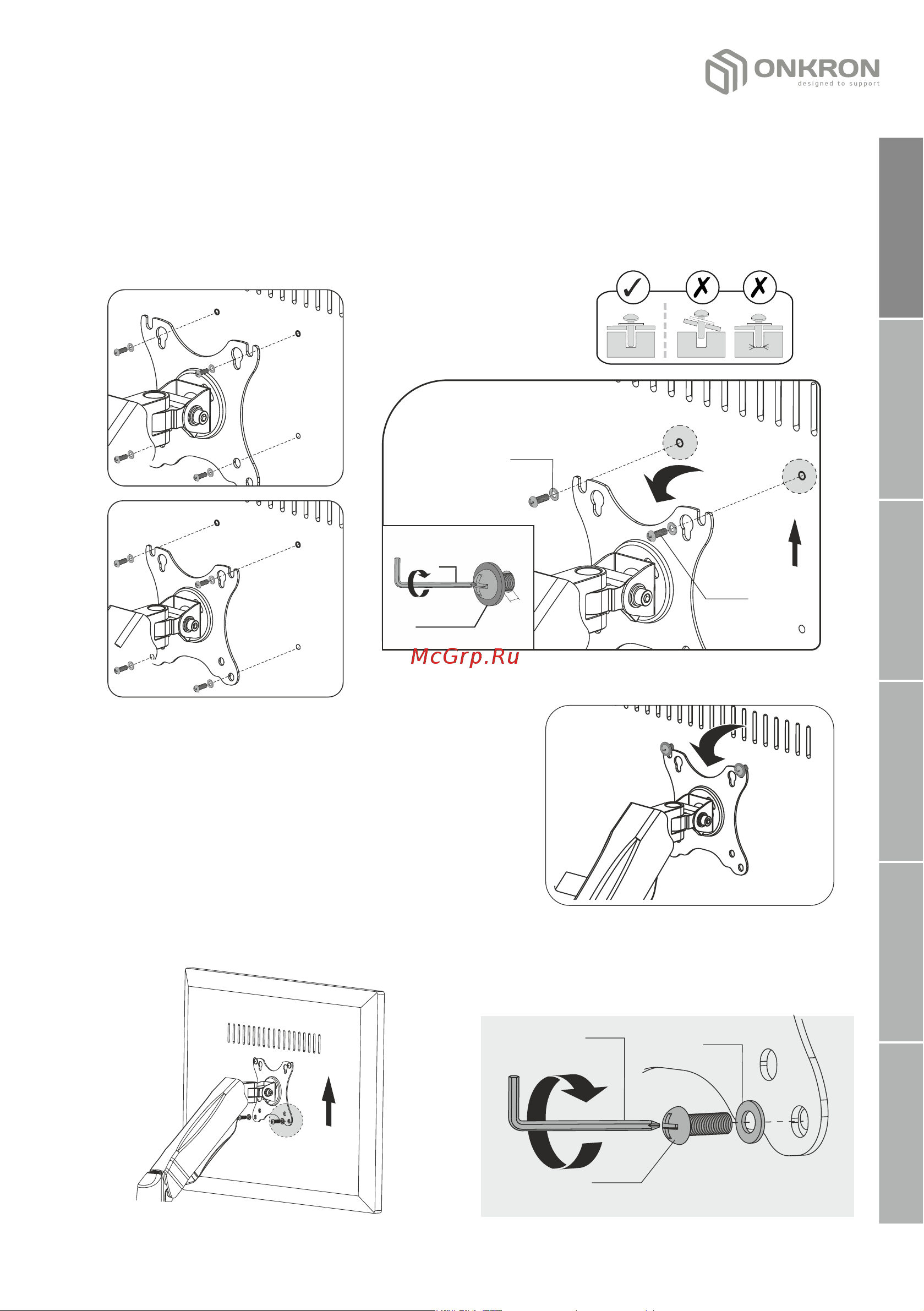

2. VESA panel installation to the monitor

Use M-A or M-B screws depending on the VESA hole size of the monitor. Use

the key (J) to screw the appropriate screws М-А or М-В and washers М-С

into the upper VESA holes of the monitor, without turning 3 mm (0.11") to

the surface of the monitor:

M-B

M-A

M-C

M-B

M-A

џ Carefully install the monitor onto the

arm so that the screwed-in screws fall

into the upper grooves of the VESA

panel.

M-B

M-A

M-C

џ Fix the screen to the lower holes of the

VESA panel with the two remaining

screws М-А or М-В and washers М-С

using the key (J).

3 mm

0.11"
