ZM-NB47J
Features
1. ZM-NB47J does not require a fan, and thus does not need to be powered and does not create noise or vibration.
2. The Northbridge chipset can be cooled down to an optimal temperature without generation of noise.
Attention 1)
Zalman is not responsible for any system damage caused by overclocking.
2)
There should be air-flow around the chipset.
* Recommendation : When used with CPU coolers such as CNPS6000-XXXX (socket462)
and CNPS6500B-XXXX (socket478) having FB123, or with CNPS7000-XXXX
(socket478/754), more stable and silent operation can be achieved.
Components
1) One ZM-NB47J Heatsink 2) One Supply of Thermal Grease
3) Bolts, Nuts, Links, Push Pins, Springs (Two of Each)
Heatsink Specifications
1) Model : ZM-NB47J 2) Dimensions : 37(L) X 37(W) X 47(H) mm
3) Material : Aluminum 4) Weight : 54g
Compatible Northbridge Chipsets
ZM-NB47J is compatible with all Northbridge chipsets that do not have a built-in graphics chipset.
Note 1)
ZM-NB47J cannot be used on motherboards that lack mounting holes around the Northbridge chipset.
2)
If the provided push pins don’t match the holes on the motherboard, any matching push pins
may be used instead.
3)
Do not install ZM-NB47J if it interferes with components on the motherboard.
< How to Install >
Caution < ! >
Thermal grease is harmful to skin and eyes. In the event of skin contact, clean off promptly
with water. In the event of eye contact, contact a doctor.
* CNPS stands for Computer Noise Prevention System and is a registered trademark of Zalman.
* The specifications of any product may change without prior notice to improve the performance thereof.
Thermal Grease
Northbridge
Chipset
{{
Nut
Bolt
Link
Assembly
Link
Push Pin
Spring

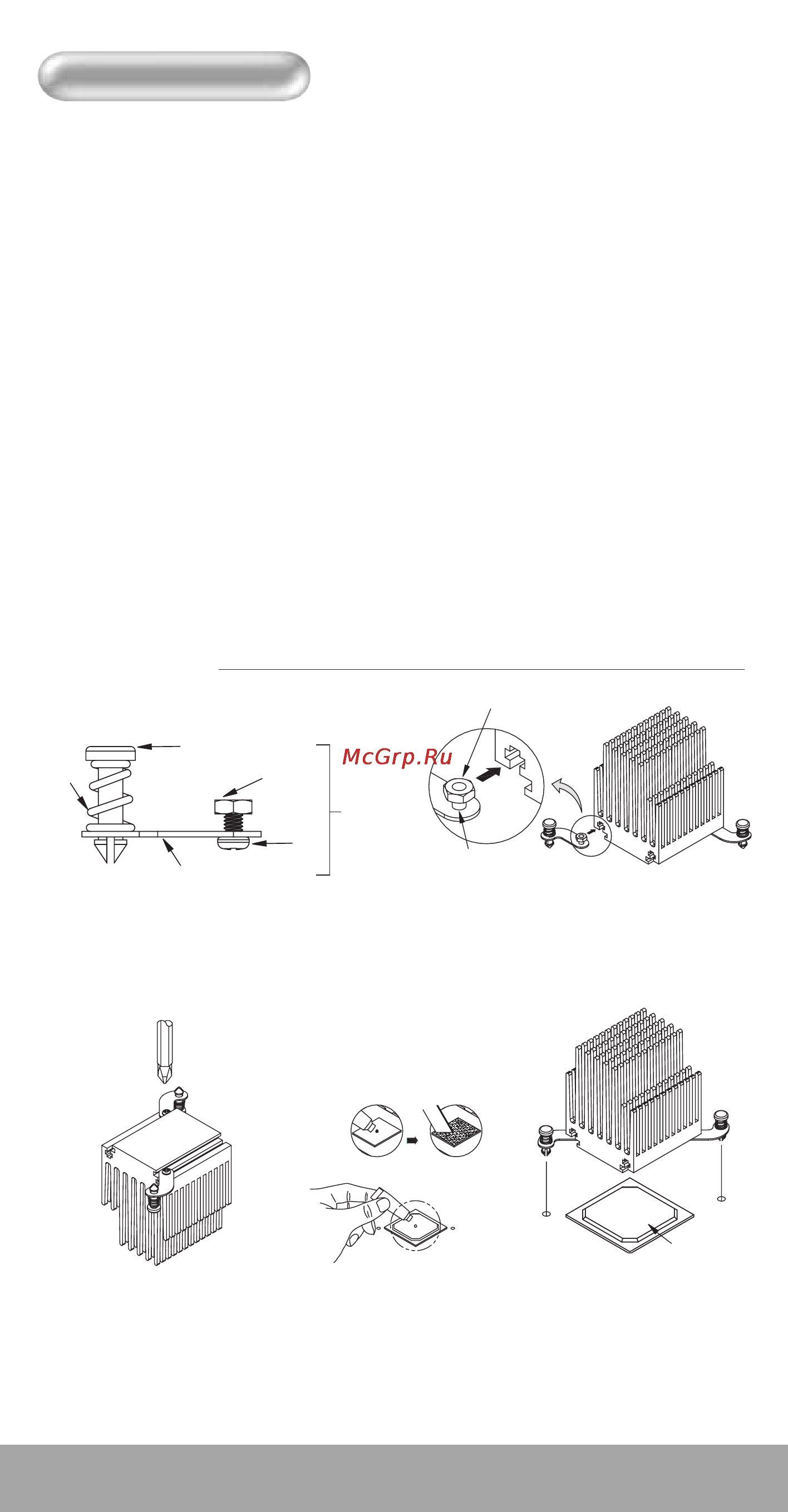

1. Insert the bolt into the bolt hole of the link and screw on the nut
as shown in the diagram. Then, assemble the push pin and
the spring onto the link. (The end of the spring having the
smaller diameter goes with the head of the push pin.)
Link Assembly
Link
Nut
2. Adjust the nut to the appropriate height and insert
the link assembly into the groove on the ZM-NB47J
in the direction of the arrow.
3. Align the push pins on the link assembly
with the holes on the motherboard and
fasten the bolts.
4. Clean the surface of the Northbridge
chipset and spread the included
thermal grease evenly thereon.
5. Insert the push pins into the mounting
holes on the motherboard and ensure
they remain firmly in place.
