2. Check whether or not nipples (spacers) for installing a CPU cooler are mounted between the mainboard and

the computer case.

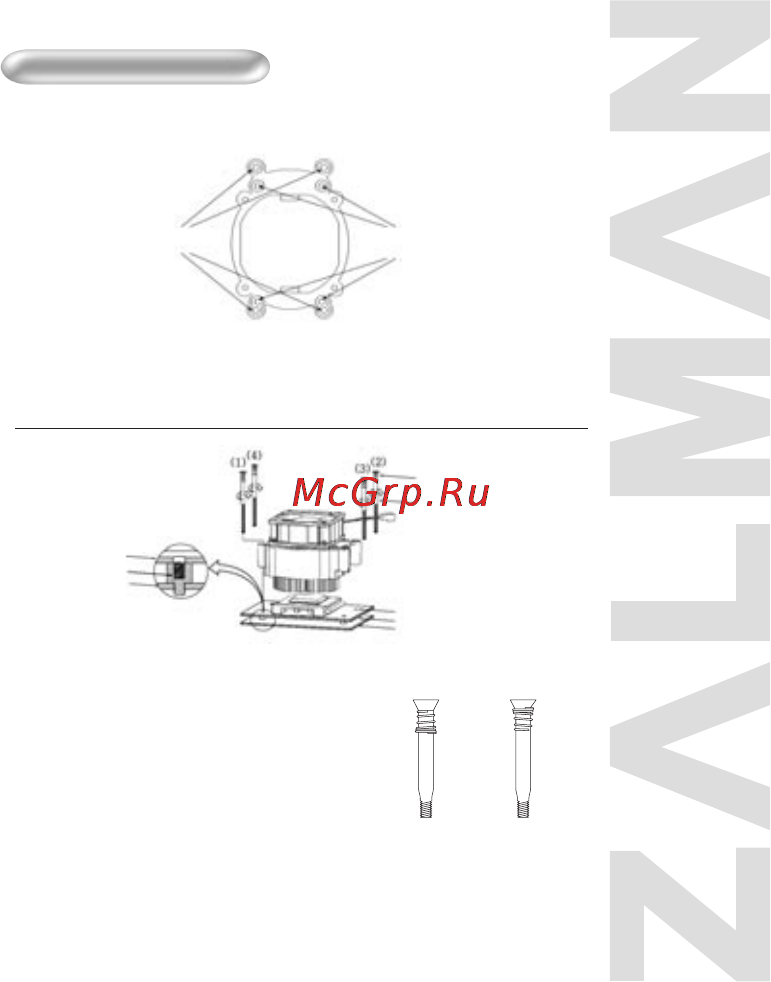

◆ Installation in a Computer Case Having Nipples (spacers) for Installing a CPU Cooler (See Figure 2)

- 3 -

< Figure 1 >

* The specifications of any product may change without prior notice to improve the performance thereof.

AMD CPU

Intel P4 CPU

(1) Insert one of the provided bolts A into a tapered

spring as shown in Figure 2, and insert the bolt

A into an appropriate mounting hole (See Figure 1)

of the cooler body. Repeat until four bolts are in

stalled in the cooler body. (Caution! The diameter

of the spring increases from one end to the other

end. The end of the spring having a smaller

diameter should be directed to the head of the bolt

as shown in Figure 3.)

(2) Spread the thermal grease, which is provided together

with the cooler, on the surface of the CPU core.

Good

Bad

< Figure 2 >

Spring

Bolt A(59-63mm)

Hole

Mainboard

Case

Mainboard

Case Nipple

Case

< Figure 3 >

1. First, check whether your CPU is a P4 CPU or an AMD CPU. Then, depending on the type of CPU,

insert the bolts (A or B) into the appropriate holes in the cooler body (See Figure 1).

IInnssttaallllaattiioonn ooff FFHHSS
