- 4 -

* The specifications of any product may change without prior notice to improve the performance thereof.

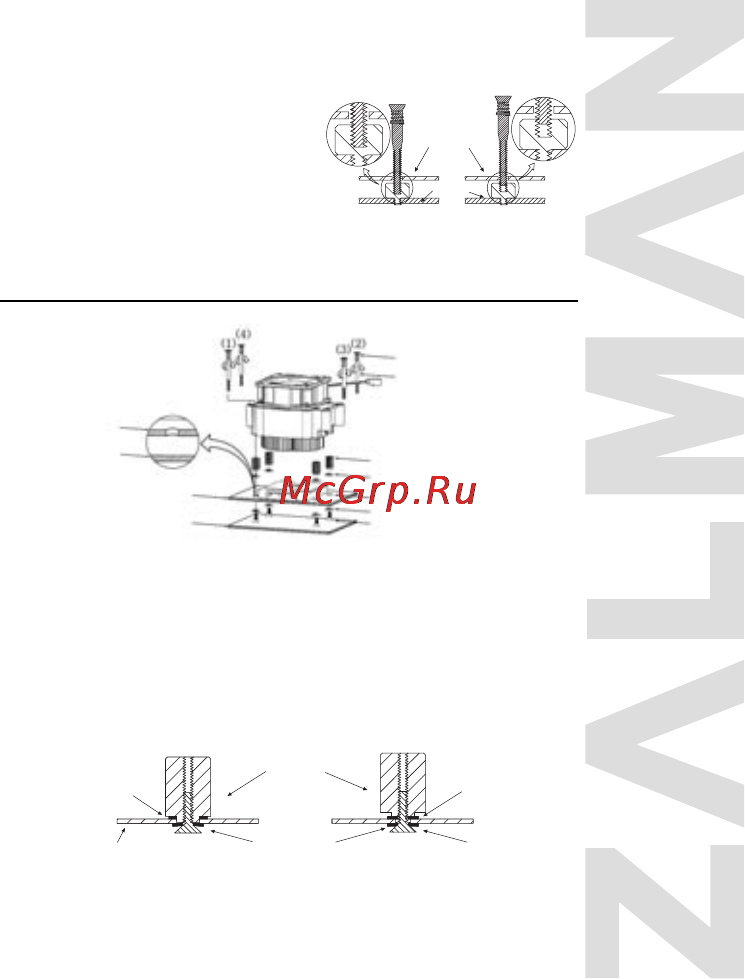

(1) Detach the mainboard from the computer case. Mount the provided nipples, bolts C, and washers (A or B)

on the mainboard as shown in Figures 5 and 6, then reattach the mainboard to the computer case.

(Caution! Different washers are used depending on the size of the holes formed around the CPU socket on the

mainboard. That is, if the size of the holes is 6 mm as shown in Figure 6(A), washer A and B is used, and if the

size of the holes is 4 mm as shown in Figure 6(B), only washer B is used. A bolt with a washer is used for the

upper part of the mainboard and another bolt with a washer isused for the lower part of the mainboard.)

(3) Check the locations of the holes around the socket

and those of the bolts A mounted in the mounting

holes, and then place the FHS horizontally on the

center of the CPU.

(4) To make the FHS completely contact the CPU core

(this is important to protect the CPU core from

overheating), tighten each bolt A by one turn in the

order shown in Figure 2 (i.e., in a diagonal sequence)

with a screw driver until they no longer go in

(as shown in Figure 4).

◆ Installation in a Computer Case That Does Not Have Nipples for Installing a CPU Cooler (See Figure 5)

< Figure 5 >

< Figure 6 >

< A >

< B >

Washer A

(Inside Diameter : 6mm)

Bolt C

Nipple

Washer B

(Inside Diameter : 4mm)

Washer B

(Inside Diameter : 4mm)

Mainboard

< Figure 4 >

Good

Bad

Mainboard

Case

Washer (A or B)

Spring

Bolt B(42-47mm)

Nipple

Hole

Washer B

Bolt C(6∼13mm)

Mainboard

Case

Mainboard

Case
