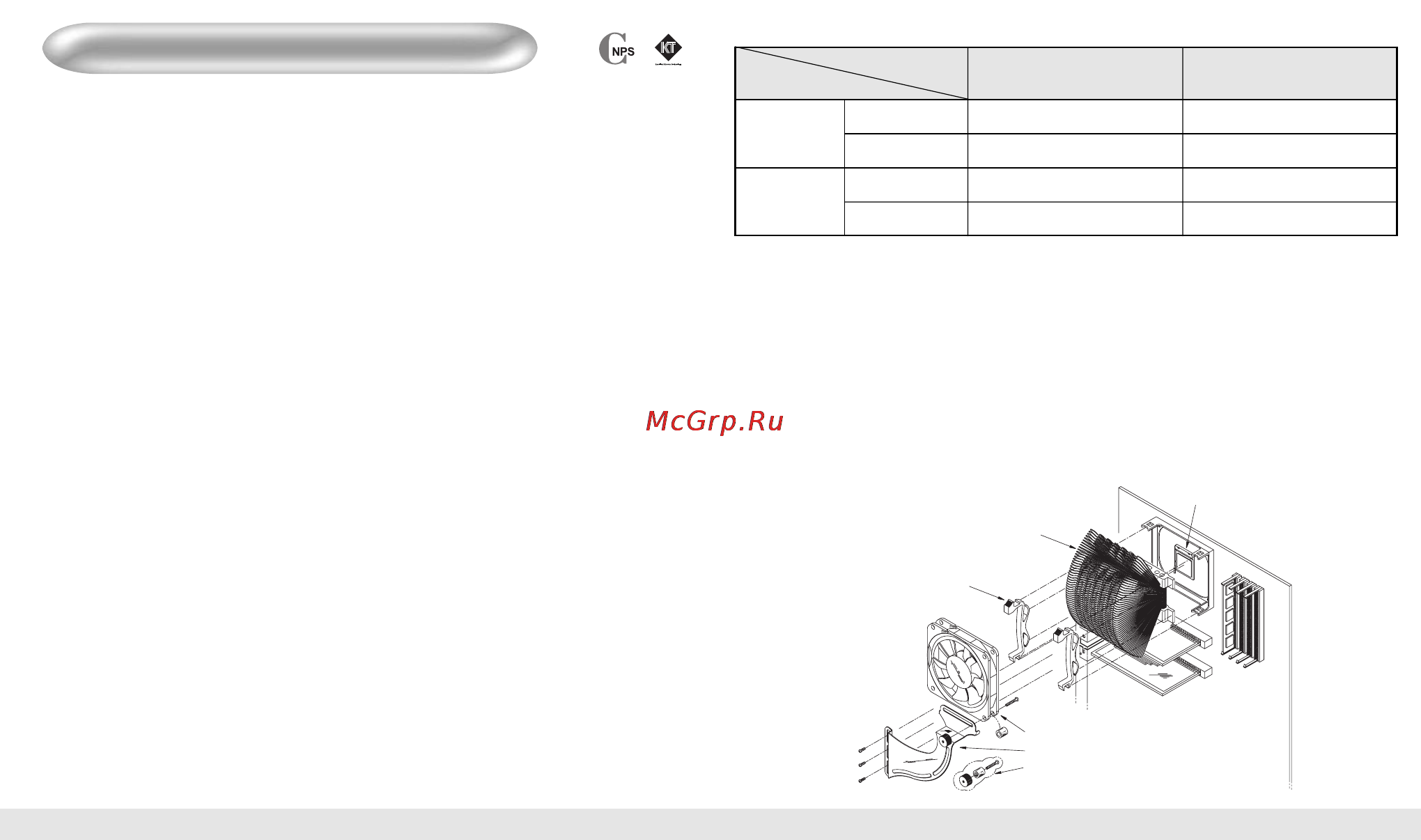

![Zalman CNPS6500A-Cu [2/4] Korean patent nos 317450 and 317451](/views2/1111566/page2/bg2.png)
Note) Willamette is discontinued at 2.0GHz
Note) At present, the most powerful Intel CPU (Northwood) is the Socket 478 Pentium 4
with a speed of
2.8
GHz. Before using this product with a more powerful CPU, please
check Zalman’s website (www.zalman.co.kr) for compatibility notes.
4. CPU Compatibility: INTEL Pentium 4 (Socket 478)
5. Patents
Patent Applications pending in over 20 nations around the world, including
the U.S., E.U., and Japan
Korean Patent Nos. 317450 and 317451
Model
Mode
CNPS6500B-AlCu
CNPS6500B-Cu
Willa
mette
(0.18 micron)
North
wood
(0.13 micron)
Silent Mode
Normal Mode
Silent Mode
Normal Mode
2.8 GHz
Over 2.8 GHz
Over 2.8 GHz
Over 2.8 GHz
Up to 1.8 GHz
2.0 GHz
Up to 2.0 GHz
2.0 GHz
Zalman’s 6500B-AlCu / 6500B-Cu coolers have an extended heat dissipating
area and include a new fan assembly (FB123) with an adjustable bracket and a
bigger fan (92mm) for maximum cooling performance.
* The specifications of any product may change without prior notice to improve the performance thereof.
1. Features
1) Zalman’s CPU Coolers do not generate noise and vibration in Silent Mode.
2) Separation of the FHS from the CPU fan prevents transfer of the fan's vibration to the CPU.
3) By utilizing a 92mm fan, both the CPU and the motherboard chipset are cooled.
4) The cooling fan can be mounted at any desired location making it compatible with
virtually all computer cases and motherboards
(Note : computer cases that have the power supply covering the CPU cannot be used).
5) With the included adjustable fan speed connector, the user can freely adjust the
CPU fan's RPM.
6) Zalman’s CPU Coolers enable very stable operation of a CPU in an OVERCLOCKED
environment.
* When OVERCLOCKING, please make sure to use Normal Mode.
* Zalman Tech. Co., Ltd. is not responsible for any damage to a system or a CPU
caused by CPU OVERCLOCKING.
2. Components
1) FHS : ZM6568CD-XXXX 2) NP FAN & Bracket : FB123
3) For placing FB123 - inch type bolts / mm type bolts - three each
4) Thermal Grease 5) Two Clips
6) Two Reinforcers
7) One Adjustable Fan Speed Connector (FAN MATE 1)
CNPS6500B-AlCu, CNPS6500B-Cu
Clip
FB123
Fan
Br123
Fan Fix
Assy
FHS
CPU & Socket
}
