Zalman CNPS7000A-AlCu [6/9] Fasten bolts

* The specifications of any product may change without prior notice to improve the performance thereof.

7. Installation

(INTEL Pentium 4-478)

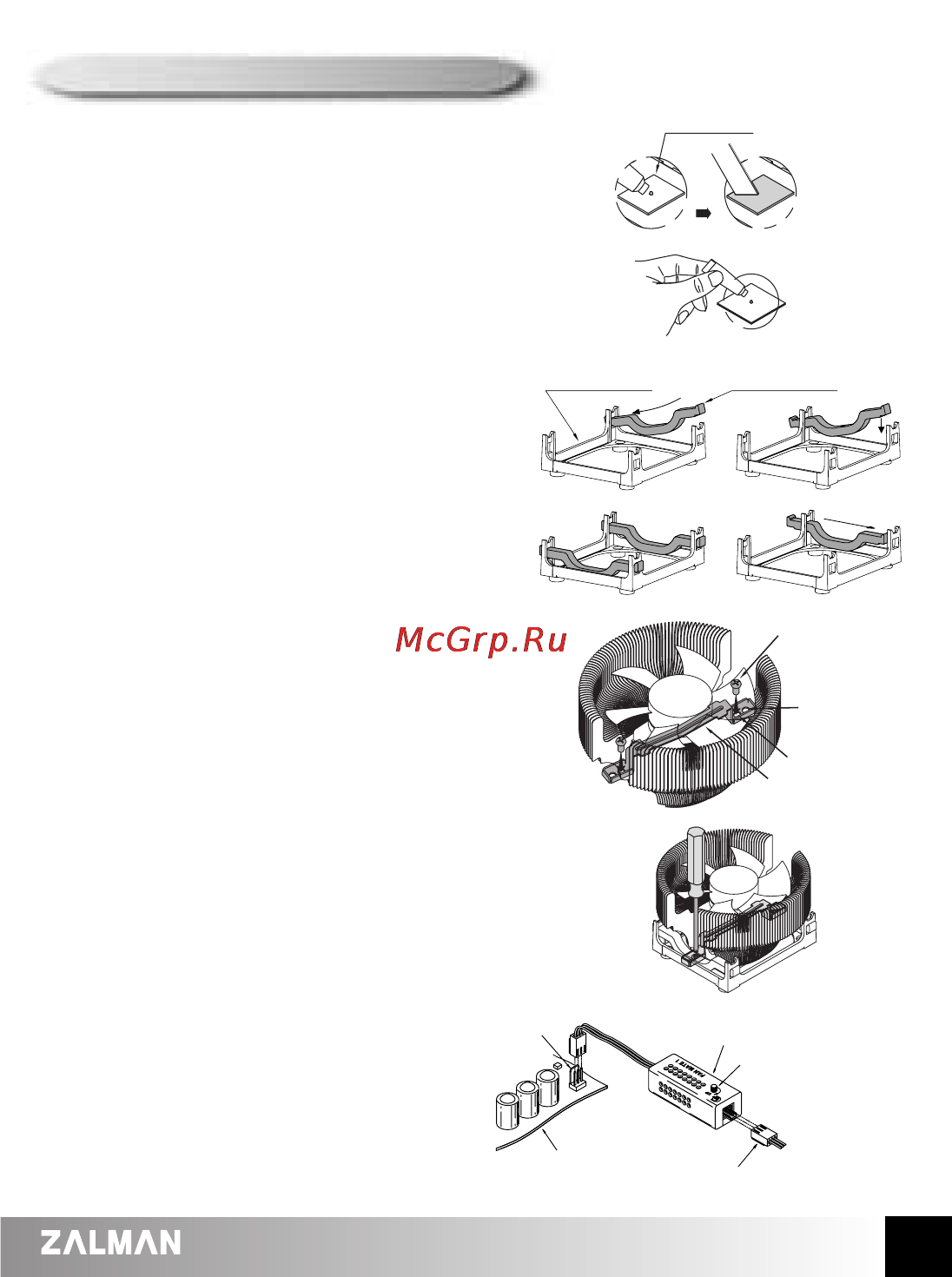

1) Apply Thermal Grease

Spread thermal grease thinly and evenly

over the CPU core.

2) Install Clip Support

Install the two clip supports at both sides

of the retention guide as shown on the

right.

3) Insert Bolts

Insert the bolts into the inner holes on the clip.

4) Fasten Bolts

Place the FHS on the center of the CPU.

Screw in both bolts in an alternating

fashion until they are completely tightened.

5) Supply Power

Connect FAN MATE 1 between the

motherboard and the fan.

CPU (IHS)

Thermal Grease

Retention Guide

Clip Support

Bolt

Outer Hole

Inter Hole

Clip

󳃨

󳃧

󳃪

3-Pin Fan

Connector

(Mainboard)

Mainboard

FAN MATE 1

Speed Control Knob

3-Pin Fan Connector

(CNPS7000A)
