VGA Heatpipe Cooler
11. Spread the Thermal Grease on the Front Side Heatsink

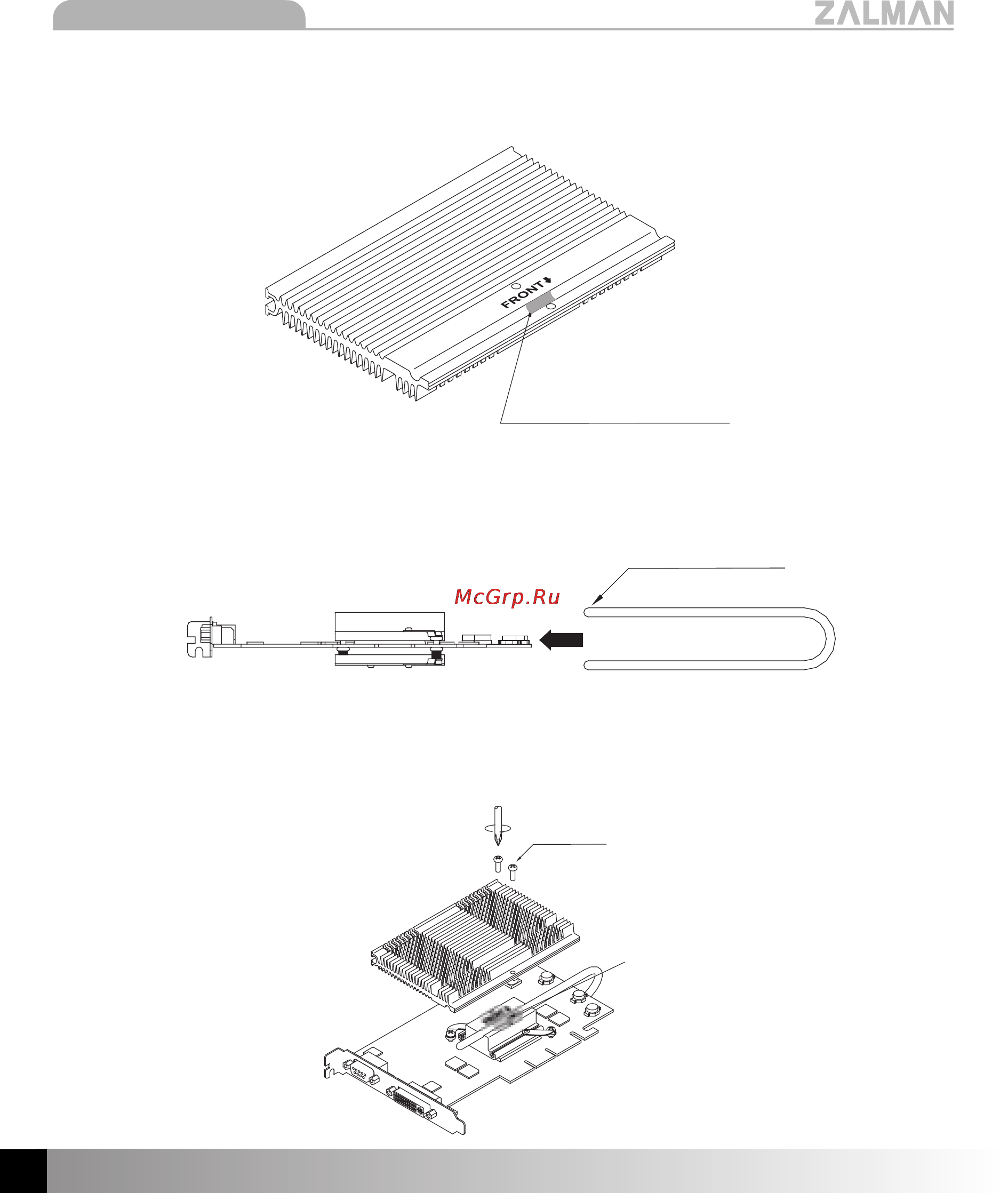

Evenly spread the thermal grease onto the indicated area of the Front Side Heatsink as shown in
the diagram.
12. Install the Heatpipe
The heatpipe should be inserted on the two heatsink base assemblies (installed on the GPU) as
shown in the diagram.
13. Install the Front Side Heatsink
Place the Front Side Heatsink over the Front Side Heatsink Base and slightly screw in the two
Bolt-B’s.
Front
Front
Back
Apply Thermal Grease Here
(Groove for Heatpipe)
Apply Thermal Grease Here
Bolt-B
Heatpipe
