HD160XT Plus

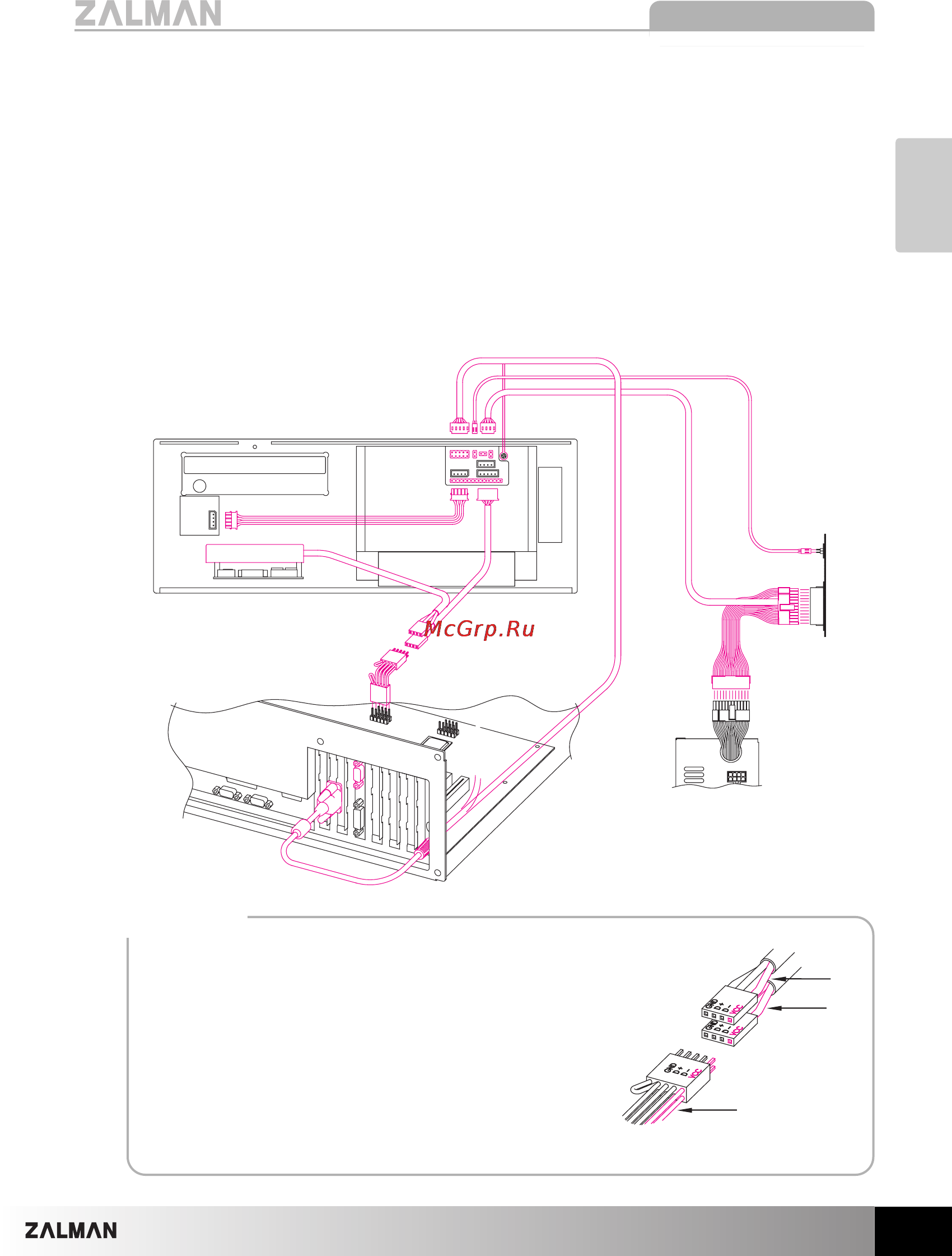

4) LCD and Card Reader PCB Cables

① Connect the D-SUB (RGB) Cable to the system’s (VGA or motherboard) D-SUB

(RGB) Port.

② Connect the Dual USB Cable that is connected to the USB Cable of the LCD and Card

Reader PCB to the motherboard’s USB Port.

③ Connect the System Power Switch Cable (2-Pin) with the motherboard’s Front Panel

Port (Refer to the motherboard manual).

④ Connect the Standby Power Cable (20-Pin or 24-Pin) to the motherboard and power

supply.

If the individual USB connectors of the LCD and

Card Reader PCB get disconnected from the Dual

USB Cable, the VCC (red) wires MUST be aligned

when reconnecting the individual USB connectors

of the LCD and Card Reader PCB to the Dual USB

Cable. Incorrect alignment will cause a short circuit,

damage the components, and can be a fire hazard.

CAUTION)

Red

M/B

PSU
