The maximum permitted deviation on the measuring distance of 2×5m=10m is as fol-

lows:

10m×±0.3mm/m=±3mm. The discrepancy d between pointsⅠ and Ⅲ must therefore

amount to no more than 3mm.

Checking the Level Accuracy of the Horizontal Line

For this check, you will need a free area of 5×5m.

– Mount the measuring tool in the middle between wallsA and B on the holder or a tri-

pod, or place it on a firm, flat surface. Switch on the measuring tool with the auto-

matic levelling function enabled and select horizontal mode. Allow the measuring tool

to level in.

2,5 m

5,0 m

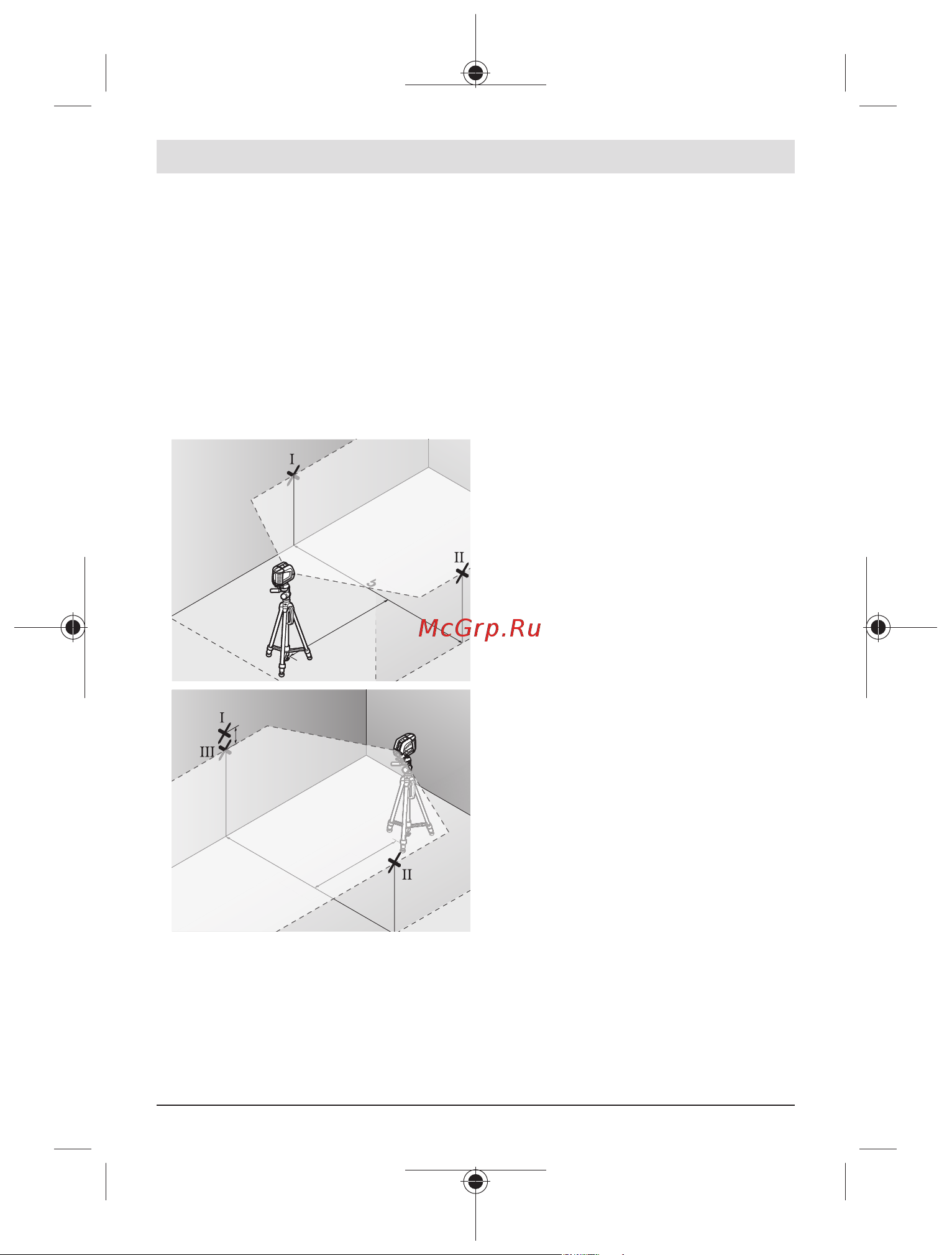

– At a distance of 2.5m from the measur-

ing tool, mark the centre of the laser line

on both walls (pointⅠ on wallA and

pointⅡ on wallB).

2,5 m

5,0 m

2,5 m

0 m

– Set up the measuring tool at a 5m dis-

tance and rotated by 180° and allow it to

level in.

– Align the height of the measuring tool (using the tripod or by placing objects under-

neath as required) so that the centre of the laser line exactly hits the previously

marked pointⅡ on wallB.

– Mark the centre of the laser line on wallA as pointⅢ (vertically above or below

pointⅠ).
