TeraStation Setup Manual 40
• Conguring a Hot Spare
If you have 3 drives in a RAID 5 array, or 2 drives in a RAID 1 array, then you can congure another drive as a hot spare. If
one of the drives in the array fails, the TeraStation will switch over to the hot spare immediately.
1
2
3
Notes:
If a hot spare is congured, click [Set to normal disk] to change the hot spare to a normal disk.
4
The conrm operation screen will appear. Enter the number shown in the [Conrmation Number] eld within 60
seconds and click [Apply].
5
Follow the instructions displayed on the screen.
You have now congured a hot spare.
Note:
All data in the hot spare drive will be deleted when it is congured as a hot spare and again when it changes over from
a spare to a drive in the array.

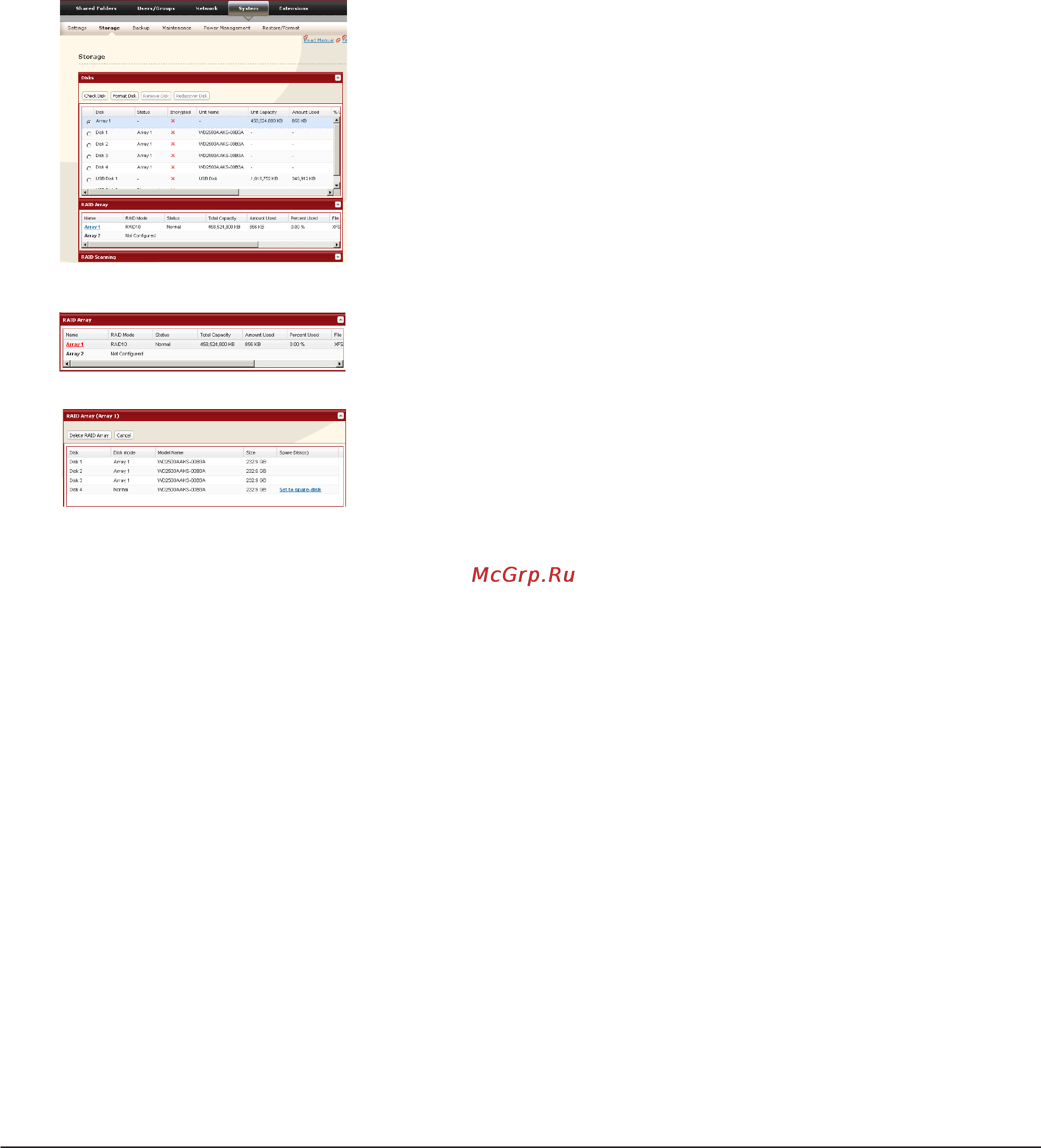

Click an array which is set either RAID5
or RAID1.
Click [Set to spare-disk].
Click [System] - [Storage] - [RAID Array] in the Web Admin.
