ONLY A QUALIFIED TECHNICIAN CAN INSTALL, ADJUST AND MAINTAIN THIS HAND

DRYER, IN ORDER TO ACCOMPLISH THE LEGAL REQUIREMENTS.

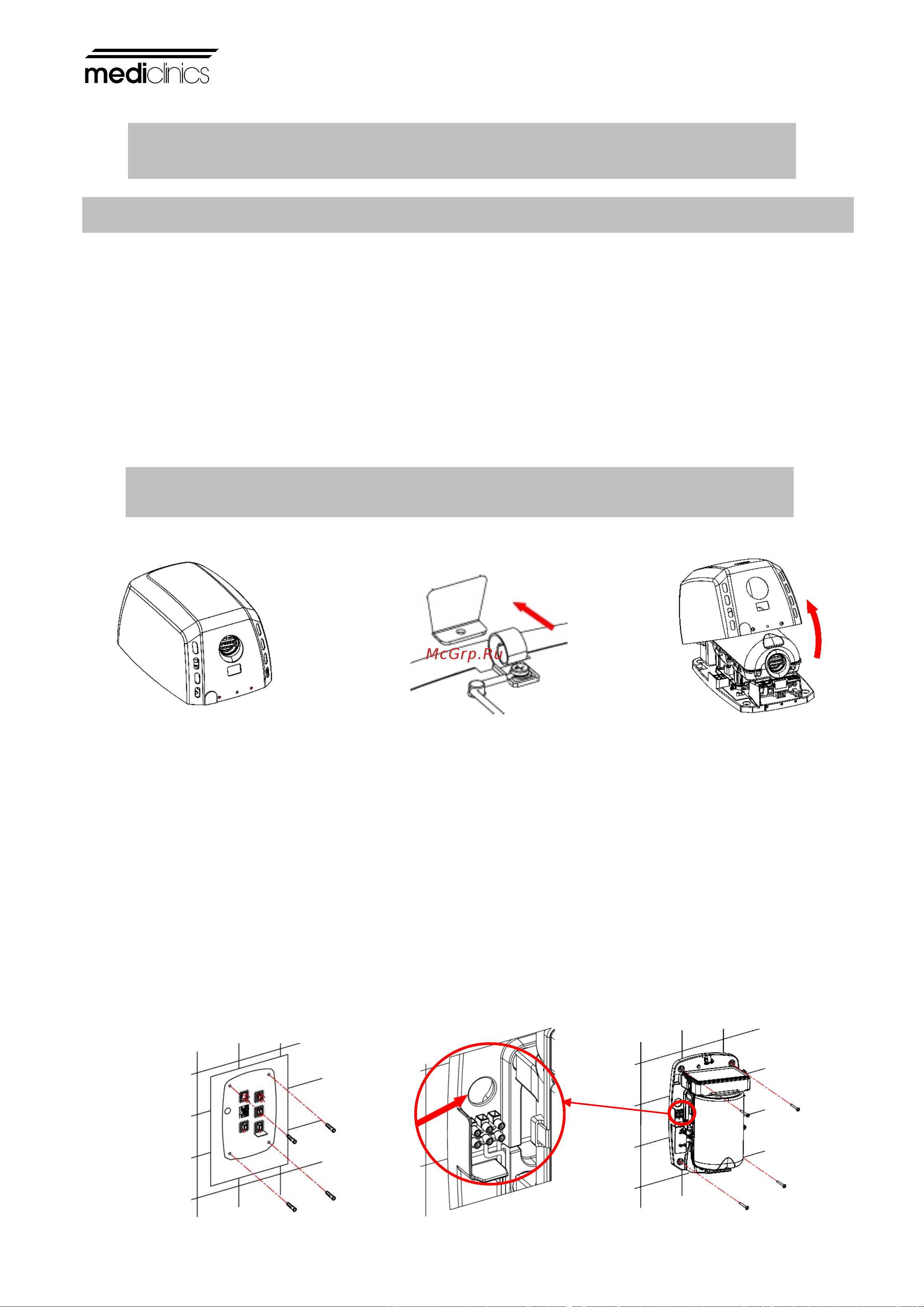

Removal of the casing.

• The hand dryer is supplied with the casing fitted to the base without tightening (Figure 1).

• Carefully remove the casing since it is connected to the base by a tab that joins the two

pieces (casing and base) at the rear (Figure 2).

• Remove the casing keeping it at an angle at all times (Figure 3) until the upper tab is

completely withdrawn, taking care to:

✓ not damage the internal components, in particular the electronic circuit,

✓ not scratch or damage the LED sensor screen,

✓ not damage the surface of the casing.

ATTENTION: WHEN THE CASING IS DISMANTLED ACTIVE PARTS OF THE DEVICE

BECOME ACCESSIBLE.

Assembly

Connection to the power grid will be preferably through the rear plug.

In order to assemble the hand dryer complete the following steps:

• Make four drill holes with an 8 mm (0,31”) diameter in the wall, using the provided

template (Figure 4).

• Clean the dust away from the holes and insert the wall plugs.

• Pass the electrical cables from the power grid through the hole with the 22 mm (0,87”)

diameter which is situated above the device’s terminal strip (Figure 5).

• Firmly screw the base of the device to the wall (Figure 6), ensuring that the 4 silent-blocks

are correctly placed between the base and the wall.

INSTALLATION

Figure 1.

Figure 2.

Figure 3.

Figure 4.

Figure 5.

Figure 6.
