• Connect the electrical cables to the hand dryer’s terminal strip. Connect the cables

corresponding to the two phases (N and L) and to earth in the corresponding sockets of

the terminal strip, as indicated by the engraved letters (Figure 7).

• During this process of fitting the casing to the base take care not to damage the electronic

circuit that is below the hand dryer’s nozzle (Figure 11).

• It is also very important to ensure that once mounted and screwed to the base the casing

has the plastic protector correctly placed on the lower inverted “U” shaped window (Figure

12).

NOTE: contemplate a minimum distance of 400 mm (15,80”) away from ledges, marble tops

or wash basins (Figure 13). Avoid as much as possible the presence of reflecting surfaces

within the area of the hand dryer’s IR sensor.

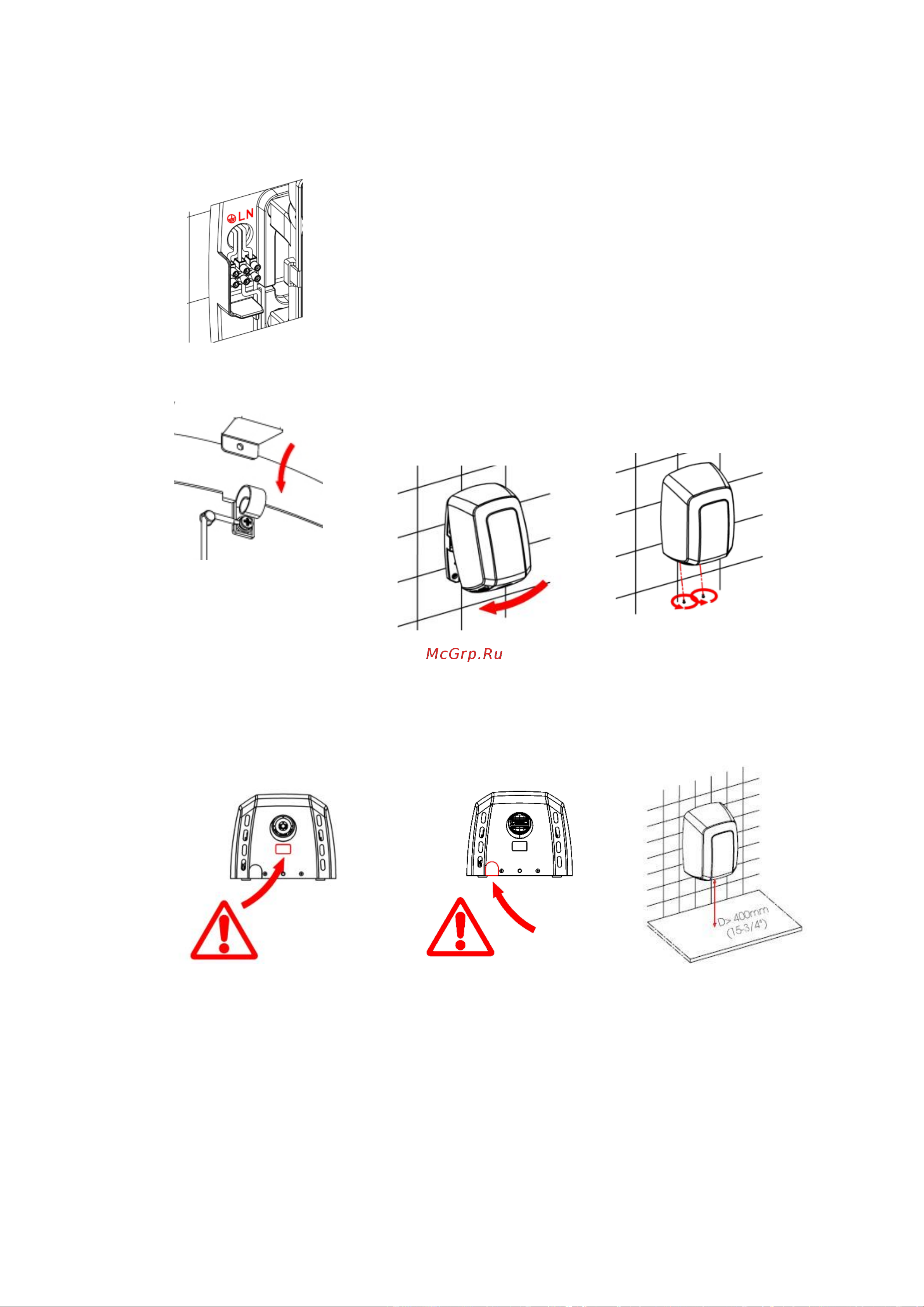

Figure 7.

• When making these connections contemplate means for

disconnecting from the power grid with a minimum contact

separation of at least 3 mm (0,12”) for all poles. These

disconnection means must be incorporated into the fixed

installation.

• The hand dryer must be installed against a solid surface only (wall,

partition, or similar).

• Carefully place the casing on the base of the device. To do so place

it over the base with a slight incline from top to bottom, in such a

way that the tab in the casing correctly inserts into the

corresponding slot in the base (Figures 8 and nº 9).

• Place the screws for fixing the casing to the base, fixing them tightly

using the special spanner provided (Figure 10).

Figure 8.

Figure 9.

Figure 10.

Figure 11.

Figure 12.

Figure 13.
