10
Figure (5)
Hardware revision: noted the version of the hardware.
BIOS revision: noted the version of the BIOS.
Firmware revision: noted the version of the firmware.
Change Password: the changing of the admit password.
Confirm Password: to confirm the setting of admit password.
System Name: to authorize the device system name.
Location: to show the device where it is located.
Refresh time: to set the refreshing time of the device through
the web.
1-2-2 General Configuration

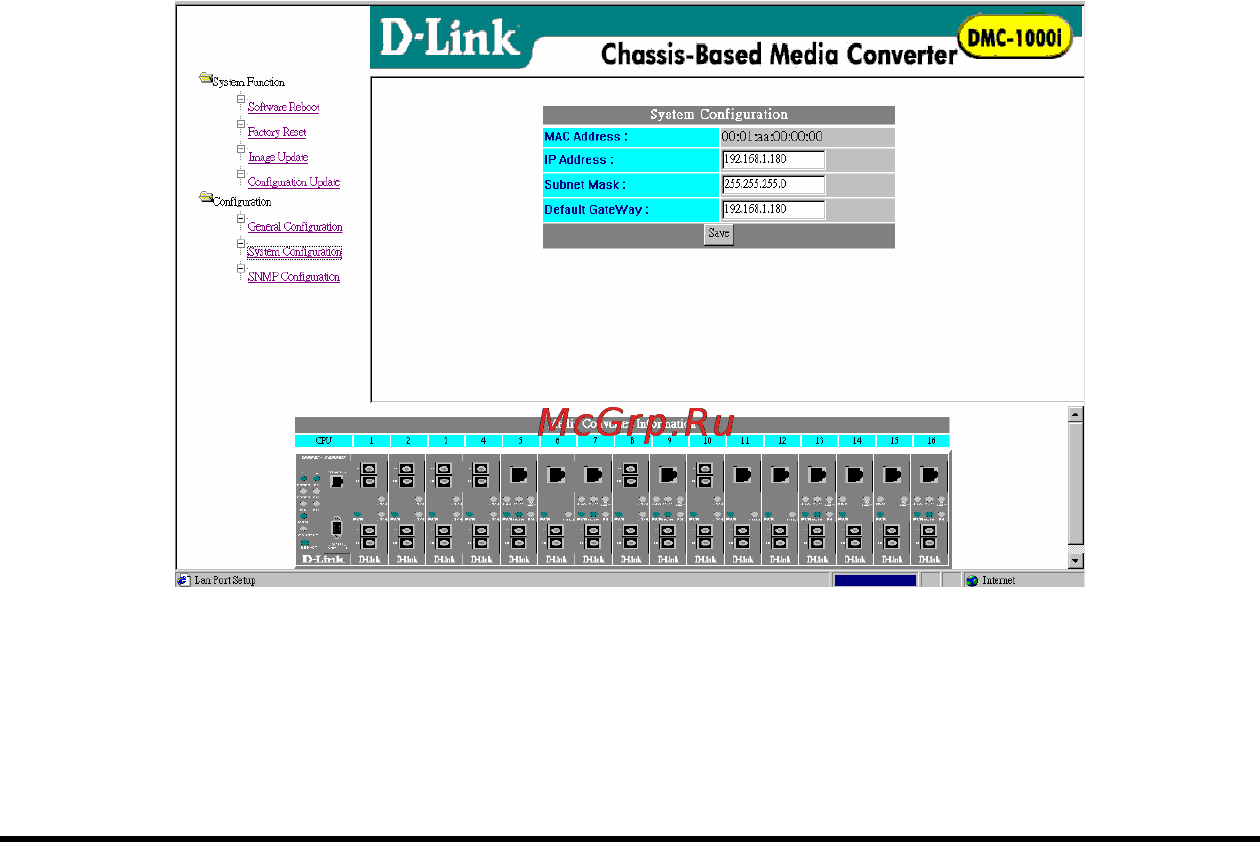

Figure (6)
MAC Address: will show out the MAC address of the device.
IP Address: to allocate an IP address for the device, the
