- 17 -
2-7 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
8
5 119
10
2
6
14
1
7
3
15

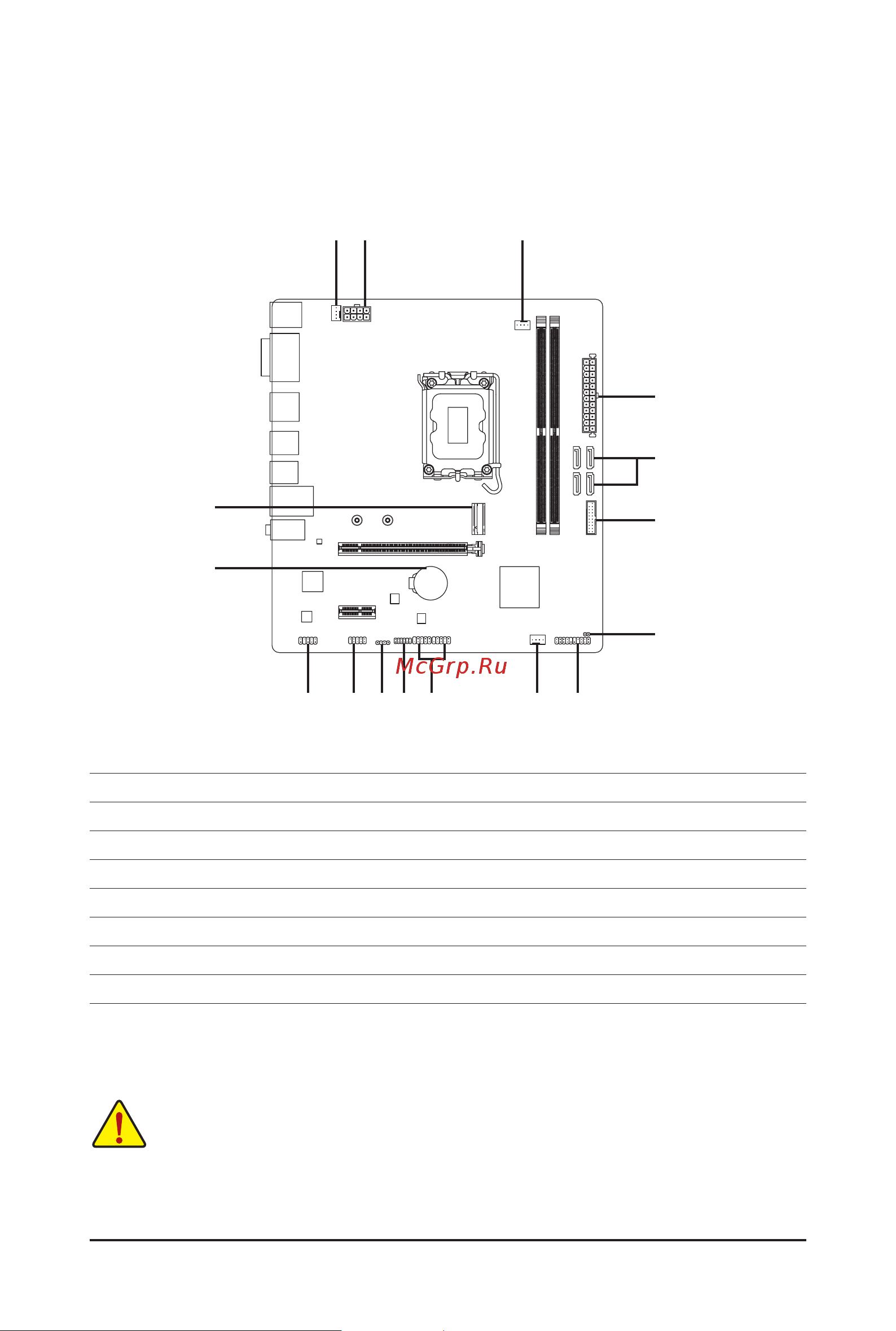

1) ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN1/SYS_FAN2
5) LED_C
6) SATA3 4/5/6/7
7) M2P_SB
8) F_PANEL
9) F_AUDIO
10) F_U32
11) F_USB1/F_USB2
12) COM
13) SPI_TPM
14) CLR_CMOS
15) BAT
4
4
12 13
