AIR-CONDITIONING WITH INSTALLATION

If required, your appliance can also be installed stationary (Fig. 11).

Proceed as follows:

1. Drill in an outside wall or in the window a 134 mm diameter hole. Keep in mind the

heights shown in fig. 12.

2. Fit the flange accessory provided in the hole following the indications on figs.13,14,15.

3. Fit the hose in the housing at the back of the device (Fig. 7).

4. Fit the end of the hose to the flange as shown in fig. 12. When the hose is not fitted, the

hole can be closed with the flange cap.

Keep the air hose as short and free of curves as possible to avoid bottlenecks.

When installing the air conditioner stationary, you should leave a door slightly open (as little as 1

cm) to guarantee correct ventilation.

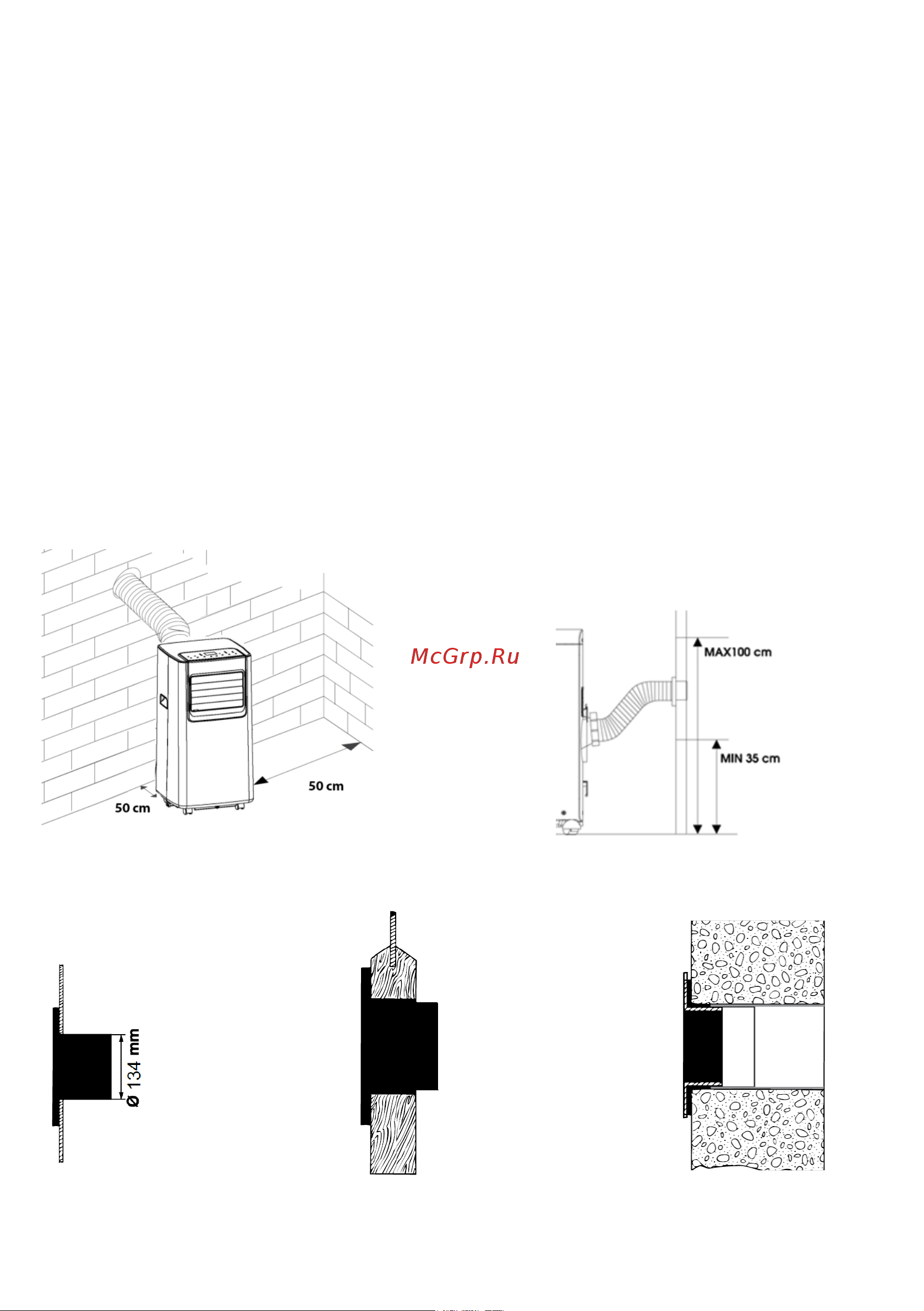

Fig. 11 Fig. 12

Fig. 13 Fig. 14 Fig. 15
