5. Installation Procedure

Make sure to follow the steps below to install the mounting bracket. If you ignore these steps, the mounting

bracket could fall and cause personal injury or property damage.

A Install the wall plate on the wall

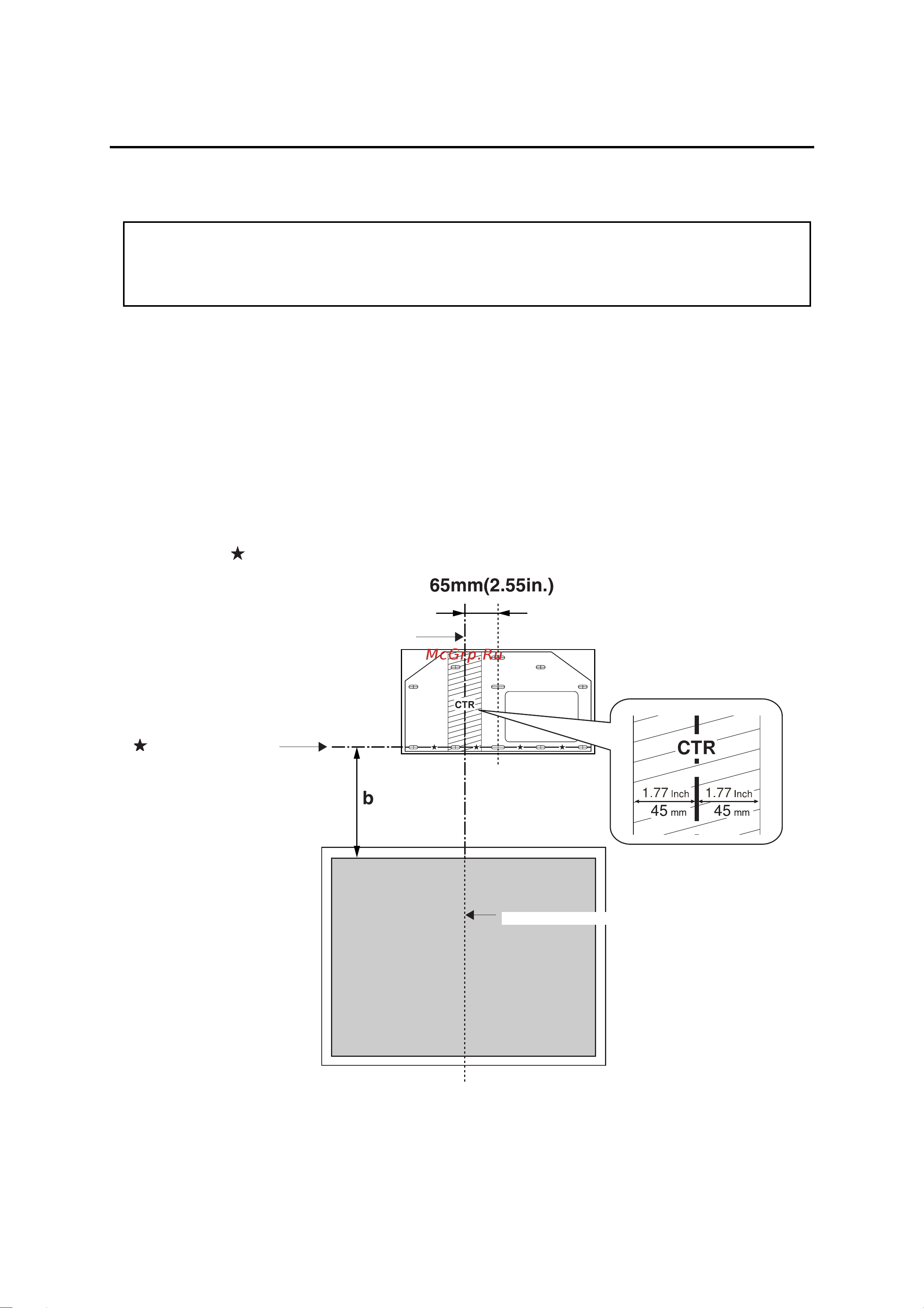

(1) Determine the template sheet position.

• From the projection distance table, confirm the screen size (S) and the distance between the

projection surface and wall plate (b).

• Align the CTR line (vertical) of the template sheet with the center line (vertical) of the projection

surface.

Confirm where the beams are within the wall, and shift the position left or right as necessary.

(The position can be shifted horizontally left or right from the center line of the projection surface by

up to 45 mm [1.77 in.].)

Align the line (horizontal) of the template with the height of (b).

(2) Attach the template sheet to the wall.

The maximum combined mass of the mounting bracket and the projector is approximately 15.2

kg (33.5 lb). When you install the mounting bracket, calculate the permissible weight, carefully

check the construction, material, and strength of the wall, and perform the installation properly

using the most appropriate method.

Center line of projection surface

CTR line of template sheet

line of template sheet

65 mm (2.55 in.)
