English

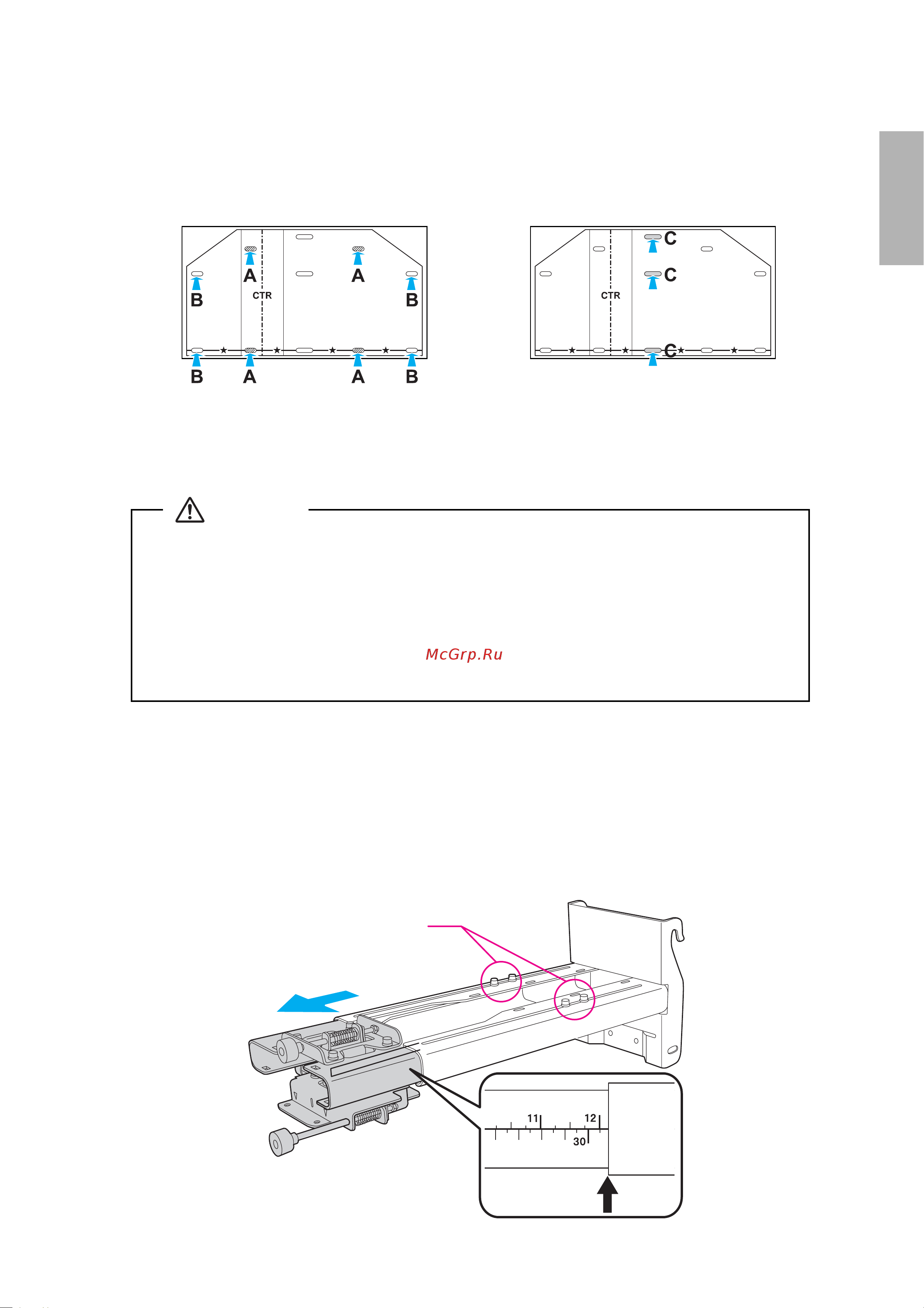

(3) Make mounting holes in the wall in the required locations.

The wall plate needs to be secured by commercially available anchors or lag bolts in the following

places. It is recommended that the wall plate be secured in at least three places.

• If securing the wall plate in four places, make the holes indicated by A or B in the figure.

• If securing the wall plate in three places, make the holes indicated by C in the figure.

(4) Remove the template sheet.

(5) Mount the wall plate on the wall.

B Determine the projection distance and pull out the slider

(1) From the projection distance table, calculate the distance (a) from the projection surface to

the front of the projector.

(2) Loosen the four screws and pull out the slider on the mounting bracket.

Align the slider with the mark slider measure that is a distance (a+x) equivalent to the distance (a) plus

the thickness of the projection screen (x).

Four mounting holes

Three mounting holes

❏ When you mount the projector on the wall with the mounting bracket, the wall needs to be

strong enough to hold the projector and the mounting bracket. Confirm the mass of the

projector and the mounting bracket before installation, and maintain the strength of the

wall. If the wall is not strong enough, reinforce the wall before installation.

❏ Install the mounting bracket so that it can sufficiently support the mass of the projector

and mounting bracket, and resist any horizontal vibration. Use M8 nuts and bolts. Nuts

and bolts smaller than M8 could cause the mounting bracket to fall.

❏ Epson takes no responsibility for any damage or injury caused by incorrect installation.

Warning

a+X

Screws (4 )

Slider measure
