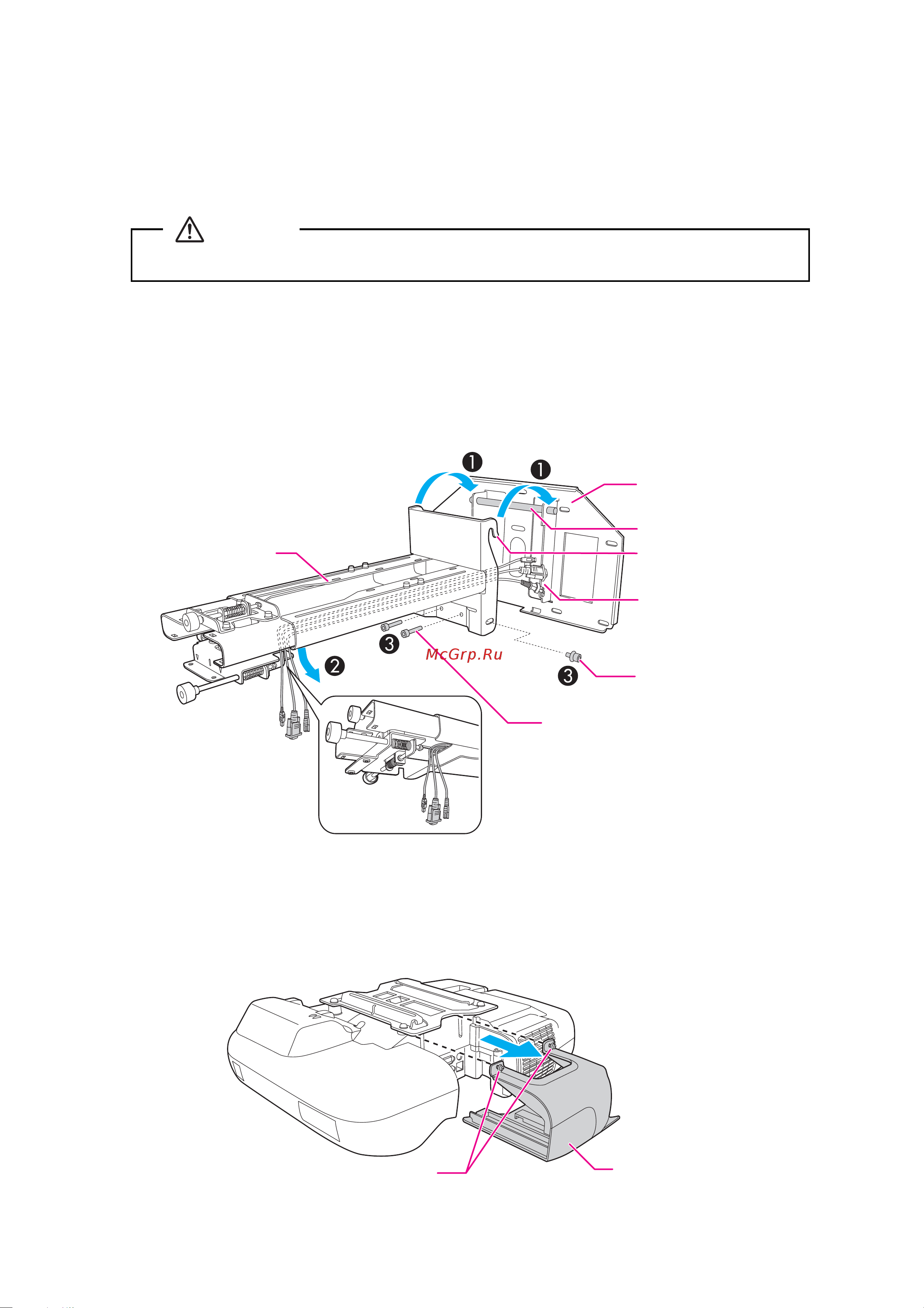

C Attach the mounting bracket to the wall plate

(1) Hang the mounting bracket hook onto the wall plate bar (A).

(2) Lift up the mounting bracket and pass the cables through it (

B).

(3) Tighten the two M8 x 15 mm hexagon socket head cap bolts and two M8 x 35 mm hexagon

socket head cap bolts supplied with the mounting bracket so that the mounting bracket

becomes horizontal (

C).

Use the two M8 x 35 mm hexagon socket head cap bolts to adjust the vertical slide.

s p. 17

D Secure the projector to the mounting bracket

(1) Loosen the two screws and remove the cable cover from the projector.

Take care not to trap the cables between the mounting bracket and wall plate.

Caution

Mounting bracket

Cables

Wall plate

M8 x 15 mm hexagon socket

head cap bolts (one on left

and one on right)

Wall plate bar

M8 x 35 mm hexagon

socket head cap bolts (2)

Mounting bracket hook

Cable cover

Screws (2)
