1. Package Contents

Use the bolts supplied with the mounting bracket to install it, as directed in this guide. Do not substitute

these bolts with any other types.

Use commercially available M8 x 50 mm anchors (at least 3) or 8 x 80 mm lag bolts (at least 3) to attach the

wall plate to the wall.

Gather the tools and parts you need before you begin installation.

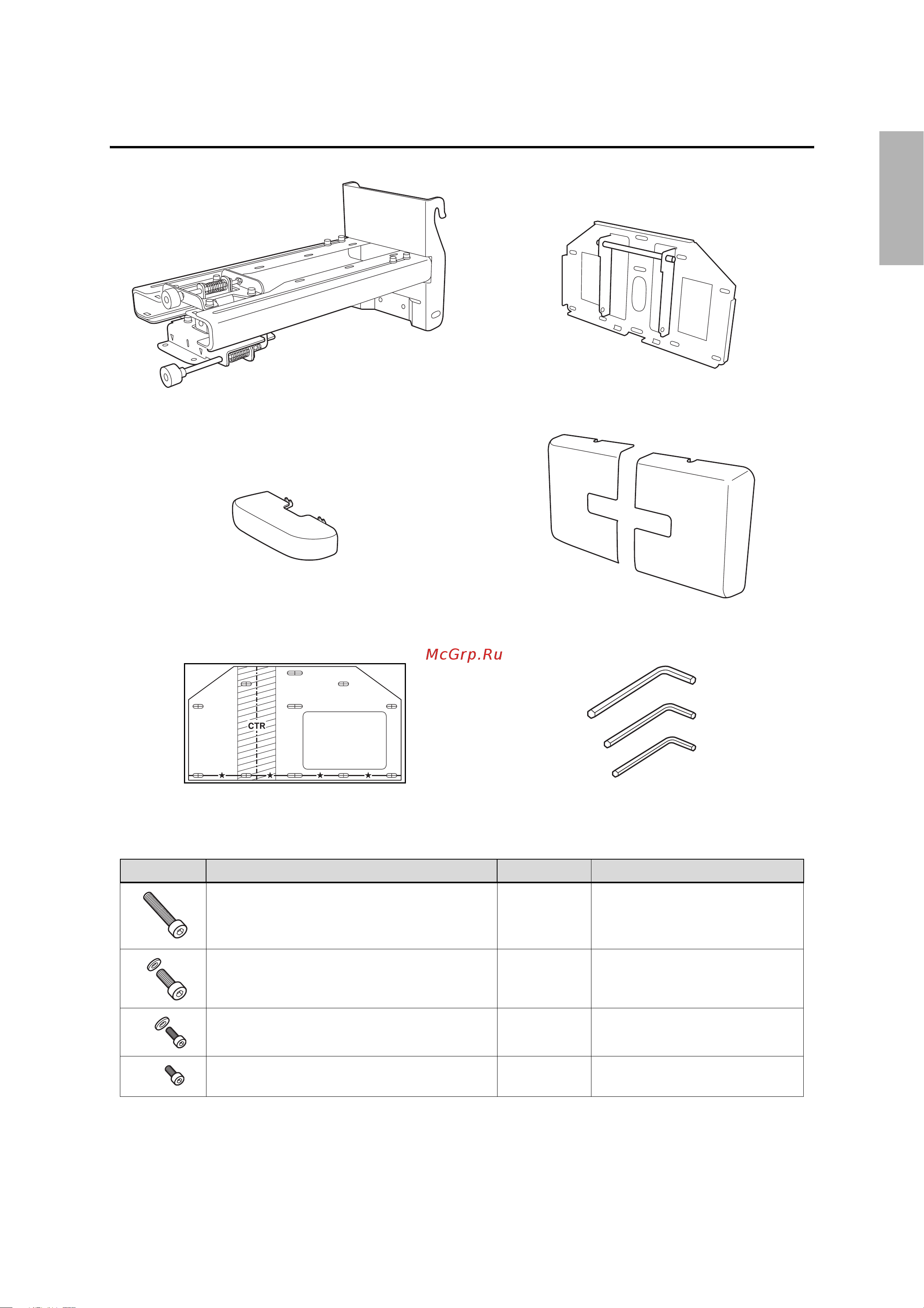

Shape Name Quantity Application

M8 x 35 mm hexagon socket head cap bolt without

washer

2 For installing/adjusting mounting

bracket

M8 x 15 mm hexagon socket head cap bolt with

washer

2 For installing mounting bracket

M5 x 12 mm hexagon socket head cap bolt with

washer

2 For securing projector

M4 x 12 mm hexagon socket head cap bolt without

washer

2 For installing wall plate cover

Hexagon wrenches (for M4, M5, and M8)

Wall plate cover

Mounting bracket

Template sheet

(for installing the wall plate)

End cap

Wall plate
